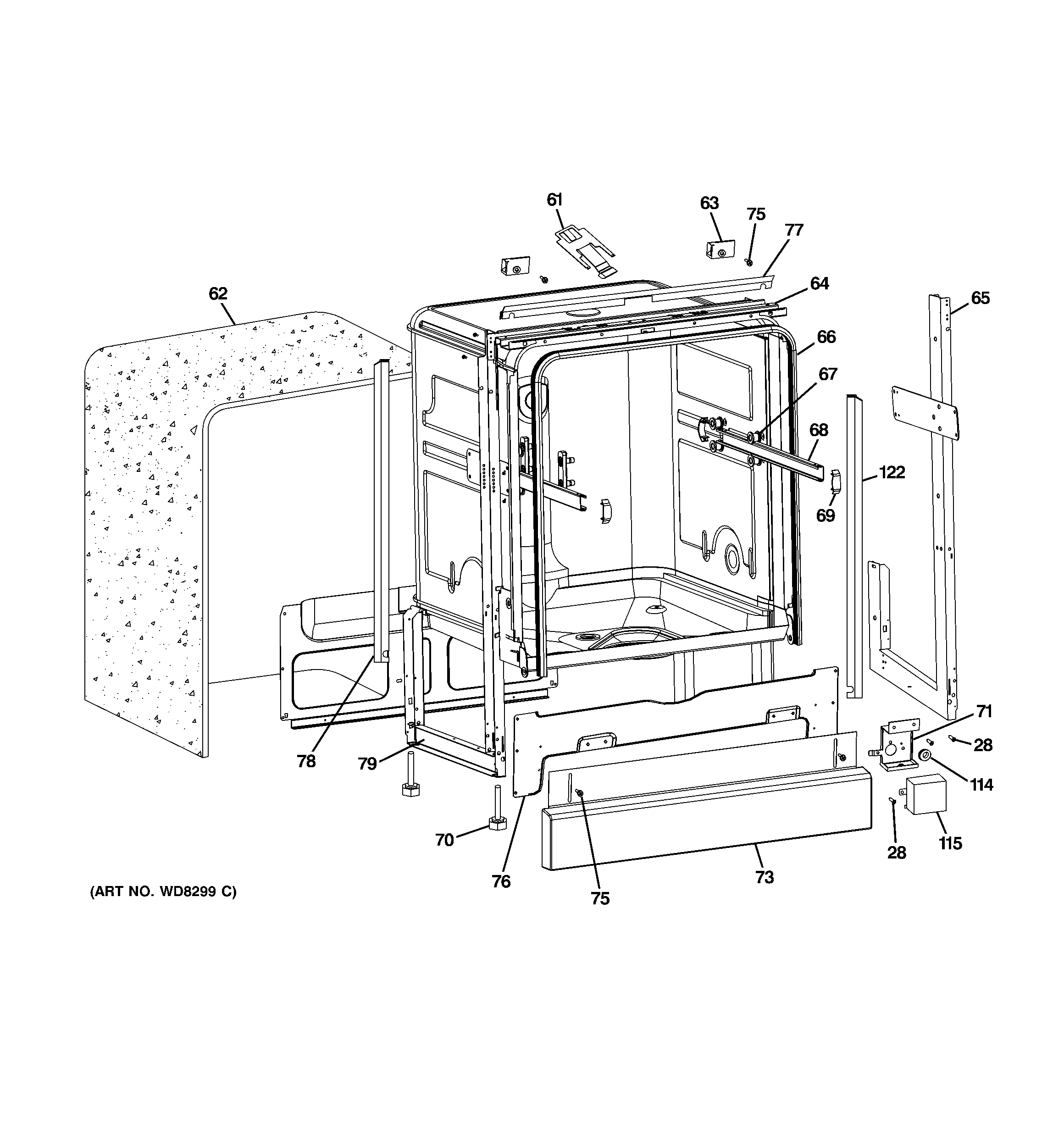

GLDA690P01BB BODY PARTS

GLDA690P01BB BODY PARTS

Written by

in

GLDA690P01BB BODY PARTS

Products

PositionProduct
28WD02X10120 GE Dishwasher Screw
61WD13X10035 GE Dishwasher Door Strike
62WD01X10313 GE Dishwasher Tub Insulation
63WD01X10314 GE Dishwasher Hook, Black
63WD01X10329 GE Hook
64GEN WD30X10027
64WD30X10024 GE Dishwasher Upper Front Brace BK
65GEN WD27X10240
66TUB GASKET
67GEN WD12X10221
68GEN WD30X10022
69WD12X23617 GE Dishwasher Rack Stop Clip
70GEN WD02X10134
71WD12X10223 GE Dishwasher Junction Box Bracket
73WD27X10215 GE Dishwasher Toekick Black
73WD27X10216 GE Dishwasher Toe Kick White
75WD02X10136 GE Screw
76WD01X10315 GE Dishwasher Lower Front Brace
77WD08X10069 GE Dishwasher Top Trim White
77GEN WD08X10064
78GEN WD08X10065
78WD08X10070 GE Dishwasher Left Side Trim
79WD27X10239 GE Dishwasher Right Upright Assembly
114WD01X10328 GE Junction Guard Ring
115WD12X10229 GE Dishwasher Junction Box Cover
122GEN WD08X10066
122GEN WD08X10071
