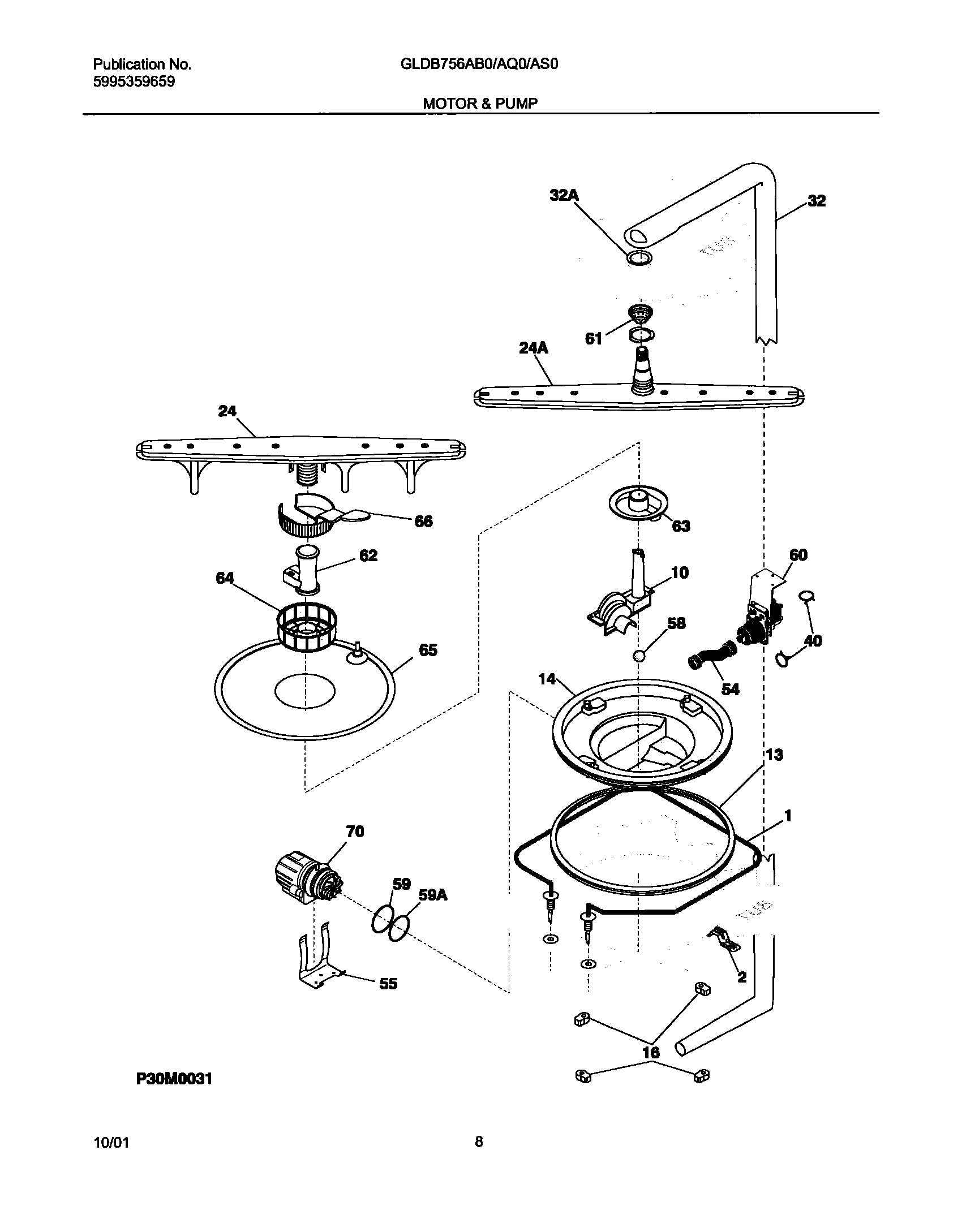

GLDB756AB0 09 – MOTOR & PUMP

Products

PositionProduct
NIWCI 154338601
NIBRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
NI154106202 Frigidaire Dishwasher Heater Nut
NI154289801 Frigidaire Dishwasher Shield
NI154611101 Frigidaire Dishwasher Clamp
NIWCI 5303316032
NIWCI 154200601
1154665201 Frigidaire Dishwasher Heater
2WCI 154359701
10807145201 Frigidaire Dishwasher Cover-Volute
13154246801 Frigidaire Dishwasher Primary Gasket
14WCI 154365902
16154246502 Frigidaire Dishwasher Bracket
24A154313601 Frigidaire Dishwasher Control Arm P1
245304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
24AWCI 154252001
32WCI 154251701
32A154406401 Frigidaire Delivery Tube Gasket
40WCI 154348501
40154348401 Frigidaire Dishwasher Clamp
54154234401 Frigidaire Dishwasher Hose P-1
555304534830 Frigidaire Dishwasher Bracket
58154246402 Frigidaire Dishwasher P-1 BALL
59154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
59A154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
60WCI 154247502
61WCI 154359601
625304518968 Frigidaire Lower Spray Arm Support
635304506533 Frigidaire Dishwasher Filter Base
655304506525 Frigidaire Dishwasher Filter Assembly
66154252701 Frigidaire Dishwasher Filter Trap Assembly
70MOTOR KIT W HARNESS
