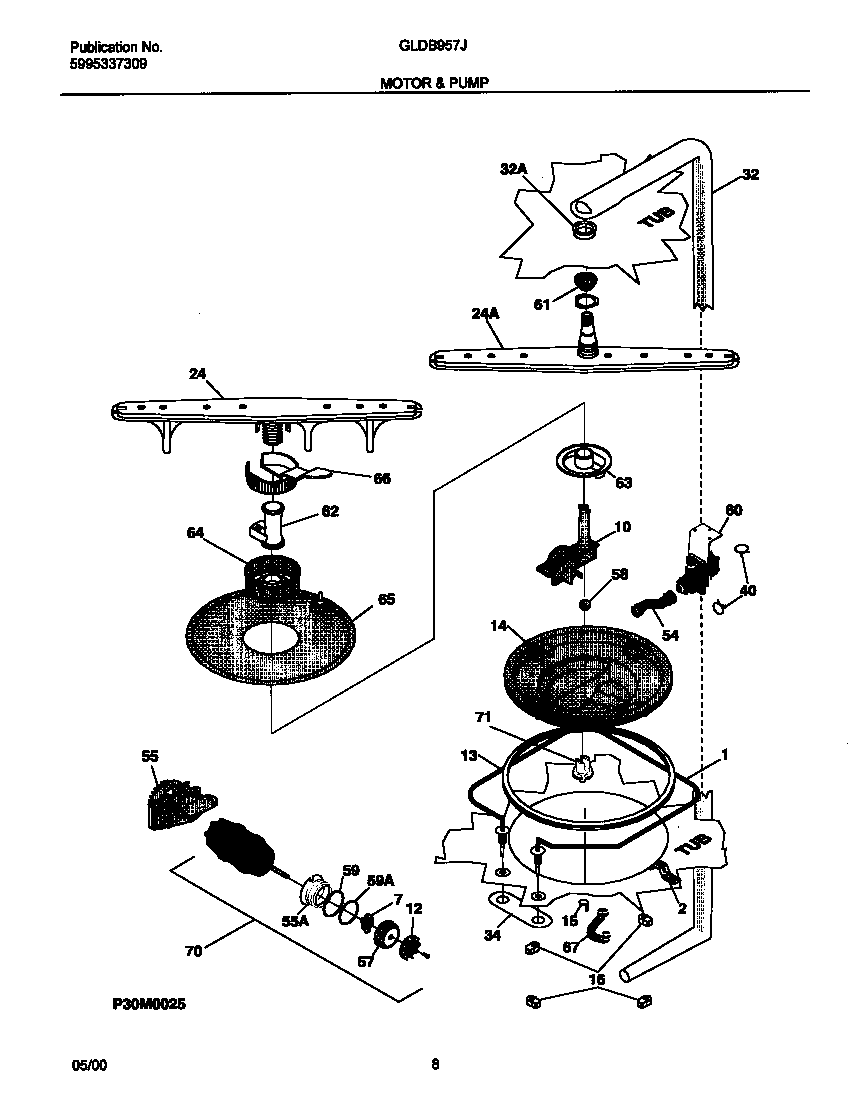

GLDB957JB0 05 – MOTOR

GLDB957JB0 05 – MOTOR

Written by

in

GLDB957JB0 05 – MOTOR

Products

PositionProduct
*05139BRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
*05140WCI 154376001
*05135SCREW, SS IMPELLER (NOT ILLUSTRATED)
*05136154611101 Frigidaire Dishwasher Clamp
*05137WCI 5303316032
*05133154106202 Frigidaire Dishwasher Heater Nut
*05138WCI 154246101
*05134154289801 Frigidaire Dishwasher Shield
*05141WCI 154338601
1154665201 Frigidaire Dishwasher Heater
2WCI 154359701
7WCI 154245901
10807145201 Frigidaire Dishwasher Cover-Volute
12WCI 154245801
13154246801 Frigidaire Dishwasher Primary Gasket
14WCI 154365901
15WCI 154246701
16154246502 Frigidaire Dishwasher Bracket
245304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
24A154313601 Frigidaire Dishwasher Control Arm P1
24BWCI 154252001
32154406401 Frigidaire Delivery Tube Gasket
32WCI 154251701
34WCI 154064901
40A154348401 Frigidaire Dishwasher Clamp
40BWCI 154348501
54154234401 Frigidaire Dishwasher Hose P-1
55WCI 154246201
55WCI 154325701
57WCI 154246001
58154246402 Frigidaire Dishwasher P-1 BALL
59154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
59154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
60WCI 154247502
61WCI 154359601
625304518968 Frigidaire Lower Spray Arm Support
635304506533 Frigidaire Dishwasher Filter Base
65WCI 154283004
66154252701 Frigidaire Dishwasher Filter Trap Assembly
67WCI 154246601
70MOTOR & PUMP ASSY,INCLUDES 7, 12 , 55A, 57, 59,,59A
71WCI 154366101
