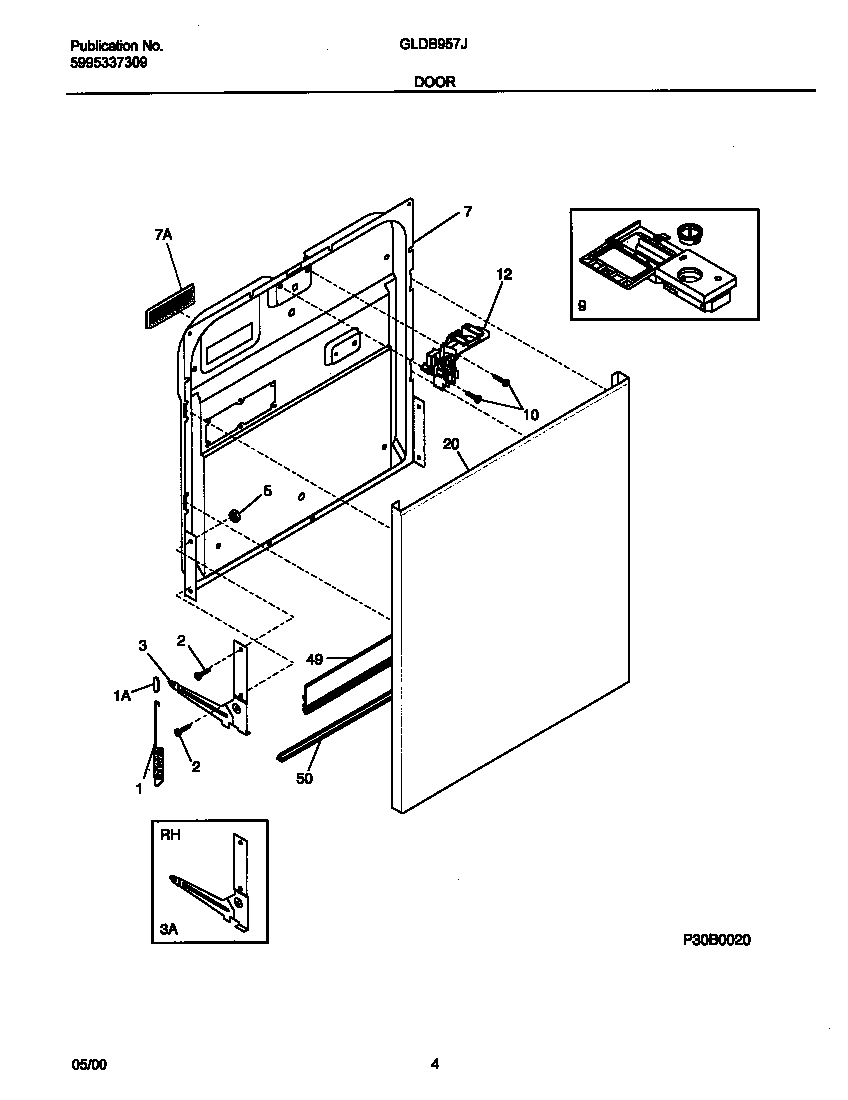

GLDB957JS0 03 – DOOR

GLDB957JS0 03 – DOOR

Written by

in

GLDB957JS0 03 – DOOR

Products

PositionProduct
*05125154294701 Frigidaire Dishwasher Screw
*05124PIN-ARM (NOT ILLUSTRATED)
*05128WCI 154320301
*05127INSULATION,DOOR
*05126154753101 Frigidaire Dishwasher Thermistor
1154430601 Frigidaire Dishwasher Door Spring
1154325201 Frigidaire Linkage Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
35304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154226601
7WCI 154299002
9154574401 Frigidaire Dishwasher Dispenser
10SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154359001
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
