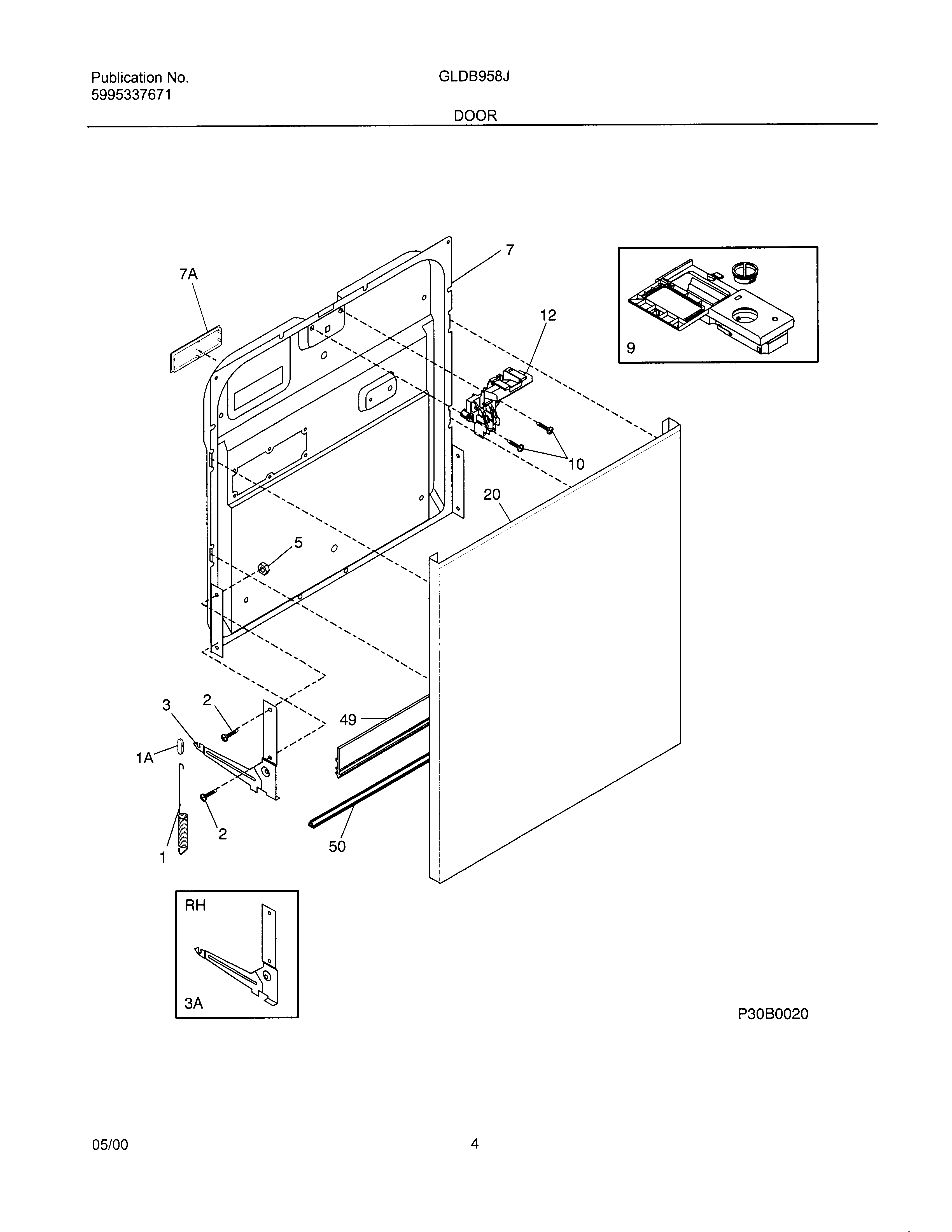

| NI | PIN-ARM (NOT ILLUSTRATED) |
| NI | WCI 154320301 |
| NI | INSULATION,DOOR |
| 1 | 154430601 Frigidaire Dishwasher Door Spring |
| 1A | 154325201 Frigidaire Linkage Spring |
| 2 | 154093301 Frigidaire Dishwasher ARM Assembly Screw |
| 3A | 5304409912 Frigidaire Dishwasher P-1 Right Hinge |
| 5 | 5303013272 Frigidaire Oven Nut |
| 7 | WCI 154299002 |
| 7A | WCI 154226601 |
| 9 | WCI 154230102 |
| 10 | 154103702 Frigidaire Dishwasher Screw |
| 12 | 5304442175 Frigidaire Black Door Latch Assembly |
| 20 | WCI 154359001 |
| 49 | 809006501 Frigidaire Bottom Seal/Gasket Door |
| 50 | WCI 154211401 |
