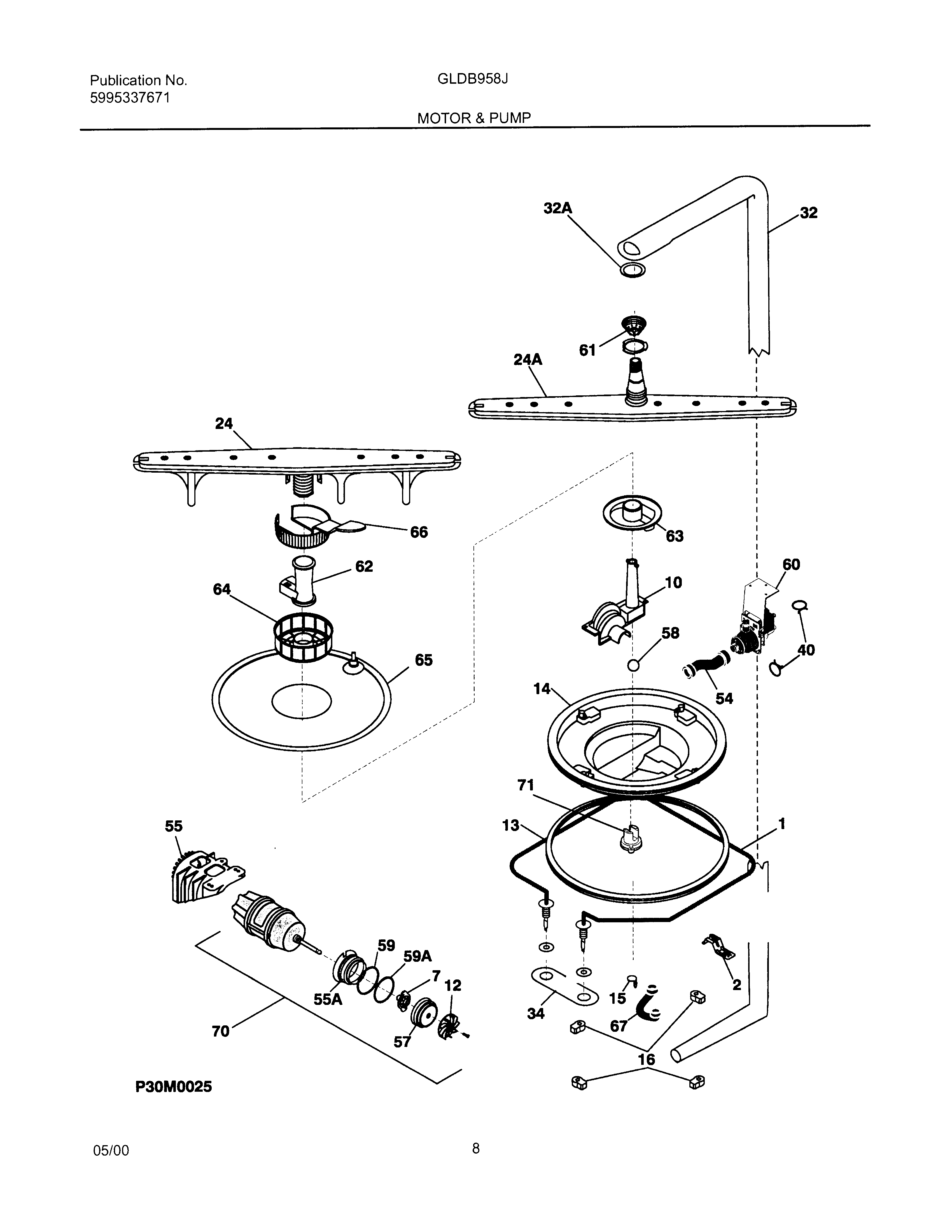

GLDB958JS0 09 – MOTOR & PUMP

Products

Position	Product
NI	WCI 154338601
1	154106202 Frigidaire Dishwasher Heater Nut
1	154289801 Frigidaire Dishwasher Shield
1	154665201 Frigidaire Dishwasher Heater
2	WCI 154359701
7	WCI 154245901
10	807145201 Frigidaire Dishwasher Cover-Volute
12	WCI 154245801
12	SCREW, SS IMPELLER (NOT ILLUSTRATED)
13	154246801 Frigidaire Dishwasher Primary Gasket
14	WCI 154365901
15	WCI 154246701
16	154246502 Frigidaire Dishwasher Bracket
24	5304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
24A	WCI 154252001
24A	154313601 Frigidaire Dishwasher Control Arm P1
32A	154406401 Frigidaire Delivery Tube Gasket
32	WCI 154251701
34	WCI 154064901
40	154611101 Frigidaire Dishwasher Clamp
40	154348401 Frigidaire Dishwasher Clamp
40	WCI 154348501
54	154234401 Frigidaire Dishwasher Hose P-1
55	WCI 154325701
55	WCI 5303316032
55A	WCI 154246201
57	WCI 154246001
57	WCI 154246101
58	154246402 Frigidaire Dishwasher P-1 BALL
59	154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
59A	154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
60	WCI 154247502
60	BRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
61	WCI 154359601
62	5304518968 Frigidaire Lower Spray Arm Support
63	5304506533 Frigidaire Dishwasher Filter Base
65	WCI 154283004
66	154252701 Frigidaire Dishwasher Filter Trap Assembly
67	WCI 154246601
70	MOTOR & PUMP ASSY,INCLUDES 7, 12 , 55A, 57, 59,,59A
71	WCI 154376001
71	WCI 154366101
