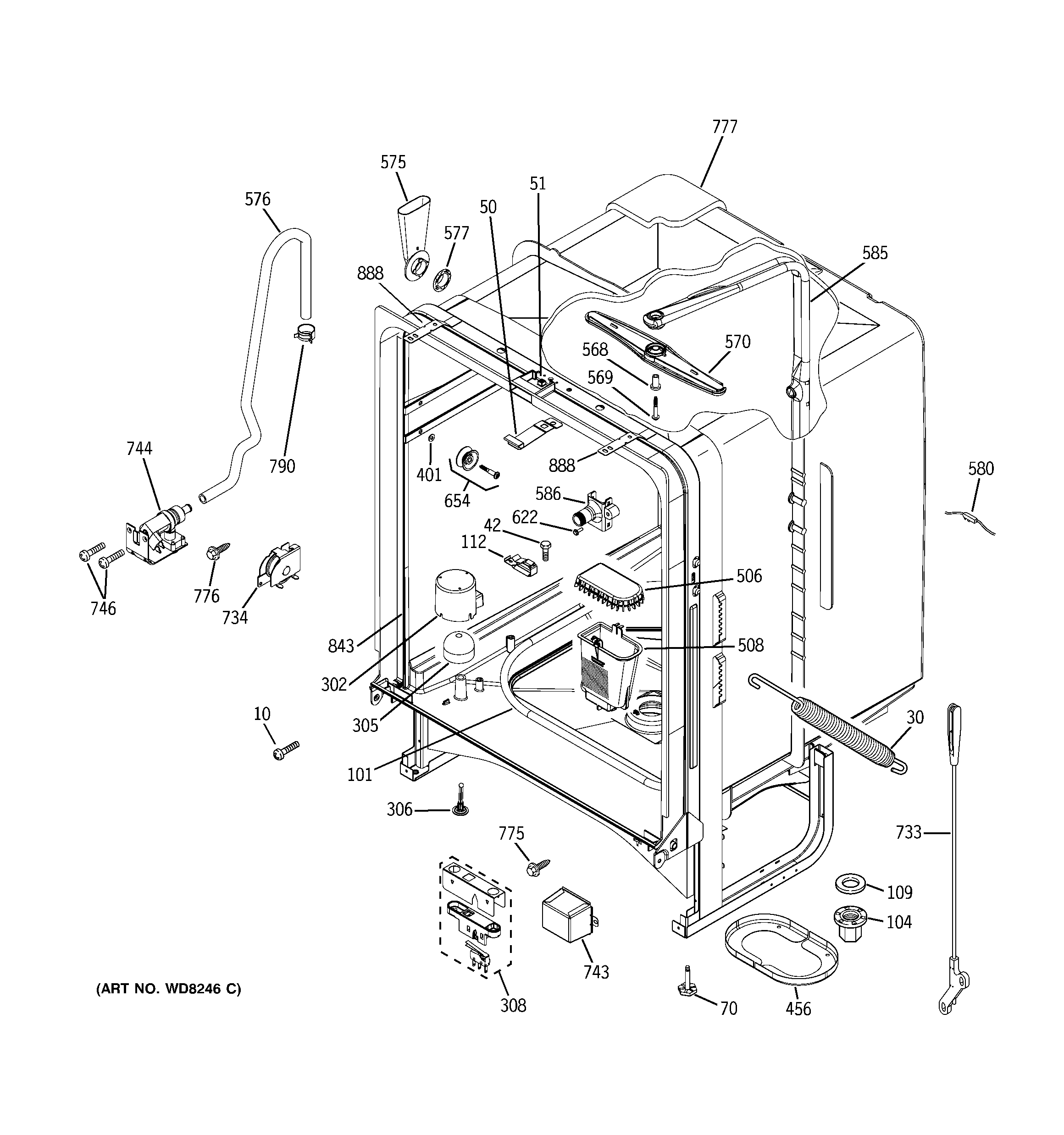

GLDL500N10WW BODY PARTS

GLDL500N10WW BODY PARTS

Written by

in

GLDL500N10WW BODY PARTS

Products

PositionProduct
10WR01X10065 GE Screw
30GEN WD03X10014
42SCREW #8-3/4 L HX HD SS
50GEN WD13X10019
51WD02X10066 GE Dishwasher Screw 10-24 x 1/2 TT TRR S
70WD2X320 GE Dishwasher Leveling Leg
101GEN WD05X10005
104GEN WD01X10097
109GEN WD01X10094
112GEN WD01X10283
302WD12X10051 GE Dishwasher Float Dome C02
305WD12X10047 GE Dishwasher Float
306WD12X10048 GE Dishwasher Float Stem Assembly
308GEN WD21X10168
401WD3X767 GE Dishwasher Washer
456GEN WD01X10106
506WD22X10077 GE Dishwasher Sump and Cover Filter Assembly
568WD01X10410 GE Dishwasher Spray Arm Bearing Assembly
569GEN WD02X10068
570GEN WD22X10045
575WD12X22722 GE Dishwasher Fill Funnel
576GEN WD24X10026
577WD08X10020 GE Dishwasher Fill Funnel Gasket
580GEN WD21X10023
585GEN WD12X10057
586GEN WD12X10059
622WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
654WD12X332 GE Dishwasher Rack Roller
733GEN WD01X10348
734GEN WD16X10009
743WD12X448 GE Dishwasher Junction Box
744WD15X10003 GE Dishwasher Water Inlet Valve
746WD2X248 GE Dishwasher Screw
775WD2X5166 GE Dishwasher Screw
776GEN WZ05X0222
777WD30X28658 GE Dishwasher Tub Insulation Blanket
790WH1X2036 GE UNIX Clamp
843GASKET TUB
888WD35X10056 GE Dishwasher Center Bracket
