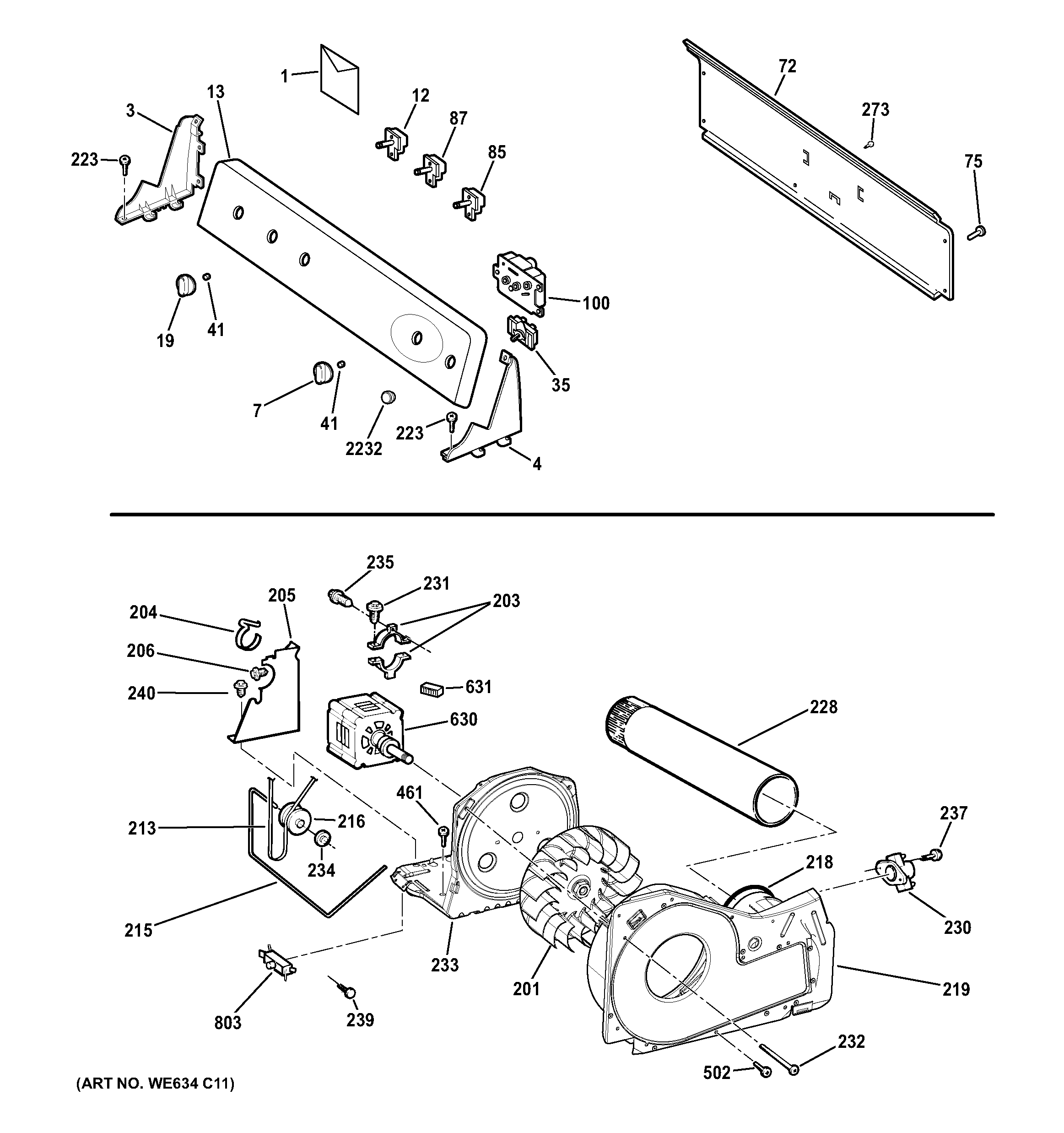

GLDP280ED1WS BACKSPLASH, BLOWER & DRIVE ASSEMBLY

GLDP280ED1WS BACKSPLASH, BLOWER & DRIVE ASSEMBLY

Written by

in

GLDP280ED1WS BACKSPLASH, BLOWER & DRIVE ASSEMBLY

Products

PositionProduct
1GEN 49-90407-1
1GEN 31-16165
1GEN 31-16224-2
3WE49X22294 GE Endcap Service Kit
4WE19X20467 GE Endcap Left Hand
7WE01X20376 GE Timer Knob Assembly
12GEN WE04X20556
13GEN WE19M1723
19WE01X20380 GE Washer Gray Timer Control Knob
35PUSH TO START SWITCH
41GEN WE1X980
72WE19M1481 GE Rear Panel
75WE2M173 GE Screw
85WE4M399 GE Rocker Switch
87WE4M407 GE Dryer Rotary Temperature Switch 4 Temperature
100WE04X20089 GE Washer Control Timer
201BLOWER WHEEL
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
206WE2M200 GE Ground Screw
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218WE09X27636 GE Exhaust Blower Gasket
219GEN WE14M199
223WE2M189 GE Screw
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233GEN WE13M65
234GEN WE2M96?
235WE2M307 GE Screw 10-16 X 1/2 AB
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
240WE1M280 GE Screw
273WE2M228 GE Ground Screw No. 8
461WZ5X158D GE Screw Package of 12
502WE2M174 GE Screw #10
630WE17X22217 GE Dryer Drive Motor with Pulley
631GEN WE1M650
803WD21X10261 GE Dishwasher Interlock Switch
2232WE1M659 GE Dryer Push-to-Start Button
