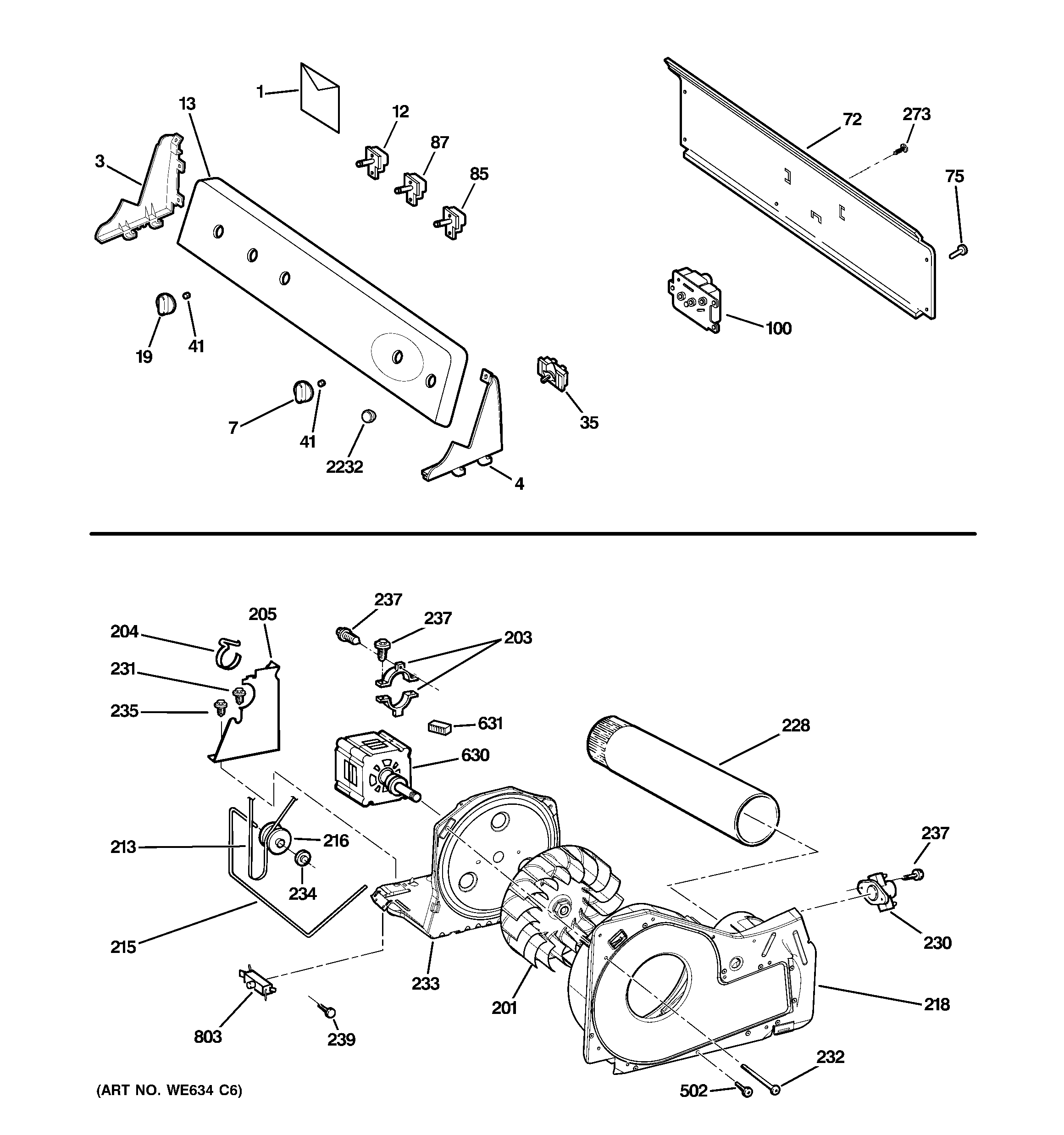

GLDP280GD0WS BACKSPLASH, BLOWER & MOTOR ASSEMBLY

GLDP280GD0WS BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

GLDP280GD0WS BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
1GEN 31-16184
1GEN 31-16225
1GEN 49-90407-1
3WE49X22294 GE Endcap Service Kit
4WE19X20467 GE Endcap Left Hand
7WE01X20376 GE Timer Knob Assembly
12GEN WE4M368
13GEN WE19M1723
19WE01X20380 GE Washer Gray Timer Control Knob
35PUSH TO START SWITCH
41GEN WE01X0980?
72WE19M1481 GE Rear Panel
75WE2M173 GE Screw
85WE4M399 GE Rocker Switch
87ROTARY SWITCH 4TEMP
100WE04X20089 GE Washer Control Timer
201BLOWER WHEEL
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
205WE2M200 GE Ground Screw
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218WE09X27636 GE Exhaust Blower Gasket
218GEN WE14M199
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233GEN WE13M51
234GEN WE2M96?
235WE2M307 GE Screw 10-16 X 1/2 AB
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
273GEN WE2M309
502WE2M174 GE Screw #10
502GEN WE2M209
630WE17X22217 GE Dryer Drive Motor with Pulley
631GEN WE1M650
803WD21X10261 GE Dishwasher Interlock Switch
2232WE1M659 GE Dryer Push-to-Start Button
