GLDS560ED1WW CABINET & FRONT PANEL

GLDS560ED1WW CABINET & FRONT PANEL

Written by

in

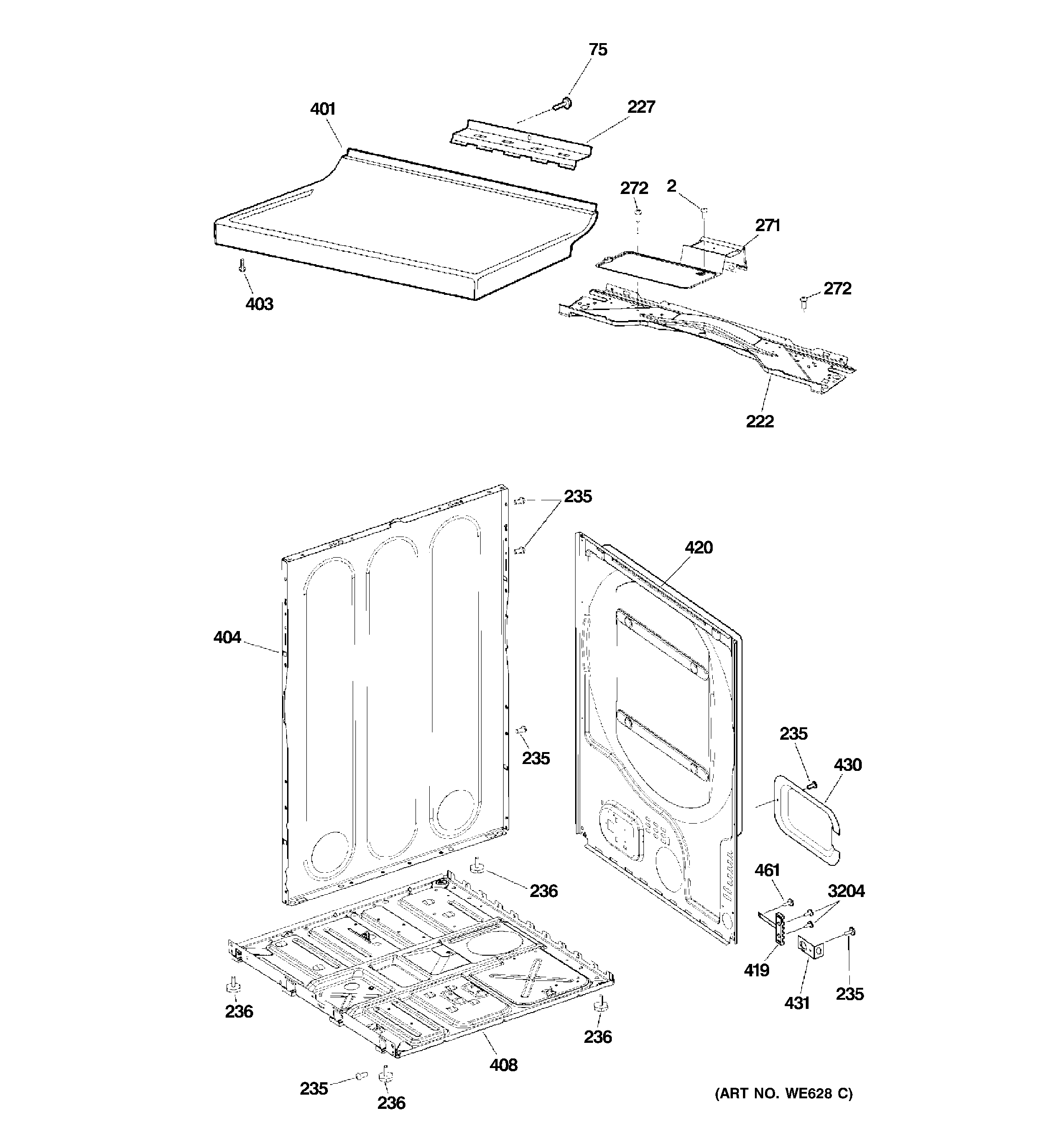

GLDS560ED1WW CABINET & FRONT PANEL

Products

PositionProduct
2GEN WE02X20422
75WE2M173 GE Screw
222GEN WE20M494
227WE1M723 GE Heat Shield Rear
235WE2M307 GE Screw 10-16 X 1/2 AB
236WE01X29357 GE Washer Levelling Leg
271SHIELD BOTTOM COVER
272GEN WE2M308
401WE20X20417 GE Cover White
403WE2M160 GE Screw
404GEN WE20M478
408GEN WE20M492
419WE4M325 GE Dryer Terminal Block and Ground Strap
420WE20X20559 GE Rear Panel
430WE1M1102 GE Washer Cover Terminal Block
431WE01X20423 GE Strain Relief Bracket
461WZ5X158D GE Screw Package of 12
3204WZ4X241D GE Screw Package
