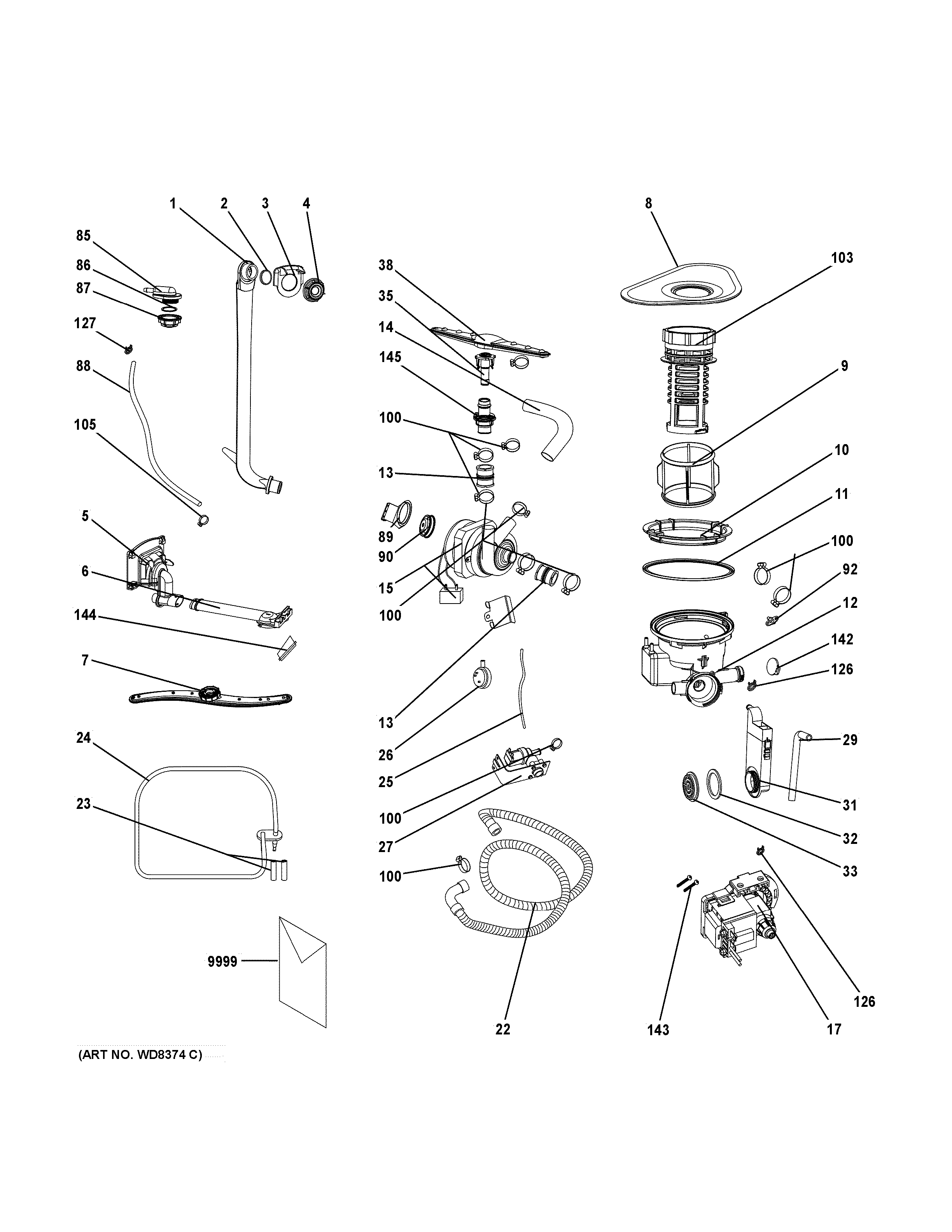

GLDT696T00SS MOTOR-PUMP MECHANISM

Products

Position	Product
1	GEN WD01X10305
2	GEN WD01X10240
3	WD01X10306 GE Dishwasher Guide Casing
4	WD02X23651 GE Gasket Ring Nut
5	WD12X23662 GE Dishwasher Spray Arm Connector Assembly
6	GEN WD12X10217
7	UPPER SPRAY ASM
8	GEN WD22X10051
9	MICROFILTER
10	WD02X23654 GE Dishwasher Sump Clamping Nut
11	WD08X23655 GE Dishwasher Sump Gasket
12	SUMP ASM
13	WD18X10036 GE Dishwasher ConnectingDuct & Clamps
14	WD24X10037 GE Dishwasher Pump Hose and Clamps
15	MOTOR ASM W/CLAMPS
17	WD26X10049 GE Dishwasher Drain Pump Assembly with Screws
22	DRAIN HOSE ASM
23	WD01X23643 GE Dishwasher Insulating Sleeve
24	GEN WD05X10008
25	WD24X10030 GE Dishwasher Pressure Switch Hose
26	WD21X10191 GE Dishwasher Pressure Switch
27	WD15X10009 GE Dishwasher Water Valve Assembly with Screws
29	WD24X10031 GE Dishwasher Fill Hose
31	WD12X10170 GE Dishwasher Fill Funnel
32	WD01X10243 GE Dishwasher O-Ring
33	WD01X10309 GE Dishwasher Ring Nut with Gasket
35	WD18X10041 GE Dishwasher Lower Spray Arm Axis
38	LOWER SPRAY ASM
85	GEN WD12X10224
86	GEN WD01X10317
87	WD12X10225 GE Dishwasher Sprinkler Nozzle
88	GEN WD24X10039
89	WD01X10318 GE Dishwasher Motor Support
90	GEN WD01X10319
92	WD21X23138 GE Dishwasher Sump Thermistor
100	GEN WD01X10322
103	WD12X10316 GE Dishwasher Cylindrical Filter
105	WD01X10324 GE Dishwasher Clamp 1/2"
126	WD01X10332 GE Dishwasher Squeeze Clamp
127	GEN WD01X10331
142	CLAMP CHK FLOW
143	WD02X10175 GE Screw St4 15.5
144	WD01X10436 GE Dishwasher Spray Arm Support Block
145	LWR SPRAYER CONNECT ASM
9999	PM MINI MANUAL
9999	PM MANUAL USE & CARE
