GLE12HSLARSS CABINET

GLE12HSLARSS CABINET

Written by

in

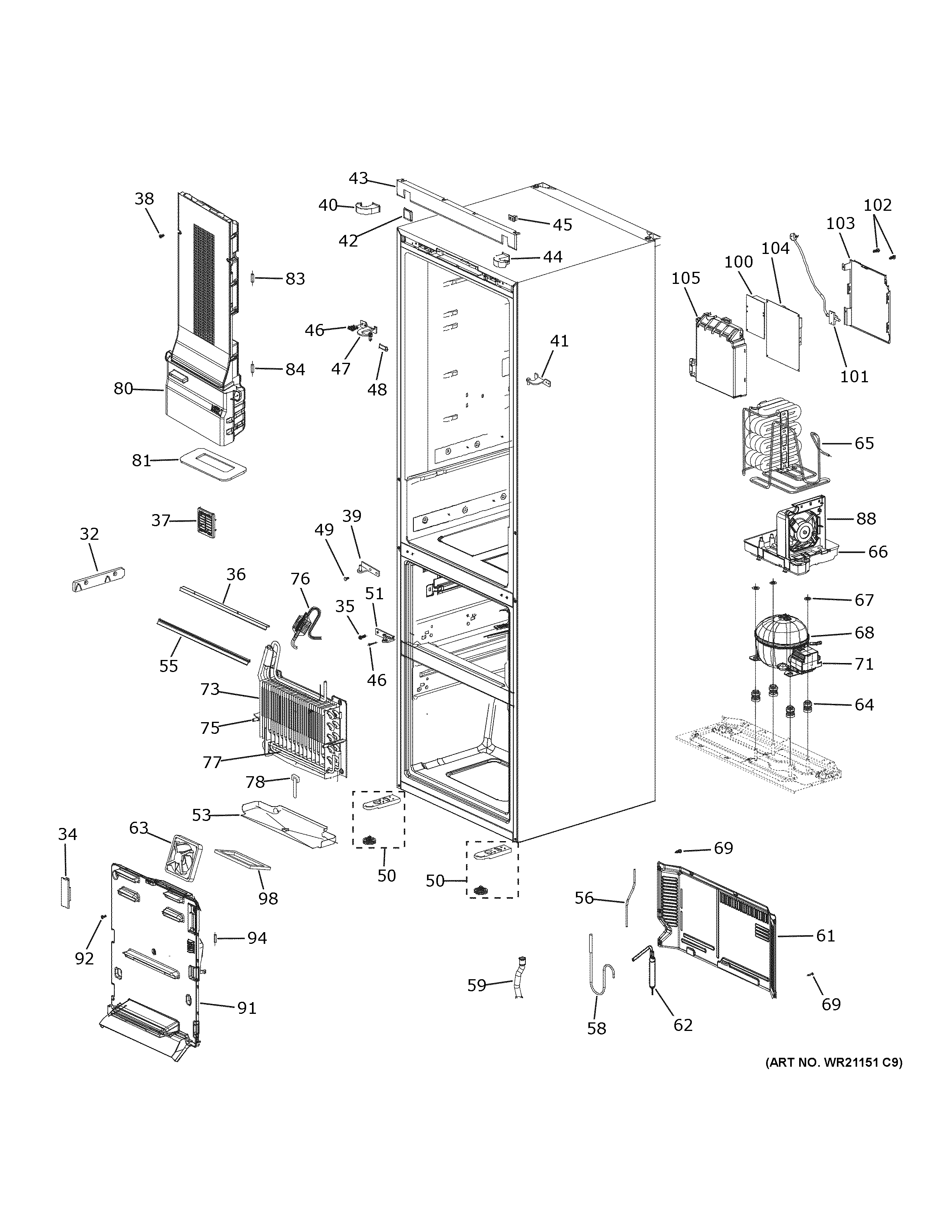

GLE12HSLARSS CABINET

Products

Position	Product
32	ICEMAKER SUPPORT
34	HARNESS COVER
35	WR01X28375 GE M5 x 16 Screw
36	FREEZER MULLION UPPER GASKET
37	FRESH FOOD AIR RETURN DUCT COVER
38	SCREW AIR TOWER
39	WR13X30970 GE Refrigerator Left Middle Hinge
40	WR13X28399 GE Refrigerator Left Hinge Cover
41	WR13X30971 GE Refrigerator Left Top Hinge & Pin
42	WR01X28367 GE Refrigerator Front Cap Insert
43	WR01X28369 GE Refrigerator Top Front Cap
44	WR13X28365 GE Right Hand Top Hinge Cover
45	WR55X28366 GE Refrigerator MagnetIC Reed Switch
46	WR01X27789 GE Refrigerator Screw ST3.5 x 9.5
47	WR13X28363 GE Refrigerator Top Hinge and Pin
48	WR01X28364 GE Refrigerator Front Cap Hinge Insert
49	WR01X28360 GE Refrigerator White Plug Button
50	WR01X28530 GE Refrigerator Leveling Leg
51	WR13X36165 GE Refrigerator Right Middle Hinge
53	DRAIN PAN
55	FREEZER MULLION LOWER GASKET
56	DISCHARGE TUBE
58	WR01X28373 GE Refrigerator Connecting Pipe
59	WR01X28354 GE Drain Tube
61	WR14X28355 GE Refrigerator Rear Access Cover
62	WR86X25269 GE Refrigerator R134 Dryer
63	WR60X29549 GE Refrigerator Freezer Fan
64	COMPRESSOR GROMMET
65	WR87X28624 GE Condenser
66	AUXILIARY CONDENSER DRAIN PAN
67	COMPRESSOR CLIP
68	WR87X28348 GE Refrigerator Compressor
69	SCREW M4 X 8
71	WR55X28370 GE Refrigerator Inverter Board
73	WR87X28356 GE Evaporator
75	WR55X28357 GE Thermal Fuse
76	WR55X28338 GE Refrigerator Evaporator Thermistor
77	WR87X28340 GE Refrigerator Defrost Heater
78	WR02X44465 GE Heat Probe Washer
80	WR14X28334 GE Refrigerator Fresh Food Air Tower
81	WR14X28336 GE Fresh Food Air Tower Gasket
83	WR55X28330 GE Refrigerator Upper Fresh Food Thermistor
84	WR55X28332 GE Refrigerator Lower Fresh Food Thermistor
88	CONDENSER FAN
91	WR14X28327 GE Refrigerator Evaporator Cover
92	WR01X28345 GE Screw
94	WR55X28347 GE Refrigerator Freezer Thermistor
98	FREEZER TRANSITION GASKET
100	WR55X33545 GE Refrigerator Power Supply Board
101	WR55X28528 GE Refrigerator Power Cord
102	SCREW Y-HEAD
103	MAIN BOARD COVER
104	WR55X33809 GE Refrigerator Main Board
105	WR13X28384 GE Refrigerator Mainboard Enclosure
