GLE12HSPARSS SHELVES & DRAWERS

GLE12HSPARSS SHELVES & DRAWERS

Written by

in

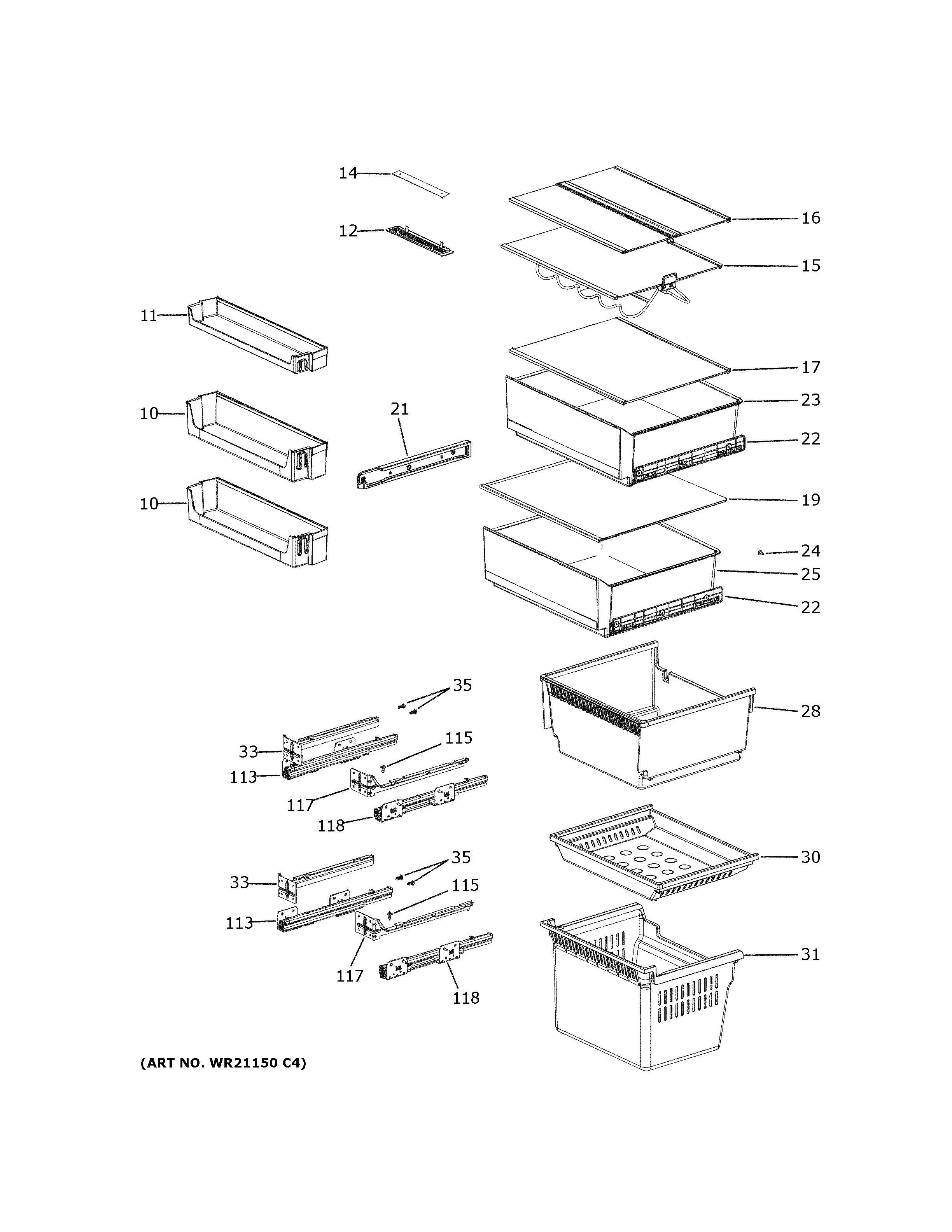

GLE12HSPARSS SHELVES & DRAWERS

Products

PositionProduct
10WR71X28331 GE Refrigerator Lower Fresh Food Door Bin
11WR71X28329 GE Refrigerator Upper Fresh Food Door Bin
12LED LIGHT COVER
14WR55X28346 GE Refrigerator LED Board
15GLASS SHELF WITH WINE RACK
16WR71X28344 GE Refrigerator Quick Space Shelf
17WR71X28385 GE Refrigerator Full Glass Shelf
19VEGETABLE PAN COVER
21LEFT HAND VEGETABLE RAIL
22RIGHT HAND VEGETABLE RAIL
23VEGETABLE PAN
24TAPPING SCREW ST9 X 13
25WR71X31065 GE Temperature Zone Pan
28WR71X28391 GE Freezer Upper Basket
30WR71X28383 GE Refrigerator Lower Freezer Basket Tray
31WR71X28386 GE Refrigerator Lower Freezer Basket
33WR72X28378 GE Refrigerator Freezer Rail Support Left
35WR01X28375 GE M5 x 16 Screw
113WR72X28398 GE Refrigerator Freezer Left Rail
115SCREW ST3.9 X 12
117WR72X28397 GE Refrigerator Freezer Right Rail Support
118FREEZER RAIL RIGHT
