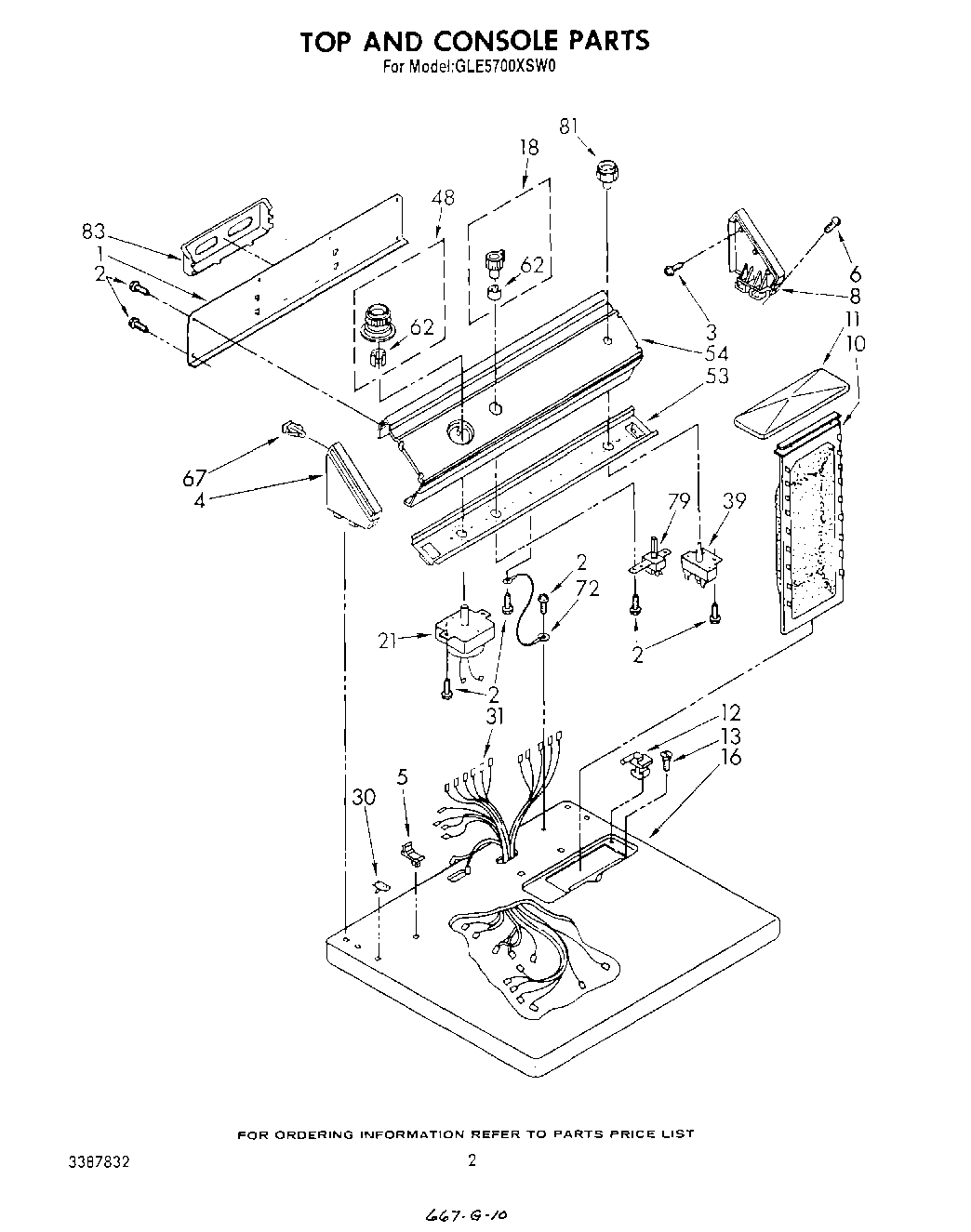

GLE5700XSN0 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL LIT677967
	72113 Whirlpool Touch-Up Paint
	WPL LIT677971
	Golden Harvest
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	WPL 72112
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Washer (Belt Drive)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	WPL LIT3388804
	350956 Whirlpool Spray Assembly
	Leveler (Thinner)
	Almond (Uncut)
	350938 Whirlpool Spray Gun
	WPL LIT3387832
	Guide, Dryer
	Dryer
	WPL LIT3388816
	72017 Whirlpool Appliance Touch-Up Paint White
1	Panel, Rear
2	SCREW
3	WPL 355326
4	Cap, End (L.H.)
5	Stop, Push-In Top
6	WPL 64211
8	WPL 63795
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Platinum)
11	Cover, Lint Screen (Toast)
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (Golden Harvest)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
16	Top (Platinum)
16	Top (Toast)
16	Top (Golden Harvest)
16	Top (Almond)
16	Top (White)
18	Control Knob, Temperature
21	Timer, 50 Hz. (Use W/Model 3LE5700XKW0)
30	Nut, Push-In (2)
31	Harness, Wiring
39	Switch, Push-To-Start
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
79	Switch, Rotary
81	Knob, Push-To-Start
83	Rack, Literature
