GLE7900XKW0 02 – SECTION

Products

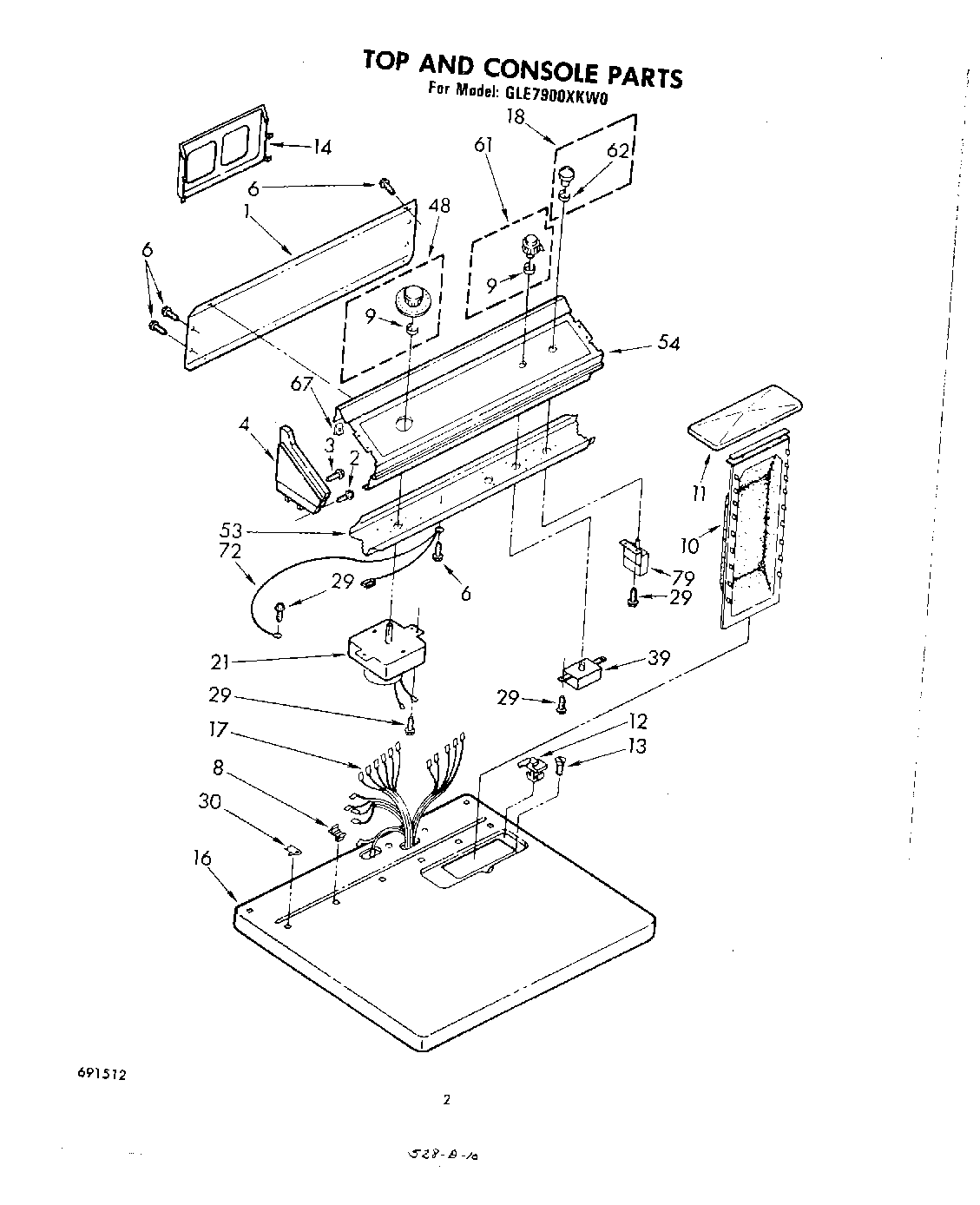

PositionProduct
Almond (Uncut)
Wire, 25` Roll (Red 12 Ga.)
Golden Harvest (Uncut)
799344 Whirlpool Refrigerator Paint
1Panel, Rear Console
2Screw, 8-18 x 1 (2)
3WPL 355326
4Cap, End (L.H.) (Almond)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End L.H. (Golden Harvest)
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End L.H. (White)
6SCREW
8Nut, Push-In (2)
9WP688805 Whirlpool Spring Clip
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Rack, Literature
16top (white)
16Top (Almond)
16Top (Golden Harvest)
17Harness, Electric
18Button Assembly
21Timer, 50 Hz. (Use W/Model 3LE5700XKW0)
29WP3390631 Whirlpool Screw
30Stop, Push-In Top
39Switch, Rotary
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
61Control Knob Assembly
62Clip
67WP689559 Whirlpool Nut
72Wire, Ground
79279320 Whirlpool Dryer Rear Terminal Block Kit
79350930 Whirlpool White Spray Paint
79Instructions, Wiring
7972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
79WPL 799351
79350938 Whirlpool Spray Gun
79WPL 691035
79WPL 691261
79WPL 691512
79Switch, Push-To-Start (Alternate)
79350956 Whirlpool Spray Assembly
79Golden Harvest
79W10851673 Whirlpool Transformer
79Wire, Adapter (4“ Long)
79Wire, Adapter (4-1/2 “ Long)
79Supplement, Installation Instructions
79Leveler (Thinner)
7972017 Whirlpool Appliance Touch-Up Paint White
79WPL 688898
79(Alt.)
