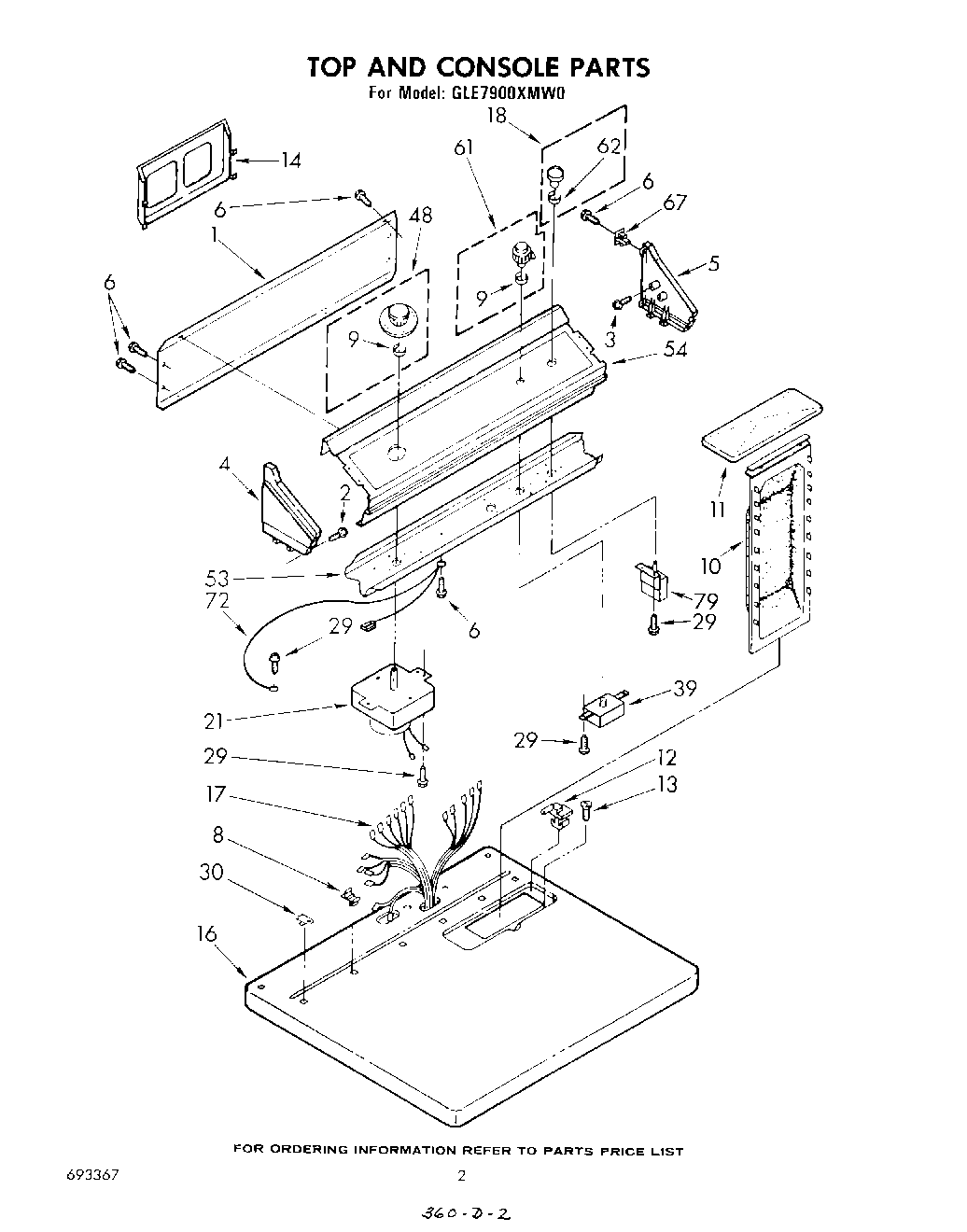

GLE7900XMW0 02 – SECTION
Written by
in
GLE7900XMW0 02 – SECTION
Products
Position
Product
799344 Whirlpool Refrigerator Paint
Almond (Uncut)
Golden Harvest (Uncut)
1
Panel, Rear Console
2
Screw, 8-18 x 1 (2)
3
WPL 355326
4
Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4
Cap, End (L.H.) (White)
4
Cap, End L.H. (Almond Cap, End R.H.)
5
Cap, End L.H. (Golden Harvest)
5
Cap, End L.H. (White)
5
Cap, End (L.H.) (Almond)
6
SCREW
8
Nut, Push-In (2)
9
WP688805 Whirlpool Spring Clip
10
339392V Whirlpool Dryer Lint Filter Screen
11
Cover, Lint Screen (Almond)
11
Cover, Lint Screen (White)
11
Cover, Lint Screen (Golden Harvest)
12
WPW10044480 Whirlpool Hinge Assembly
12
WPW10044470 Whirlpool Hinge Assembly
13
W11693756 Whirlpool Screw Assembly
14
Rack, Literature
16
top (white)
16
Top (Almond)
16
Top (Golden Harvest)
17
Harness, Electric
18
Button Assembly
21
Timer, 50 Hz. (Use W/Model 3LE5700XKW0)
29
WP3390631 Whirlpool Screw
30
Stop, Push-In Top
39
Switch, Rotary
48
Timer Knob Assembly
53
Bracket, Control
54
Panel, Control
61
Control Knob Assembly
62
Clip
67
WP689559 Whirlpool Nut
72
Wire, Ground
79
Switch, Push-To-Start (Alternate)
79
WP72107 Whirlpool Touchup
79
WPL 691035
79
Use & Care Guide
79
WPL 799351
79
WPL 693849
79
350938 Whirlpool Spray Gun
79
Golden Harvest
79
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
79
350930 Whirlpool White Spray Paint
79
Leveler (Thinner)
79
(Alt.)
79
Switch, Push-To-Start
79
72017 Whirlpool Appliance Touch-Up Paint White
79
350956 Whirlpool Spray Assembly
79
List, Service Parts
←
