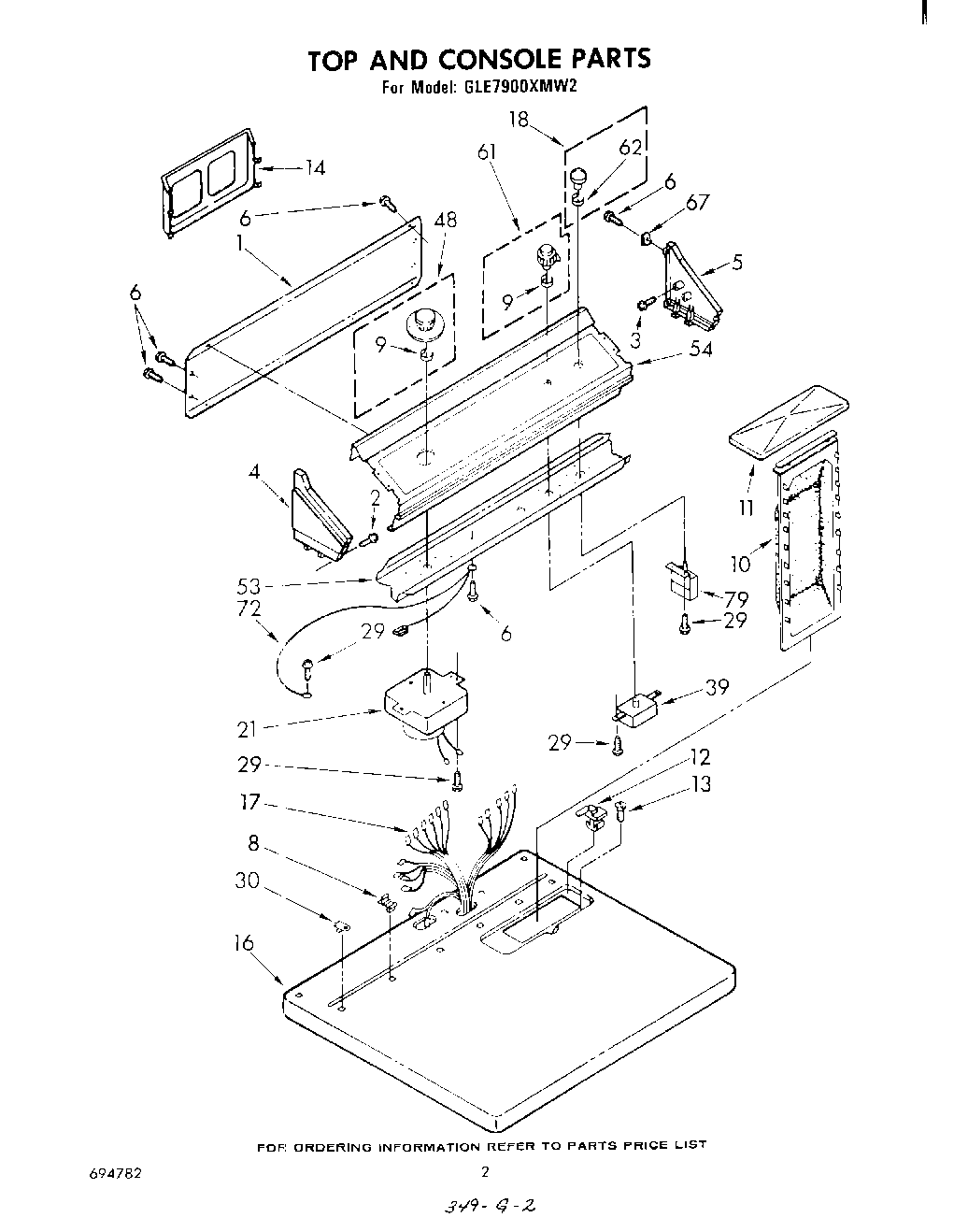

GLE7900XMW2 02 – SECTION

Products

Position	Product
	Golden Harvest (Uncut)
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
1	Panel, Rear Console
2	Screw, 8-18 x 1 (2)
3	WPL 355326
4	Cap, End L.H. (Almond Cap, End R.H.)
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4	Cap, End (L.H.) (White)
5	Cap, End (L.H.) (Almond)
5	Cap, End L.H. (Golden Harvest)
5	Cap, End L.H. (White)
6	SCREW
8	Nut, Push-In (2)
9	WP688805 Whirlpool Spring Clip
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (Golden Harvest)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Rack, Literature
16	top (white)
16	Top (Almond)
16	Top (Golden Harvest)
17	Harness, Wiring
18	Button Assembly
21	Timer, 50 Hz. (Use W/Model 3LE5700XKW0)
29	WP3390631 Whirlpool Screw
30	Stop, Push-In Top
39	Switch, Rotary
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
61	Control Knob Assembly
62	Clip
67	Clip (4)
72	Wire, Ground
79	Use & Care Guide
79	WP72107 Whirlpool Touchup
79	Instructions, Installation
79	Switch, Push-To-Start (Alternate)
79	WPL 799351
79	WPL 693849
79	350938 Whirlpool Spray Gun
79	Golden Harvest
79	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
79	350930 Whirlpool White Spray Paint
79	Leveler (Thinner)
79	(Alt.)
79	Switch, Push-To-Start
79	72017 Whirlpool Appliance Touch-Up Paint White
79	350956 Whirlpool Spray Assembly
79	List, Service Parts
