GLE7900XMW3 02 – SECTION

Products

Position	Product
	WPL LIT696756
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Golden Harvest
	Golden Harvest (Uncut)
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	WPL LIT677971
	WPL LIT677967
	WPL LIT697107
	Guide, Dryer
	WPL LIT693991
	Dryer
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	Washer (Belt Drive)
	799344 Whirlpool Refrigerator Paint
	Almond (Uncut)
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350930 Whirlpool White Spray Paint
	350938 Whirlpool Spray Gun

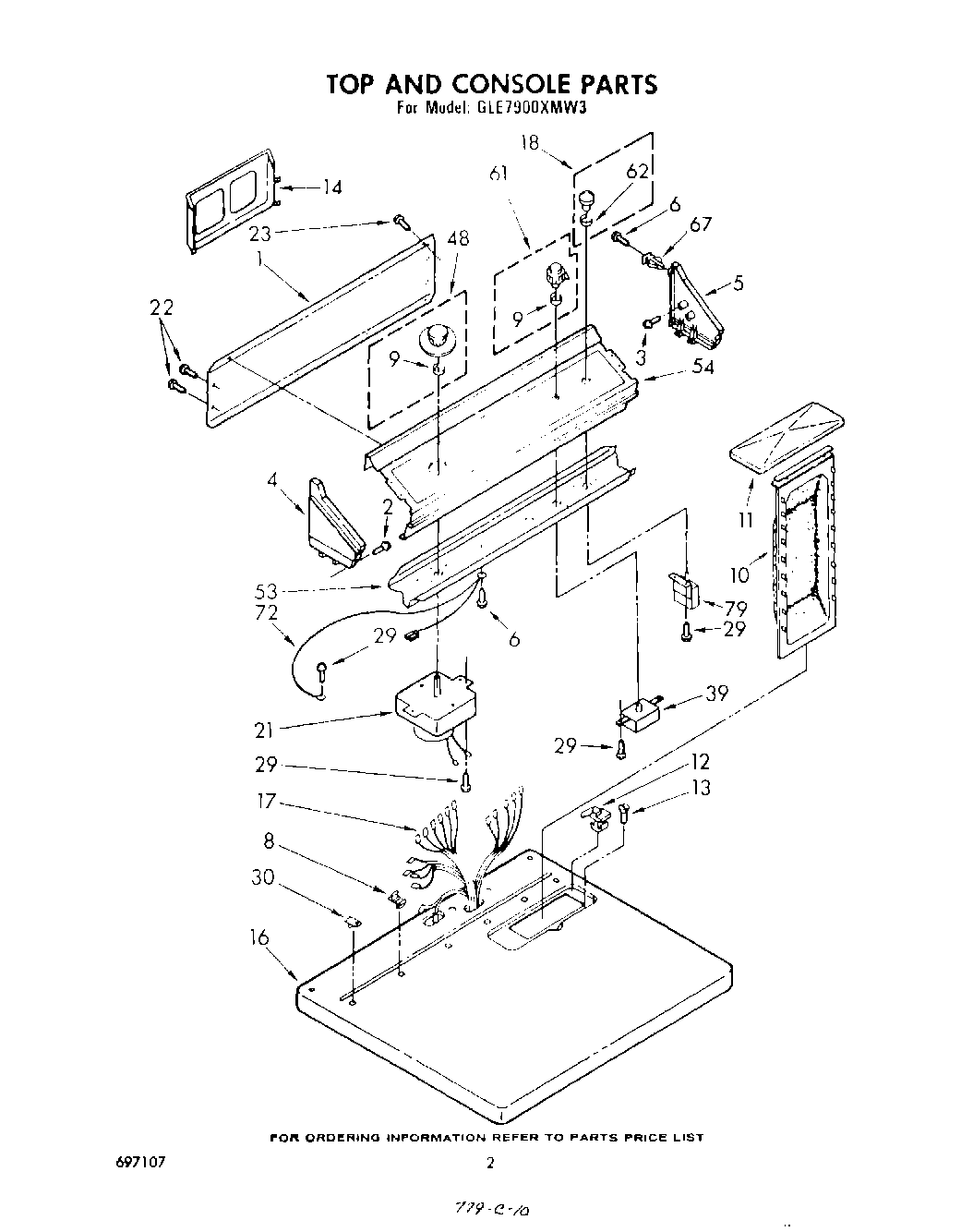

1	Panel, Rear Console
2	Screw, 8-18 x 1 (2)
3	WPL 355326
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4	Cap, End L.H. (Almond Cap, End R.H.)
5	Cap, End L.H. (White)
5	Cap, End (L.H.) (Almond)
5	Cap, End L.H. (Golden Harvest)
6	SCREW
8	Nut, Push-In (2)
9	WP688805 Whirlpool Spring Clip
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Rack, Literature
16	top (white)
16	Top (Golden Harvest)
16	Top (Almond)
17	Harness, Wiring
18	Button Assembly
21	Timer, 50 Hz. (Use W/Model 3LE5700XKW0)
22	WP489069 Whirlpool Compactor Screw
23	WP693995 Whirlpool Screw
29	WP3390631 Whirlpool Screw
30	Stop, Push-In Top
39	Switch, Rotary
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
61	Control Knob Assembly
62	Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
79	Switch, Push-To-Start
79	(Alt.)
79	Switch, Push-To-Start (Alternate)
