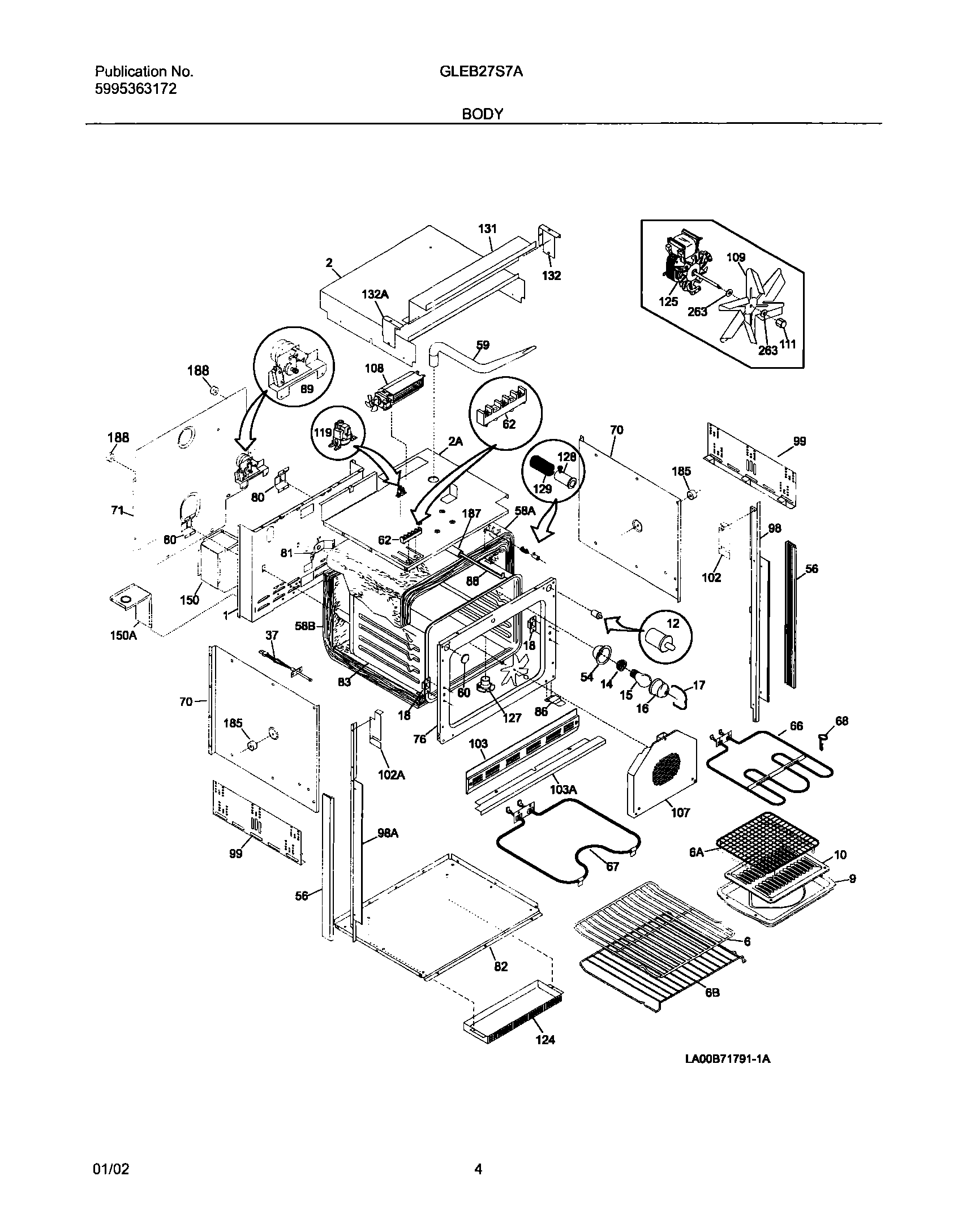

GLEB27S7ABA 05 – BODY

GLEB27S7ABA 05 – BODY

Written by

in

GLEB27S7ABA 05 – BODY

Products

PositionProduct
NIWCI 318120710
NI5303297477 Frigidaire Oven Screw
NIPLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
NIWCI 318078511
NIWCI 5303302745
1WCI 318066700
2WCI 318102001
2AWCI 318071501
6BWCI 318025202
6WCI 5303299719
6AShelf,broiler pan
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
18318090310 Frigidaire Oven Latch
37316217002 Frigidaire Oven Temperature Probe
54WCI 5303310514
56WCI 5303298951
58AWCI 318133750
58BWCI 318133749
59WCI 318072510
60WCI 5303321210
625304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255100 Frigidaire Oven Range Bake Element, 2300W
685304403015 Frigidaire Oven Support
70WCI 5303300142
71WCI 318071102
76WCI 318080300
80WCI 5303320846
81WCI 318192400
82WCI 318071801
83WCI 318089519
86WCI 318113900
88WCI 318118900
89318095956 Frigidaire Oven Motor
98WCI 318029910
98AWCI 318029911
99WCI 318055420
102WCI 318070701
102WCI 318070700
103WCI 318083401
103TRIM-BASE,SMALL ,BLACK
103WCI 318028700
107WCI 5303318711
108WCI 318073001
109FAN BLADE
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
124WCI 318076902
1255303311202 Frigidaire P1-Motor-Conv
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
131WCI 318102202
132END-COVER, CONTROL HSG, LH
132END-COVER, CONTROL HSG, RH
150BRACKET-SUPPORT, ACCESS COVER, LH
150BRACKET-SUPPORT, ACCESS COVER, RH
185318531800 Frigidaire Oven Spacer
187WCI 318013501
188318531702 Frigidaire Oven Spacer
263316008401 Frigidaire Washer P-1
