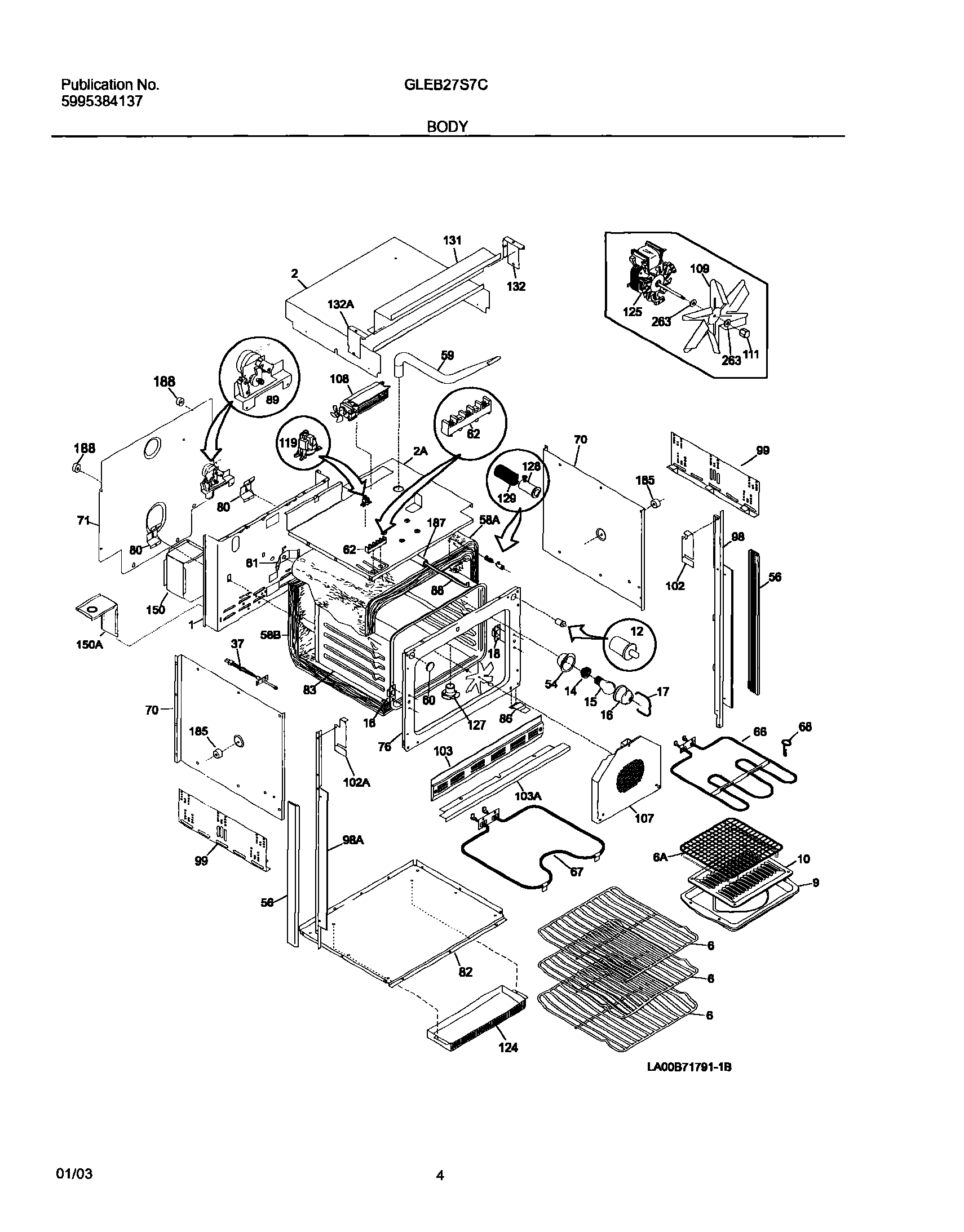

GLEB27S7CSA 05 – BODY

GLEB27S7CSA 05 – BODY

Written by

in

GLEB27S7CSA 05 – BODY

Products

PositionProduct
NI316205500 Frigidaire Oven Nut
NIWCI 318078511
NIWCI 318120711
NIPLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
1WCI 318066703
2AWCI 318071501
2WCI 318102001
6AWCI 318219500
6WCI 5303299719
9WCI 5303317977
10WCI 5303317976
11SCREW, 8 X 5/8, SPARK MODULE
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
18318090310 Frigidaire Oven Latch
37316217002 Frigidaire Oven Temperature Probe
54WCI 5303310514
56WCI 5303302711
58BWCI 318133749
58AWCI 318133758
59WCI 318072510
60WCI 5303321210
625304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255100 Frigidaire Oven Range Bake Element, 2300W
685304403015 Frigidaire Oven Support
70WCI 5303300142
71WCI 318071102
76WCI 318080300
80WCI 5303320846
81WCI 318192400
82WCI 318071801
83WCI 318089524
86WCI 318113900
88WCI 318118900
89318095956 Frigidaire Oven Motor
98WCI 318029910
98AWCI 318029911
99WCI 318055420
102WCI 318070701
102WCI 318070700
103WCI 318083402
103TRIM-BASE,SMALL ,WHITE
103WCI 318028701
107WCI 318219401
108WCI 318073001
109FAN BLADE
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
124WCI 318076902
125Washer,motor ,RH ,convection
1255303311202 Frigidaire P1-Motor-Conv
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
131WCI 318102202
132WCI 318101704
132WCI 318101705
150WCI 318072205
150WCI 318072204
185318531800 Frigidaire Oven Spacer
187WCI 318013501
188318531702 Frigidaire Oven Spacer
263316008401 Frigidaire Washer P-1
