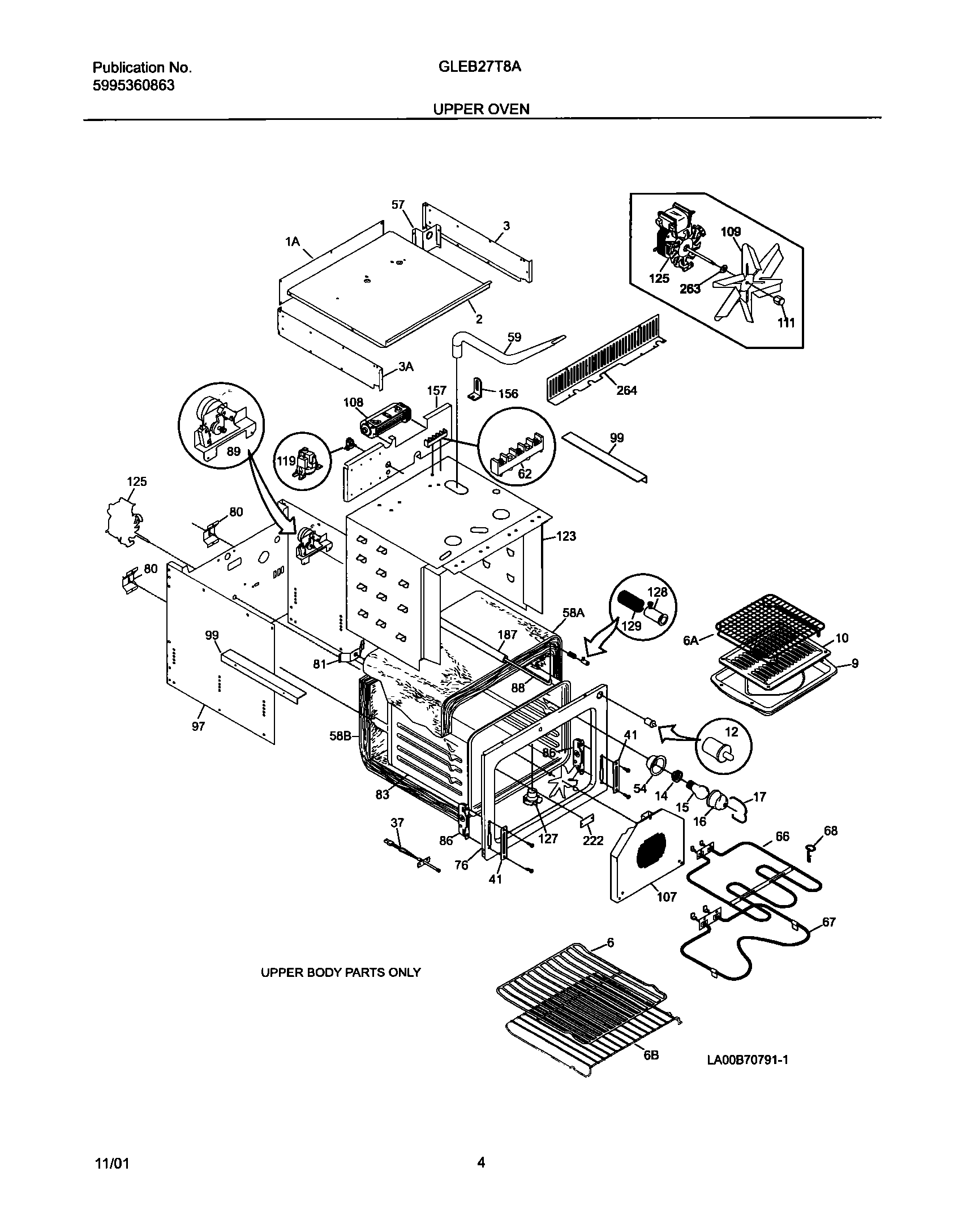

GLEB27T8ABA 05 – UPPER OVEN

Products

Position	Product
NI	08002868 Frigidaire 0 Screw Assembly
NI	5303211311 Frigidaire Refrigerator Screw
NI	WCI 318078501
NI	WCI 318120710
NI	WCI 5304407813
NI	WCI 5303317199
1A	WCI 318071000
2	WCI 318070202
3A	WCI 318070600
3	WCI 318070601
6A	Shelf,broiler pan
6	WCI 5303299719
6B	WCI 318025202
9	WCI 5303317977
10	WCI 5303317976
12	318394803 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WCI 5304400195
37	316217002 Frigidaire Oven Temperature Probe
41	WCI 5303310526
54	WCI 5303310514
57	WCI 318072100
58B	WCI 5303311219
58A	WCI 5303316994
59	WCI 318072510
62	5304409888 Frigidaire Oven Terminal Block with Hardware
66	5303016247 Frigidaire Broil Element
67	318255100 Frigidaire Oven Range Bake Element, 2300W
68	5304403015 Frigidaire Oven Support
76	WCI 318056104
80	WCI 318192400
81	WCI 5303320846
83	WCI 318089519
86	WCI 5303310524
88	WCI 5303311222
89	318095956 Frigidaire Oven Motor
97	WCI 318066500
99	WCI 318055200
107	WCI 5303318711
108	WCI 318073012
109	FAN BLADE
111	316136600 Frigidaire Oven Range Lock Nut
119	WCI 318005200
123	SHIELD-INSULATION,TOP & SIDES
125	5303311202 Frigidaire P1-Motor-Conv
127	318317100 Frigidaire Adapter Assembly
128	WCI 5303311163
129	5303311164 Frigidaire Oven Spring
156	WCI 318024100
157	WCI 318071601
187	WCI 318013501
222	PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
263	316008401 Frigidaire Washer P-1
264	WCI 318143811
