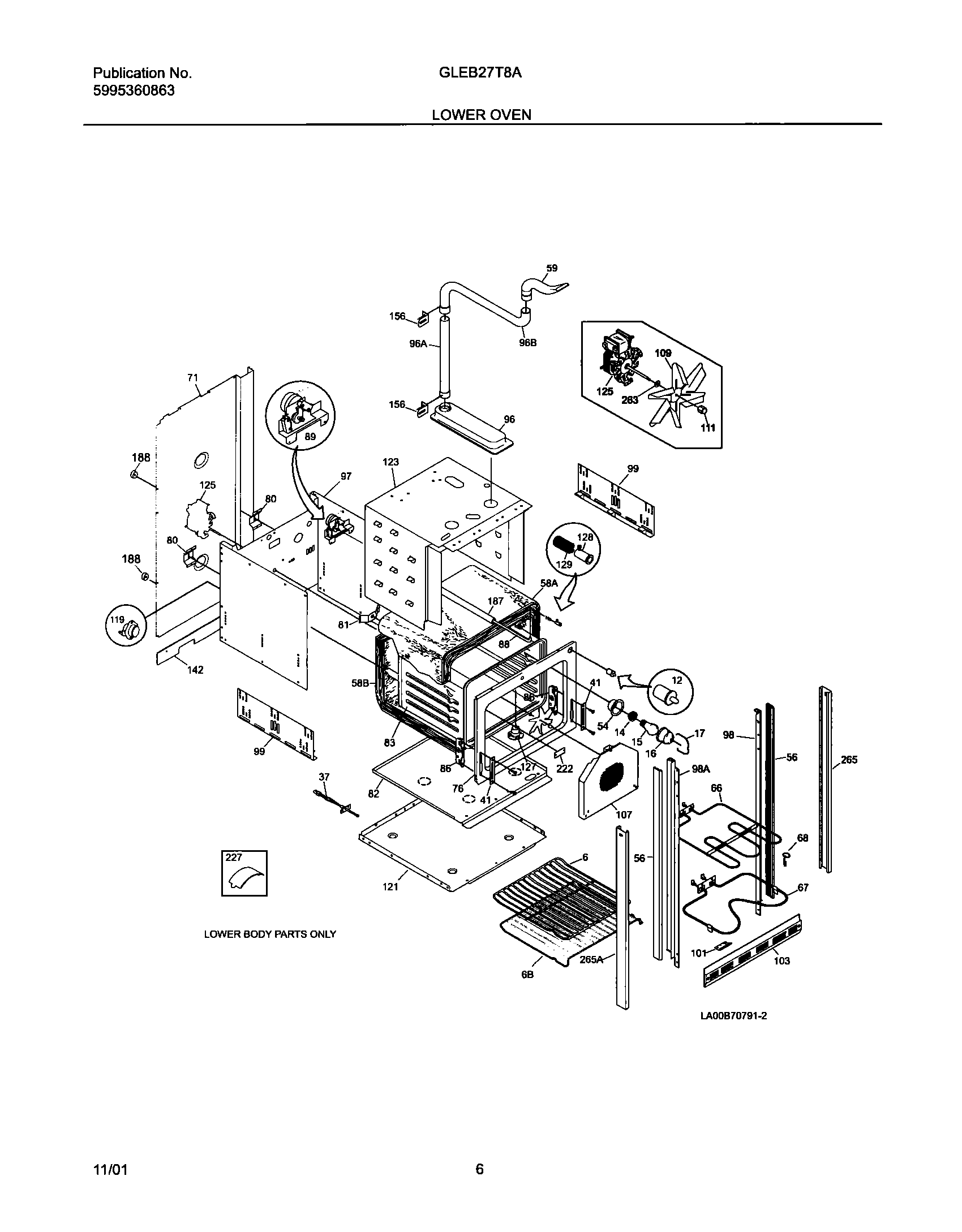

GLEB27T8ABA 07 – LOWER OVEN

GLEB27T8ABA 07 – LOWER OVEN

Written by

in

GLEB27T8ABA 07 – LOWER OVEN

Products

PositionProduct
NI5303324184 Frigidaire Wall Oven Range Screw
NIWCI 5303302745
NI5303211311 Frigidaire Refrigerator Screw
NIWCI 318120710
NIWCI 5304407813
NI08002868 Frigidaire 0 Screw Assembly
6WCI 5303299719
6BWCI 318025202
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56WCI 5303300956
58BWCI 5303311219
58AWCI 5303311218
59WCI 5303300951
665303016247 Frigidaire Broil Element
67318255100 Frigidaire Oven Range Bake Element, 2300W
685304403015 Frigidaire Oven Support
71WCI 318071120
76WCI 318056104
80WCI 5303301261
81WCI 5303320846
82WCI 5303304699
83WCI 318089519
86WCI 5303310524
88WCI 5303311222
89318095956 Frigidaire Oven Motor
96BDUCT-VENT PIPE
96ADuct,oven vent ,center
96WCI 5303317197
97WCI 318066604
98AWCI 318029333
98WCI 318029332
99318284201 Frigidaire PANEL
101BRACKET-TRIM (NOT ILLUSTRATED)
103WCI 318028700
107WCI 5303318711
109FAN BLADE
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
121WCI 318145002
123SHIELD-INSULATION,TOP & SIDES
1255303311202 Frigidaire P1-Motor-Conv
127WCI 318072801
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
142WCI 318054900
156WCI 5303317198
187WCI 318013501
188318531702 Frigidaire Oven Spacer
222PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
227WCI 5303323955
263316008401 Frigidaire Washer P-1
