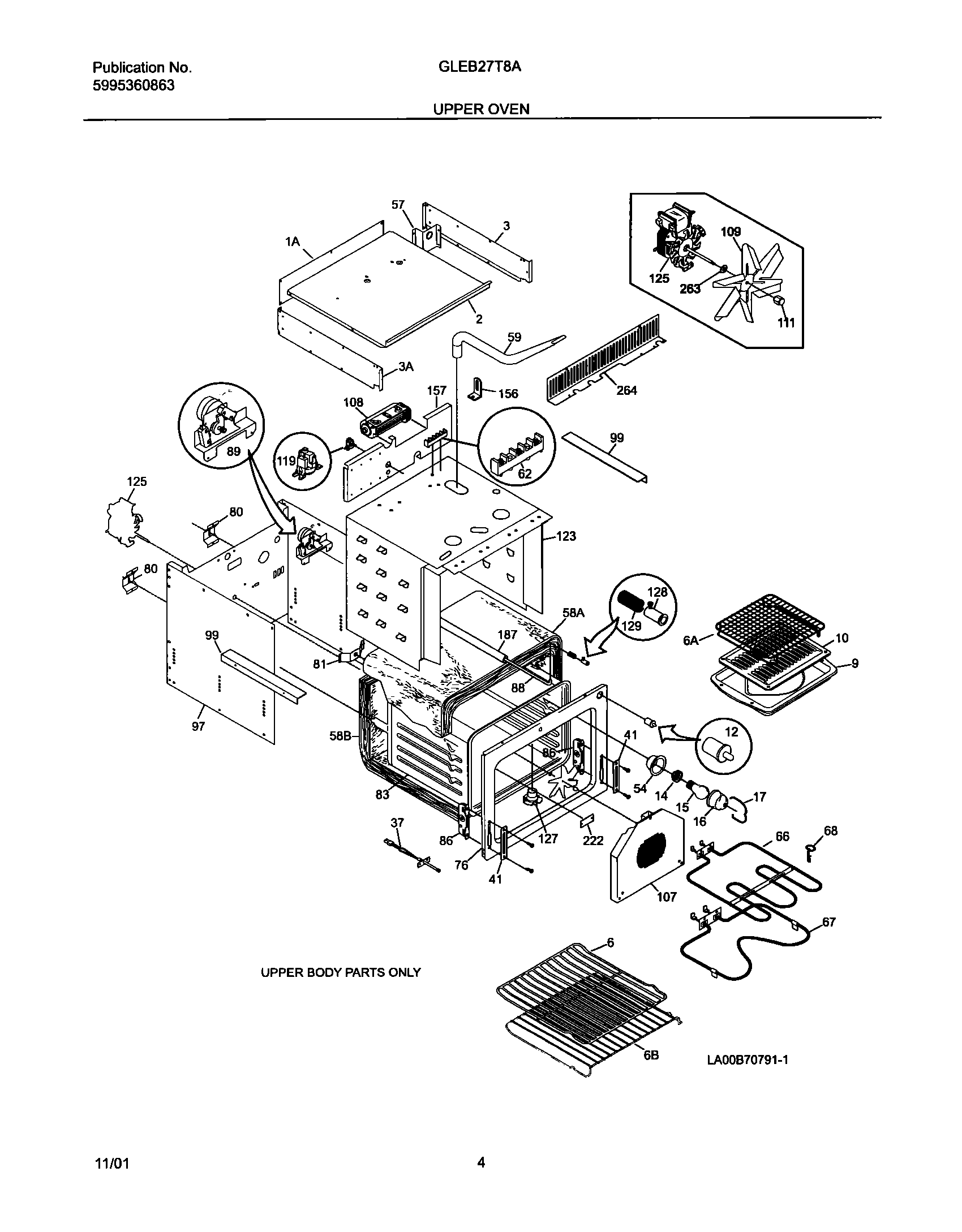

GLEB27T8ASA 05 – UPPER OVEN

GLEB27T8ASA 05 – UPPER OVEN

Written by

in

GLEB27T8ASA 05 – UPPER OVEN

Products

PositionProduct
NI08002868 Frigidaire 0 Screw Assembly
NIWCI 5303317199
NIWCI 318078501
NI5303211311 Frigidaire Refrigerator Screw
NIWCI 5304407813
NIWCI 318120710
1AWCI 318071000
2WCI 318070202
3WCI 318070601
3AWCI 318070600
6AShelf,broiler pan
6WCI 5303299719
6BWCI 318025202
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
57WCI 318072100
58AWCI 5303316994
58BWCI 5303311219
59WCI 318072510
625304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255100 Frigidaire Oven Range Bake Element, 2300W
685304403015 Frigidaire Oven Support
76WCI 318056104
80WCI 318192400
81WCI 5303320846
83WCI 318089519
86WCI 5303310524
88WCI 5303311222
89318095956 Frigidaire Oven Motor
97WCI 318066500
99WCI 318055200
107WCI 5303318711
108WCI 318073012
109FAN BLADE
111316136600 Frigidaire Oven Range Lock Nut
119WCI 318005200
123SHIELD-INSULATION,TOP & SIDES
1255303311202 Frigidaire P1-Motor-Conv
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
156WCI 318024100
157WCI 318071601
187WCI 318013501
222PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
263316008401 Frigidaire Washer P-1
