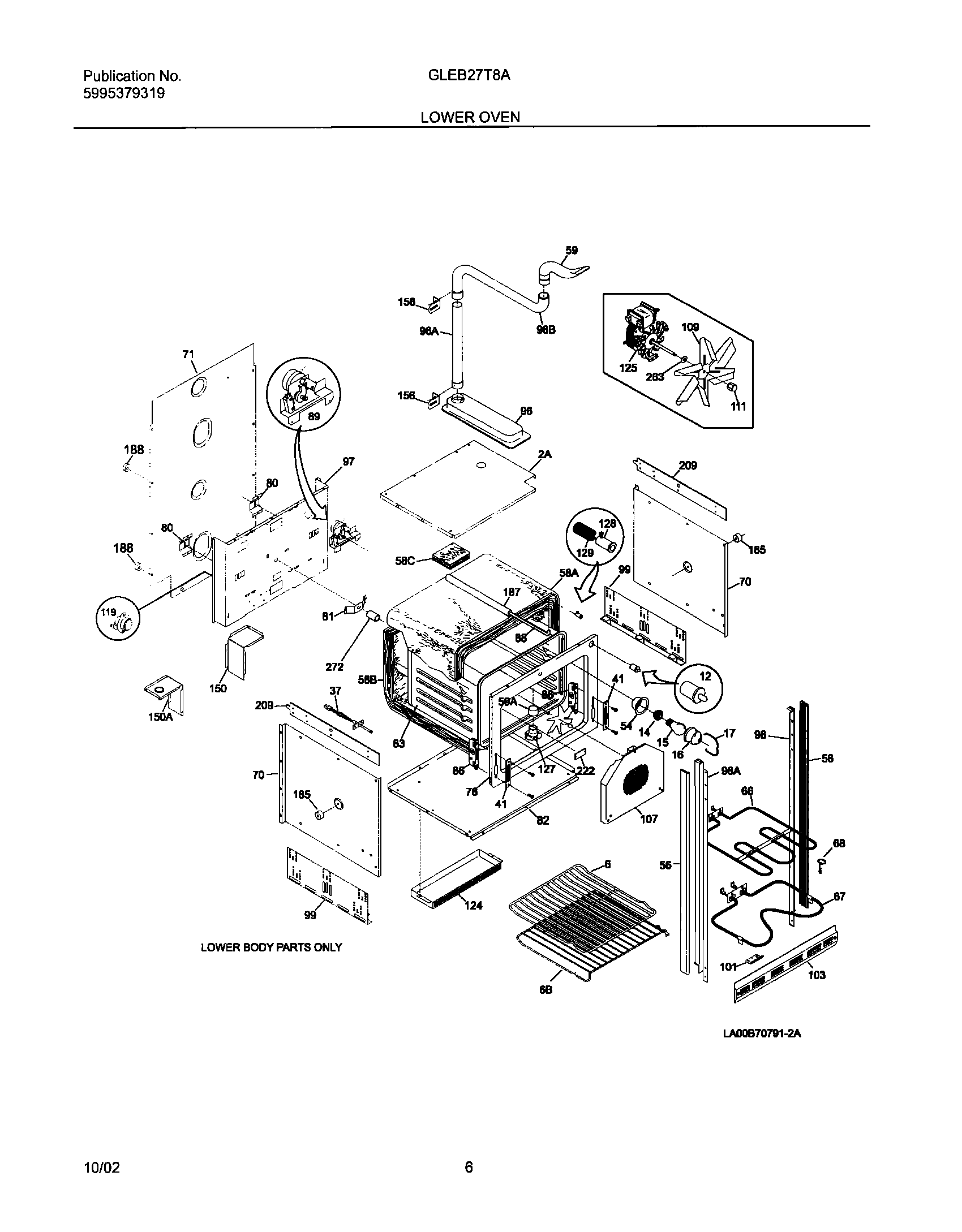

GLEB27T8ASB 07 – LOWER OVEN

Products

PositionProduct
NI08002868 Frigidaire 0 Screw Assembly
NI5303211311 Frigidaire Refrigerator Screw
NIWCI 5303302745
NIWCI 318120711
2AWCI 318071502
6BWCI 318025202
6WCI 5303299719
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56WCI 5303302282
58CWCI 5303316994
58BWCI 318133749
58AWCI 318133758
59AWCI 5303320844
59WCI 5303300951
665303016247 Frigidaire Broil Element
67318255100 Frigidaire Oven Range Bake Element, 2300W
685304403015 Frigidaire Oven Support
70WCI 5303300142
71WCI 318071212
76WCI 318056104
80WCI 5303320846
81WCI 318192400
82WCI 318071801
83WCI 318089519
86WCI 5303310524
88WCI 5303311222
89318095956 Frigidaire Oven Motor
96ADuct,oven vent ,center
96BDUCT-VENT PIPE
96WCI 5303317197
97WCI 318066703
98WCI 318029334
98AWCI 318029335
99WCI 318055420
101WCI 318039512
103WCI 318028701
107WCI 5303318711
109FAN BLADE
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
124WCI 318076902
125Washer,motor ,RH ,convection
1255303311202 Frigidaire P1-Motor-Conv
127WCI 318072801
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
150WCI 318072204
150WCI 318072205
156WCI 5303317198
185318531800 Frigidaire Oven Spacer
187WCI 318013501
188318531702 Frigidaire Oven Spacer
209WCI 318086210
222PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
263316008401 Frigidaire Washer P-1
272WCI 5303311207
