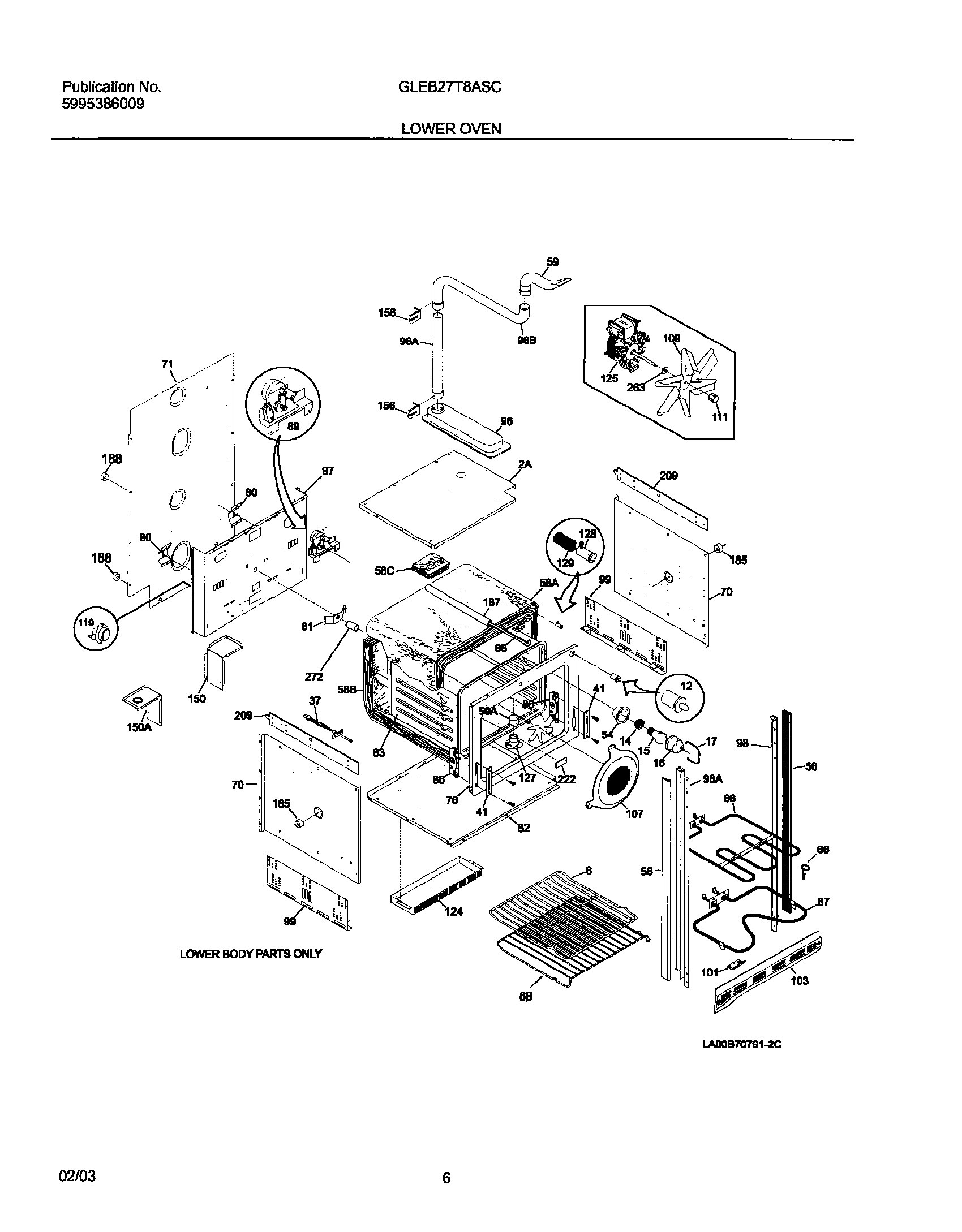

GLEB27T8ASC 07 – LOWER OVEN

Products

Position	Product
NI	08002868 Frigidaire 0 Screw Assembly
NI	WCI 5303302745
NI	5303211311 Frigidaire Refrigerator Screw
NI	WCI 318120711
2A	WCI 318071502
6	WCI 5303299719
6B	WCI 318025202
12	318394803 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WCI 5304400195
37	316217002 Frigidaire Oven Temperature Probe
41	WCI 5303310526
54	WCI 318222400
56	WCI 5303302282
58A	WCI 318133758
58C	WCI 5303316994
58B	WCI 318133749
59	WCI 5303300951
59A	WCI 5303320844
66	5303016247 Frigidaire Broil Element
67	318255100 Frigidaire Oven Range Bake Element, 2300W
68	5304403015 Frigidaire Oven Support
70	WCI 5303300142
71	WCI 318071212
76	WCI 318056104
80	WCI 5303320846
81	WCI 318192400
82	WCI 318071801
83	WCI 318089524
86	WCI 5303310524
88	WCI 5303311222
89	318095956 Frigidaire Oven Motor
96B	DUCT-VENT PIPE
96	WCI 5303317197
96A	Duct,oven vent ,center
97	WCI 318066703
98A	WCI 318029353
98	WCI 318029352
99	WCI 318055420
101	WCI 318039512
103	WCI 318028701
107	WCI 318219401
109	FAN BLADE
111	316136600 Frigidaire Oven Range Lock Nut
119	318004900 Frigidaire Thermal Switch
124	WCI 318076902
125	5303311202 Frigidaire P1-Motor-Conv
125	Washer,motor ,RH ,convection
127	WCI 318072801
128	WCI 5303311163
129	5303311164 Frigidaire Oven Spring
150	WCI 318072204
150	WCI 318072205
156	WCI 5303317198
185	318531800 Frigidaire Oven Spacer
187	WCI 318013501
188	318531702 Frigidaire Oven Spacer
209	WCI 318086210
222	PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
263	316008401 Frigidaire Washer P-1
272	WCI 5303311207
