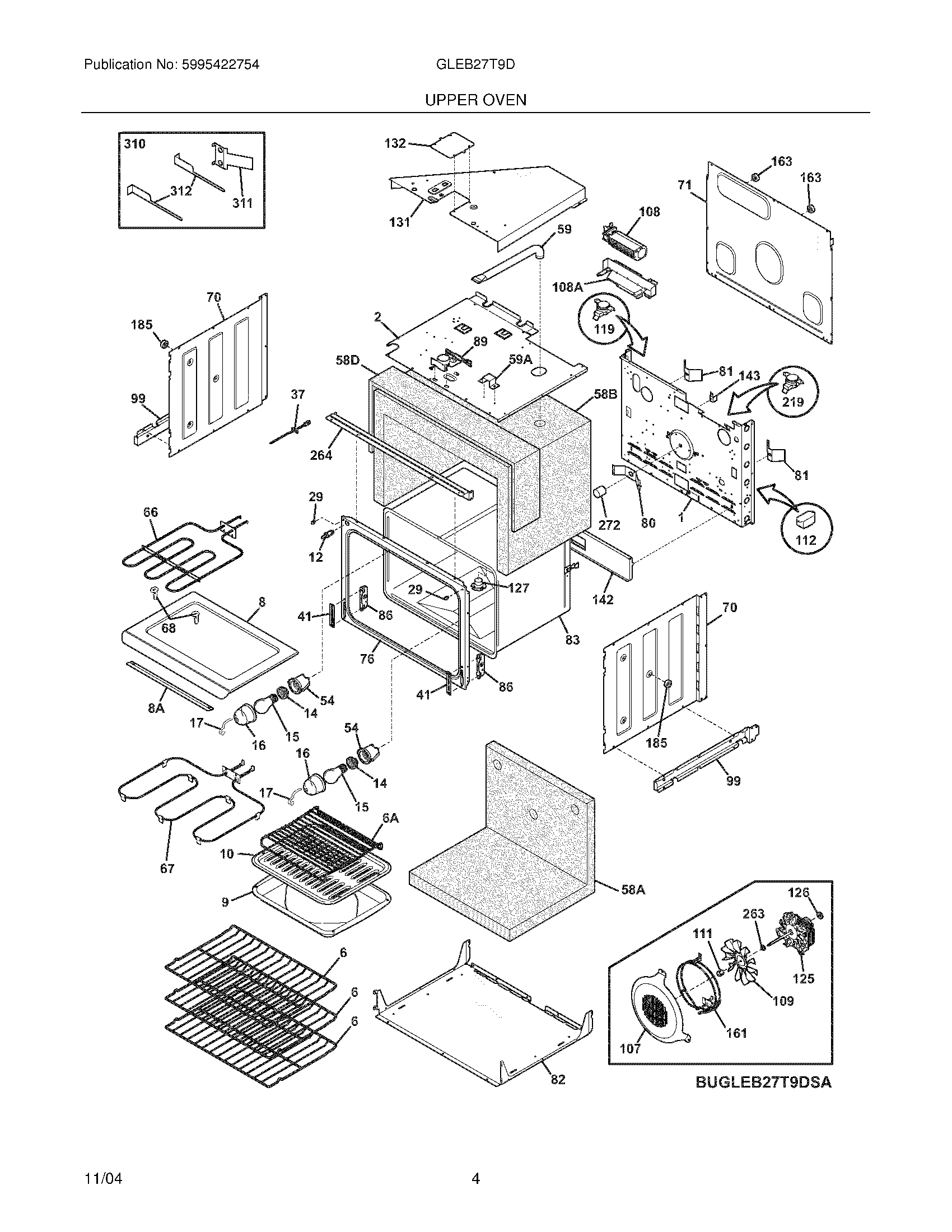

GLEB27T9DSA 05 – UPPER OVEN

Products

Position	Product
NI	CLIP-WIRE
NI	3201861 Frigidaire Screw
NI	WCI 318268099
NI	SCREW,TRUSS HEAD,8-18 X 0.375
NI	5304436875 Frigidaire Oven Screw
NI	5303323277 Frigidaire Oven Screw
NI	5303300265 Frigidaire Oven Screw
NI	5303211311 Frigidaire Refrigerator Screw
NI	WCI 318231705
1	WCI 318259210
2	WCI 318258910
6A	WCI 318219500
6	WCI 318262603
8A	WCI 318285300
8	WCI 318262011
9	WCI 5303317977
10	WCI 5303317976
12	316445501 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WCI 5304400195
29	318147430 Frigidaire Oven Bumper
37	316217002 Frigidaire Oven Temperature Probe
41	WCI 5303310526
54	WCI 318222400
58D	WCI 318133793
58B	WCI 318133794
58A	WCI 318133795
59A	WCI 318261600
66	318255606 Frigidaire Range Oven Broil Element
67	318254902 Frigidaire Oven Element
68	5304403015 Frigidaire Oven Support
70	WCI 318259100
71	WCI 318260001
76	WCI 318056222
80	WCI 5303320846
81	WCI 318192400
82	WCI 318258710
83	WCI 318261500
86	WCI 5303310524
89No.	318261213 Frigidaire Oven Motor
99	WCI 318252800
107	WCI 318219401
108	WCI 318251300
108	318073028 Frigidaire Oven Motor
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
112	WCI 318112701
119	318004900 Frigidaire Thermal Switch
125	5304467898 Frigidaire Oven Kit Assembly
126	Washer,motor ,RH ,convection
127	318317100 Frigidaire Adapter Assembly
131	WCI 318272900
132	318003000 Frigidaire Plate
142	WCI 318123910
143	318172904 Frigidaire Bracket
161	318255504 Frigidaire Oven Element
163	WCI 318014111
185	318531800 Frigidaire Oven Spacer
219	WCI 318003606
263	316008401 Frigidaire Washer P-1
264	WCI 318257711
310	WCI 5304440067
311	5304438005 Frigidaire Oven Screw
311	WCI 318246010
312	318246703 Frigidaire Tool
312	318246702 Frigidaire Tool Appliance
