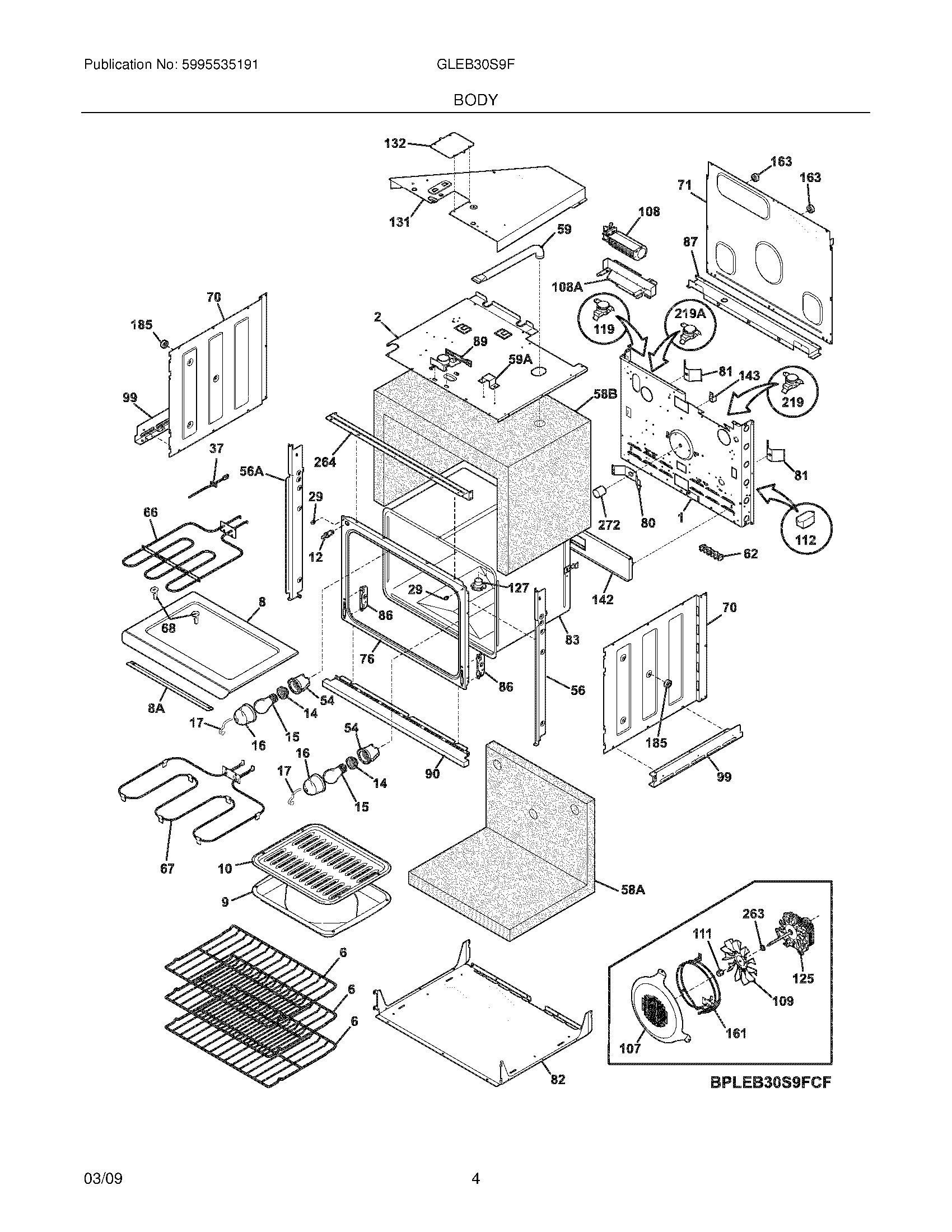

GLEB30S9FSD 05 – BODY

GLEB30S9FSD 05 – BODY

Written by

in

GLEB30S9FSD 05 – BODY

Products

PositionProduct
NI5303323277 Frigidaire Oven Screw
NI5303211311 Frigidaire Refrigerator Screw
NIWCI 318231869
NI5304506983 Frigidaire Harness Assembly
NIWCI 318370303
NI5303324184 Frigidaire Wall Oven Range Screw
NI316205500 Frigidaire Oven Nut
NI5304480396 Frigidaire Screw
NI5304436875 Frigidaire Oven Screw
NISCREW,TRUSS HEAD,8-18 X 0.375
NIWCI 318268099
NIWCI 318370335
NI5303323139 Frigidaire Oven Screw
1WCI 318259220
2WCI 318258902
6WCI 318345214
8WCI 318262001
8AWCI 318318600
9WCI 5303317977
10WCI 5303317976
12316445501 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
29316517600 Frigidaire Oven Spacer
37316217002 Frigidaire Oven Temperature Probe
54WCI 318222400
56WCI 318903702
56AWCI 318903703
58AWCI 318386100
58BInsulation,oven wrapper ,back/bottom
59AWCI 318261600
625304409888 Frigidaire Oven Terminal Block with Hardware
66318255605 Frigidaire Oven Broil Element Range
67318254906 Frigidaire Oven Range Bake Element 3400W
685304403015 Frigidaire Oven Support
70WCI 318259100
71WCI 318260007
76WCI 318056292
80WCI 5303320846
81WCI 318192400
82WCI 318258707
83WCI 318261400
86318561100 Frigidaire Receptacle
87WCI 318260600
89318261229 Frigidaire Oven Motor
90WCI 318259700
99318256201 Frigidaire Oven Bracket
107WCI 318219405
108318073028 Frigidaire Oven Motor
108WCI 318251300
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
125WCI 5303316994
1255304467898 Frigidaire Oven Kit Assembly
127318317100 Frigidaire Adapter Assembly
131WCI 318272901
132318003000 Frigidaire Plate
142WCI 318123910
143318172904 Frigidaire Bracket
161318255504 Frigidaire Oven Element
163Spacer,(4)
185318531800 Frigidaire Oven Spacer
263Washer,motor ,RH ,convection
264WCI 318257701
272WCI 318249403
