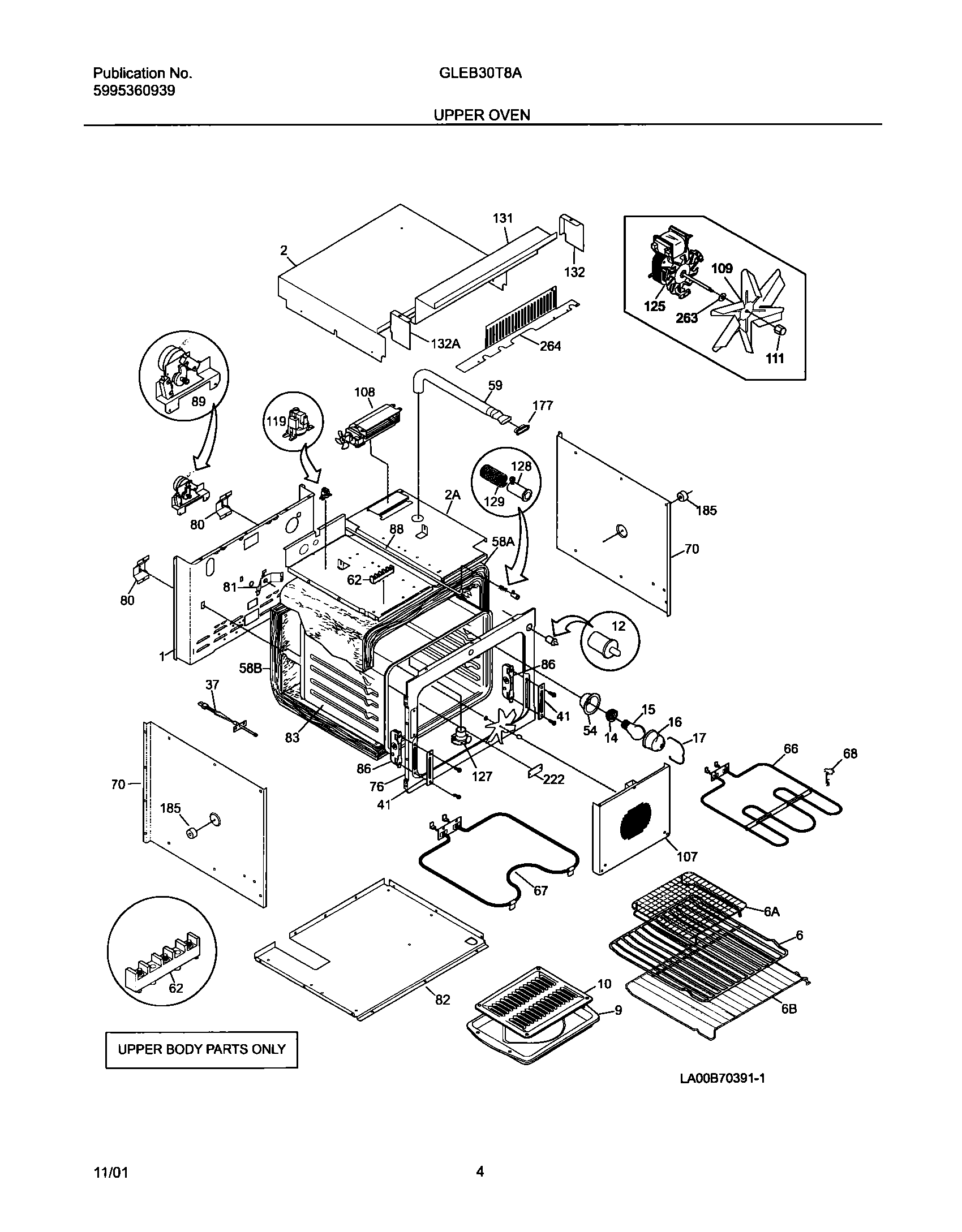

GLEB30T8ABA 05 – UPPER OVEN

Products

Position	Product
NI	5303323139 Frigidaire Oven Screw
NI	5303211311 Frigidaire Refrigerator Screw
NI	WCI 318120710
NI	08002868 Frigidaire 0 Screw Assembly
NI	WCI 5303302745
NI	WCI 5303311528
NI	WCI 318078507
1	WCI 318066402
2	WCI 318102101
2A	WCI 318071705
6B	318025314 Frigidaire Oven Rack
6A	Shelf,broiler pan
9	WCI 5303317977
10	WCI 5303317976
12	318394803 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WCI 5304400195
37	316217002 Frigidaire Oven Temperature Probe
41	WCI 5303310526
54	WCI 5303310514
58B	WCI 318133769
58A	WCI 318133744
59	WCI 318072506
62	5304409888 Frigidaire Oven Terminal Block with Hardware
66	318255605 Frigidaire Oven Broil Element Range
67	BAKE ELEMENT
68	5304403015 Frigidaire Oven Support
70	WCI 5303300142
76	WCI 318056202
80	WCI 318192400
81	WCI 5303320846
82	WCI 318072301
83	Liner,oven
86	WCI 5303310524
88	WCI 5303311222
89	318095956 Frigidaire Oven Motor
107	WCI 318119600
108	WCI 318073012
109	FAN BLADE
111	316136600 Frigidaire Oven Range Lock Nut
119	318004900 Frigidaire Thermal Switch
125	5303311202 Frigidaire P1-Motor-Conv
127	318317100 Frigidaire Adapter Assembly
128	WCI 5303311163
129	5303311164 Frigidaire Oven Spring
131	WCI 318102301
132	END-COVER, CONTROL HSG, RH
132	END-COVER, CONTROL HSG, LH
177	WCI 318053800
185	318531800 Frigidaire Oven Spacer
222	PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
263	316008401 Frigidaire Washer P-1
264	WCI 318143815
