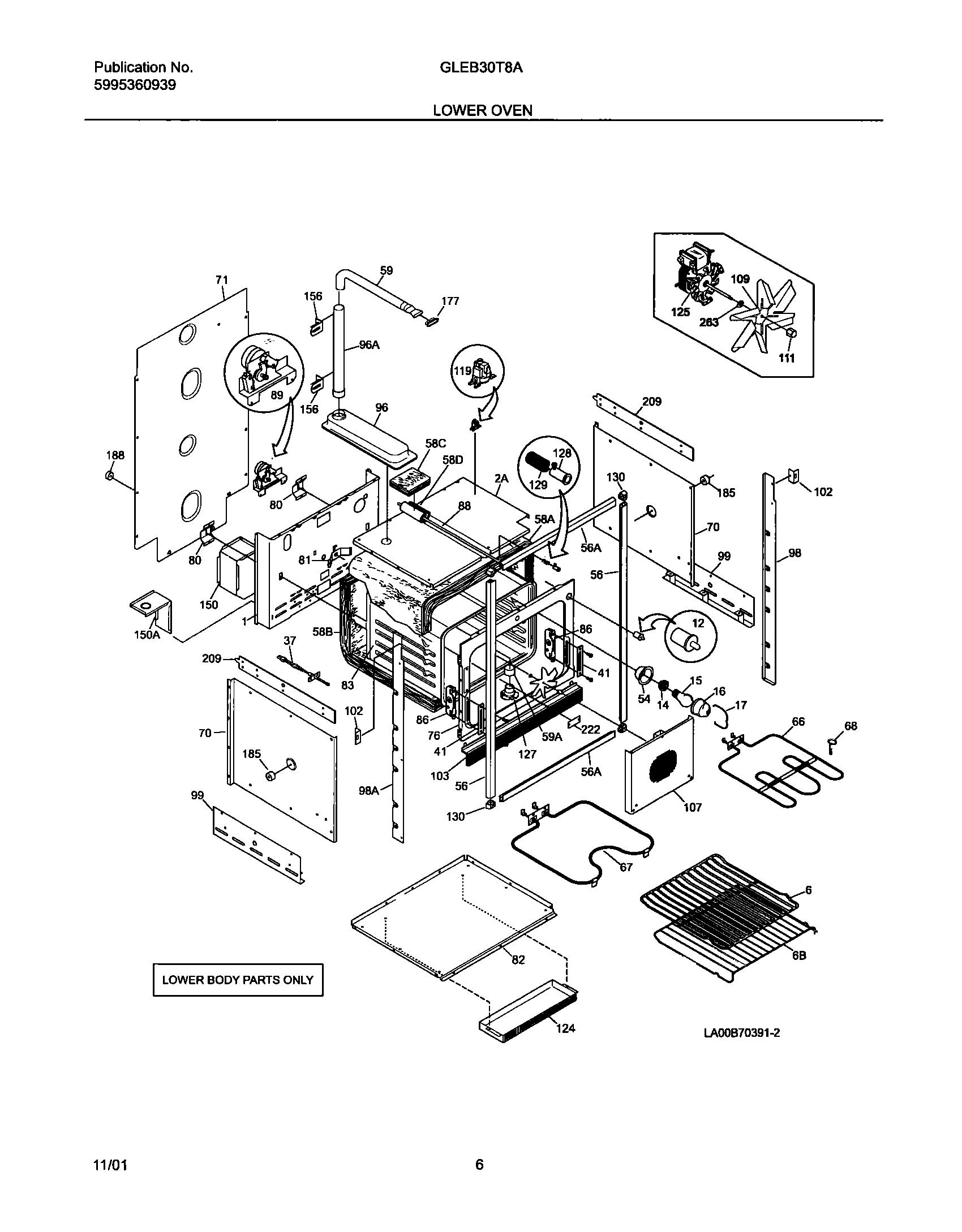

GLEB30T8ASA 07 – LOWER OVEN

Products

Position	Product
NI	08002868 Frigidaire 0 Screw Assembly
NI	WCI 318120710
NI	5303211311 Frigidaire Refrigerator Screw
1	WCI 318066402
2A	WCI 318071704
6B	318025314 Frigidaire Oven Rack
12	318394803 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WCI 5304400195
37	316217002 Frigidaire Oven Temperature Probe
41	WCI 5303310526
54	WCI 5303310514
56A	TOP TRIM,WHITE ,(4)
56	WCI 318034404
58B	WCI 318133769
58A	WCI 5303316994
58D	WCI 318133757
58C	WCI 318106002
59A	WCI 5303320844
59	WCI 318072504
66	318255605 Frigidaire Oven Broil Element Range
67	BAKE ELEMENT
68	5304403015 Frigidaire Oven Support
70	WCI 5303300142
71	WCI 318071211
76	WCI 318056202
80	WCI 318192400
81	WCI 5303320846
82	SHIELD-INSULATION
83	WCI 318089607
86	WCI 5303310524
88	WCI 5303311222
89	318095956 Frigidaire Oven Motor
96A	Duct,oven vent ,center
96	WCI 5303317197
98	WCI 318029211
98A	WCI 318029213
99	WCI 318055410
102	WCI 318090900
103	WCI 318028501
107	WCI 318119600
109	FAN BLADE
111	316136600 Frigidaire Oven Range Lock Nut
119	318004900 Frigidaire Thermal Switch
124	WCI 318076903
125	5303311202 Frigidaire P1-Motor-Conv
127	318317100 Frigidaire Adapter Assembly
128	WCI 5303311163
129	5303311164 Frigidaire Oven Spring
130	WCI 318070801
150	WCI 318072204
150	WCI 318072205
156	WCI 5303317198
177	WCI 318053800
185	318531800 Frigidaire Oven Spacer
188	318531702 Frigidaire Oven Spacer
209	WCI 318086200
222	PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
263	316008401 Frigidaire Washer P-1
