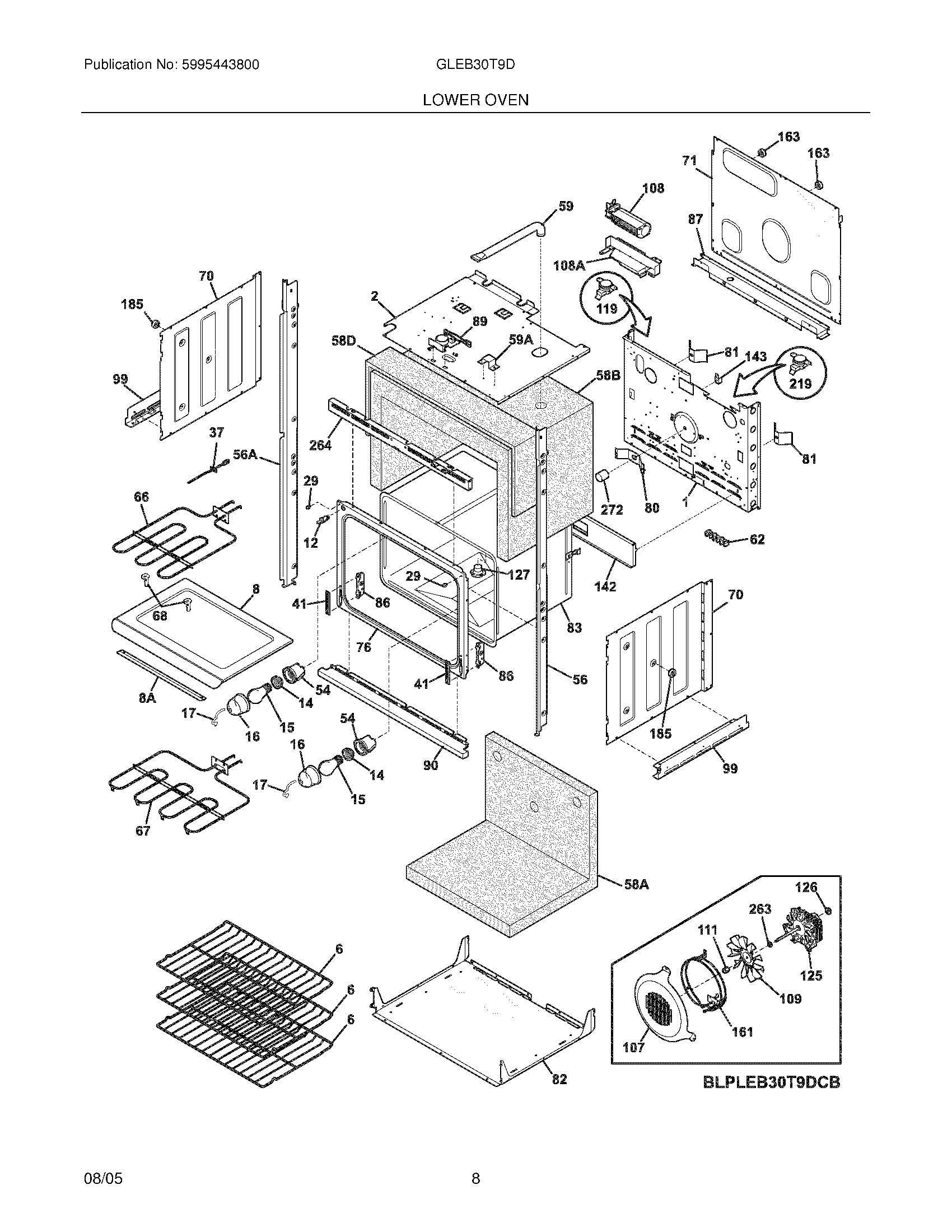

GLEB30T9DSB 07 – LOWER OVEN

Products

Position	Product
NI	5303300265 Frigidaire Oven Screw
NI	WCI 318340200
NI	WCI 318231705
NI	5303211311 Frigidaire Refrigerator Screw
NI	3201861 Frigidaire Screw
NI	WCI 318231742
NI	316205500 Frigidaire Oven Nut
NI	5304480396 Frigidaire Screw
NI	5303323139 Frigidaire Oven Screw
NI	5303323277 Frigidaire Oven Screw
NI	5304436875 Frigidaire Oven Screw
NI	SCREW,TRUSS HEAD,8-18 X 0.375
NI	WCI 318268099
NI	5304506955 Frigidaire Harness Assembly
1	WCI 318259202
2	WCI 318258900
6	WCI 318262503
8	WCI 318262001
8A	WCI 318318600
12	316445501 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WCI 5304400195
29	318147430 Frigidaire Oven Bumper
37	316217002 Frigidaire Oven Temperature Probe
41	WCI 5303310526
54	WCI 318222400
56A	WCI 318259913
56	WCI 318259912
58D	WCI 318285058
58A	WCI 318285055
58B	WCI 318285056
59A	WCI 318261600
62	5304409888 Frigidaire Oven Terminal Block with Hardware
66	318255605 Frigidaire Oven Broil Element Range
67	318254906 Frigidaire Oven Range Bake Element 3400W
68	5304403015 Frigidaire Oven Support
70	WCI 318259100
71	WCI 318260007
76	WCI 318056217
80	WCI 5303320846
81	WCI 318192400
82	WCI 318258707
83	WCI 318261400
86	WCI 5303310524
87	WCI 318260600
89	318261230 Frigidaire Oven Motor
90	WCI 318259700
99	318256201 Frigidaire Oven Bracket
107	WCI 318219401
108	318073028 Frigidaire Oven Motor
108	WCI 318251300
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
119	318004900 Frigidaire Thermal Switch
125	5304467898 Frigidaire Oven Kit Assembly
126	Washer,motor ,RH ,convection
127	318317100 Frigidaire Adapter Assembly
142	WCI 318123910
143	318172904 Frigidaire Bracket
161	318255504 Frigidaire Oven Element
163	WCI 318014111
185	318531800 Frigidaire Oven Spacer
219	318003614 Frigidaire Thermostat
263	316008401 Frigidaire Washer P-1
264	WCI 318257801
272	WCI 318249401
