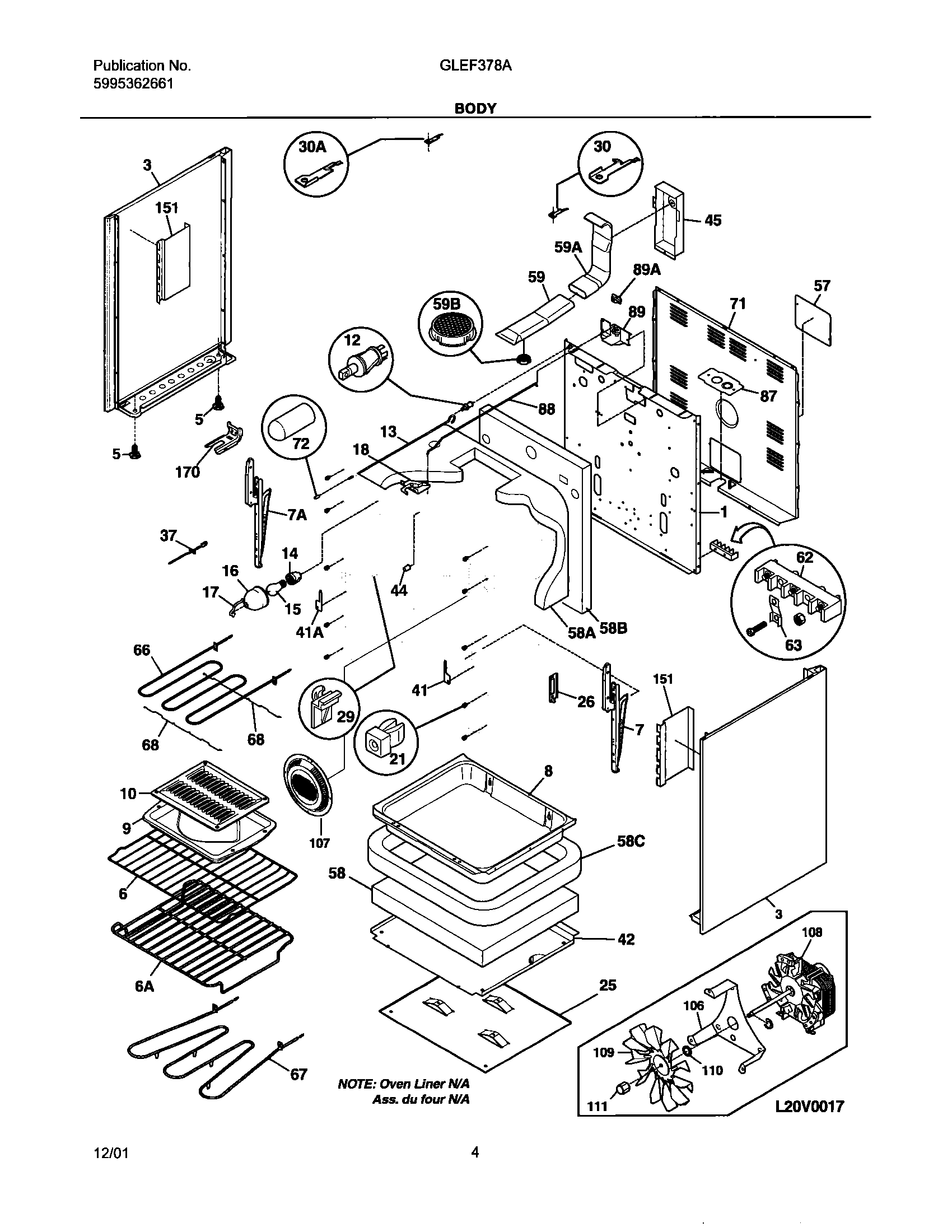

GLEF378ABC 05 – BODY

GLEF378ABC 05 – BODY

Written by

in

GLEF378ABC 05 – BODY

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NIWCI 316085600
NI316231800 Frigidaire Cover
NIWCI 5303280311
NIWCI 316253215
NI316205500 Frigidaire Oven Nut
NI5308014215 Frigidaire Oven Screw
NI5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NI316021105 Frigidaire Oven Screw
NIScrew,cup pt ,8-18 x 0.375 ,chrome
1WCI 316201300
3WCI 316230104
3WCI 316230105
5WCI 316129200
6AWCI 316214401
6316067902 Frigidaire Oven Rack
7AWCI 316212901
7316216500 Frigidaire P-1 Hinge Oven Door Rh
8PANEL, SUMP, OVEN BOTTOM
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316238800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316213900
21SPACER-BODYSIDE, (8)
25WCI 3200848
26316206300 Frigidaire Oven Support
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30AWCI 316217701
30316217700 Frigidaire Oven Bracket
37316233903 Frigidaire Range Oven Temperature Sensor
41AWCI 316233500
41WCI 316233400
42WCI 316206200
44Spacer,oven door
45316234100 Frigidaire Oven Shield
57WCI 316081100
58BWCI 316240102
58CWCI 316240400
58AINSULATION, OVEN WRAPPER
58WCI 316240300
59B316247300 Frigidaire Oven Catalyst
59316208201 Frigidaire Oven Tube
59A316208304 Frigidaire Oven Tube
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
66BROIL ELEMENT
67316202200 Frigidaire Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015810
72WCI 316234500
87316081200 Frigidaire Oven Bracket
88316203500 Frigidaire Oven Rod
89WCI 316135202
89AWCI 316245800
106WCI 316026600
107316026701 Frigidaire Oven Cover Assembly
108WCI 316136300
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
110316008401 Frigidaire Washer P-1
111316136600 Frigidaire Oven Range Lock Nut
151WCI 316239300
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170316116000 Frigidaire Screw
170316112500 Frigidaire Oven Template
