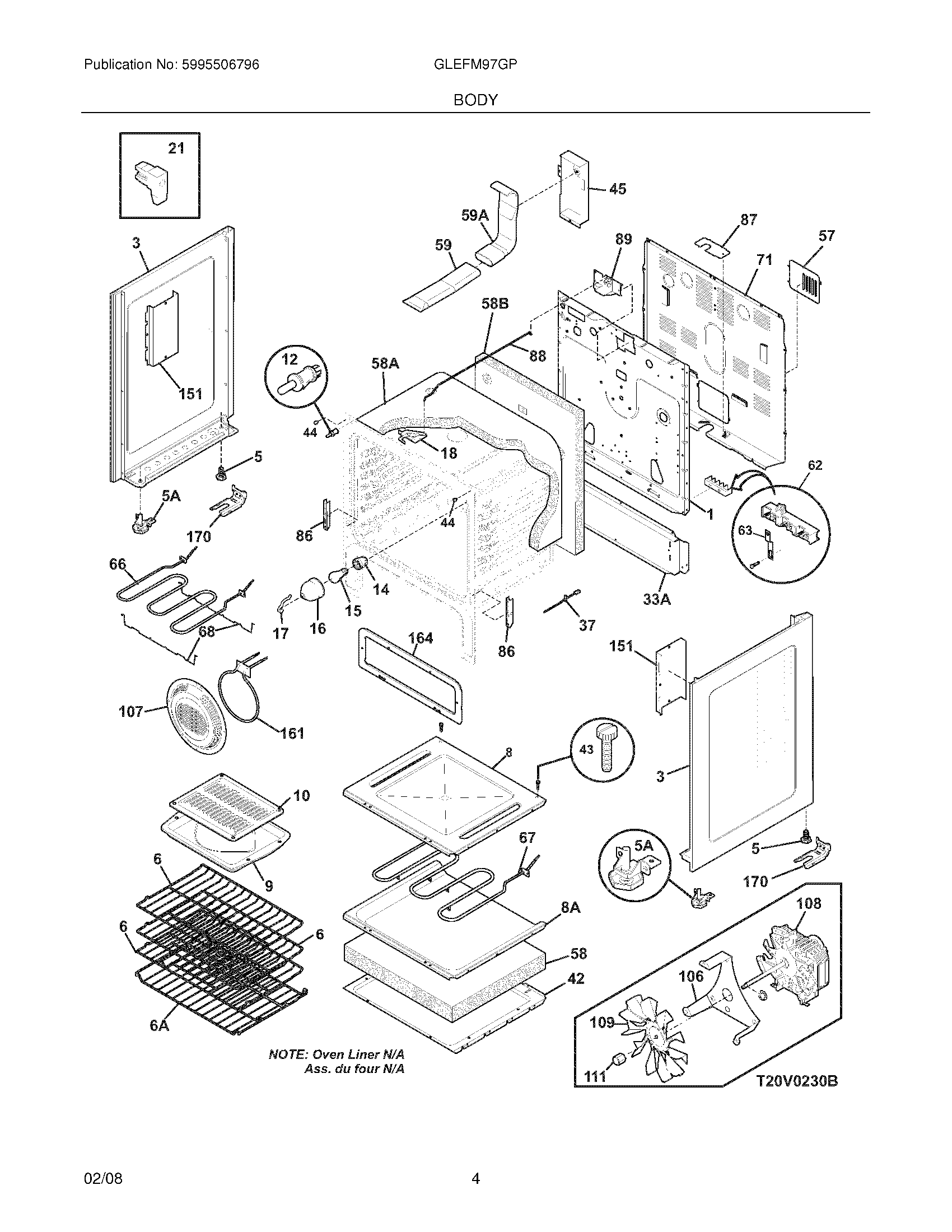

GLEFM97GPWB 05 – BODY

Products

Position	Product
NI	5303285179 Frigidaire Oven Door Screw
NI	316021132 Frigidaire Screw
NI	WCI 316506208
NI	316205500 Frigidaire Oven Nut
NI	5308014215 Frigidaire Oven Screw
NI	316418901 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316542203 Frigidaire Insulator
NI	316021105 Frigidaire Oven Screw
NI	316064600 Frigidaire Oven Support
1	WCI 316401800
3	316400142 Frigidaire Panel
3A	316400143 Frigidaire Panel
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A	5304509869 Frigidaire Oven Leveling Leg Assembly
6A	316496205 Frigidaire Oven Rack
6	316496201 Frigidaire Oven Rack
8A	WCI 316411104
8	316400601 Frigidaire Oven Range Bottom Panel
9	WCI 316081900
10	Insert,broiler panOPTIONAL ACCESS0RY
12	316445500 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	316087500 Frigidaire Oven Retainer
18	316405800 Frigidaire Assembly Latch
21	316408000 Frigidaire Oven Clip Assembly
33A	WCI 316402100
37	316490000 Frigidaire Oven Range Temperature Sensor
42	316407700 Frigidaire Oven Shield
43	316282700 Frigidaire Oven Screw
44	316517600 Frigidaire Oven Spacer
45	316234100 Frigidaire Oven Shield
57	316457801 Frigidaire Oven Cover
58A	316406604 Frigidaire Insulation
58	316403802 Frigidaire Insulation
58B	316406500 Frigidaire Insulation
59A	316208304 Frigidaire Oven Tube
59	316208401 Frigidaire Oven Vent Tube
62	5303935271 Frigidaire Oven Terminal Block
63	5304536404 Frigidaire Strap
66	316430900 Frigidaire Oven Broil Element
67	316413800 Frigidaire Oven Range Bake Element
68	316429100 Frigidaire Oven Support Bracket
71	WCI 316422304
86	316441300 Frigidaire Receptacle
87	316081200 Frigidaire Oven Bracket
88	316203500 Frigidaire Oven Rod
89	MOTOR
106	316404100 Frigidaire Oven Bracket
107	316026701 Frigidaire Oven Cover Assembly
108	5304467898 Frigidaire Oven Kit Assembly
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
151	WCI 316404600
161	316211603 Frigidaire Oven Element
164	WCI 316410301
170	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170	316116000 Frigidaire Screw
170	316112500 Frigidaire Oven Template
