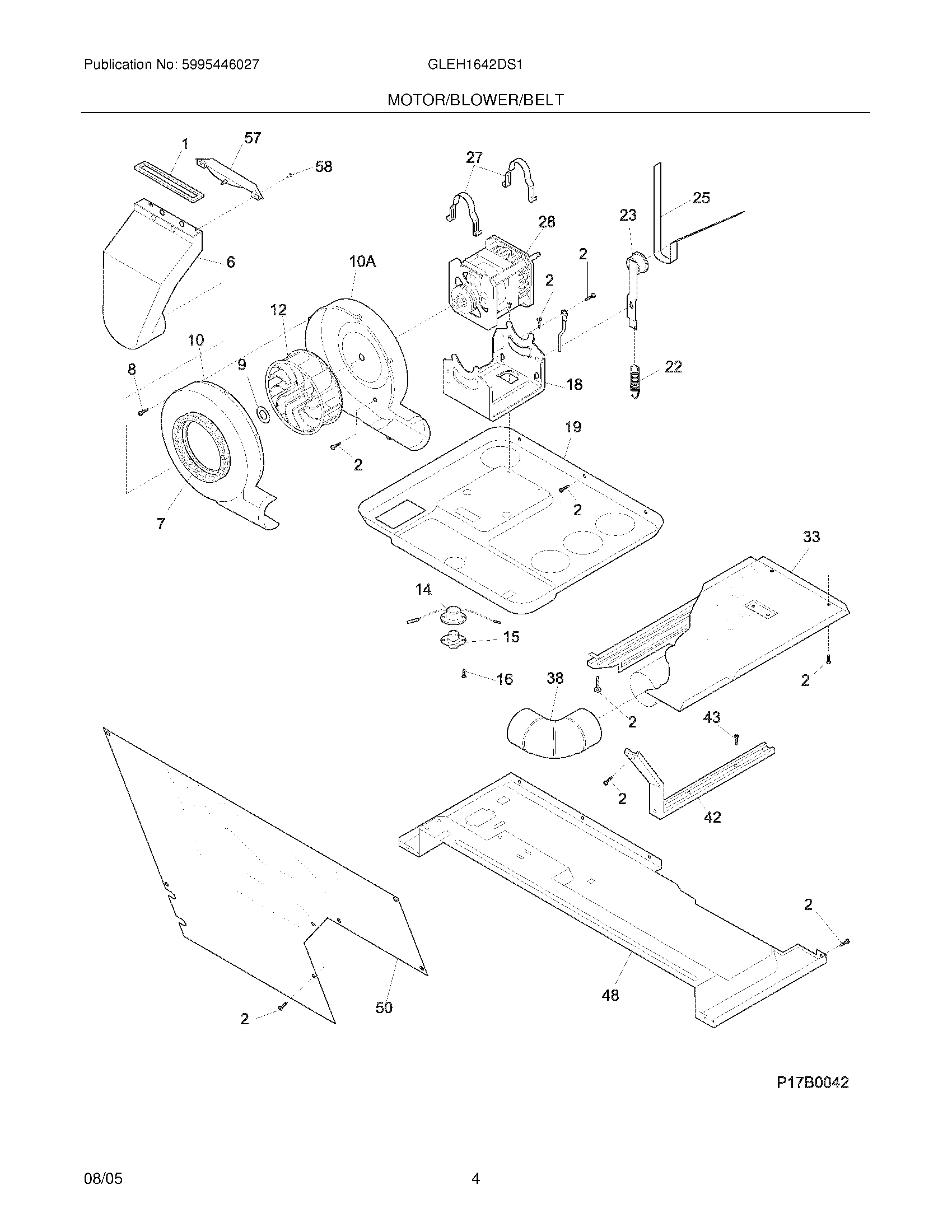

GLEH1642DS1 05 – MOTOR/BLOWER/BELT

Products

Position	Product
NI	131453000 Frigidaire Bushing
1	131295200 Frigidaire Seal
6	5304521121 Frigidaire Duct
7	3204490 Frigidaire Seal
8	SCREW (6)
9	5304488479 Frigidaire Washer Hose Clamp
10	5304485558 Frigidaire Blower Housing Assembly, Front & Rear
12	BLOWER WHEEL
14	WCI 131658102
15	3204307 Frigidaire Dryer Thermostat Control, L135
16	134178901 Frigidaire Screw
18	CRADLE & STUD
19	WCI 131363901
22	3205241 Frigidaire Idler Spring
23	IDLER ARM ASSY
25	BELT-DRYER LC
27	134242400 Frigidaire Washer Clamp Assembly
28	134196602 Frigidaire Washer Dryer Motor
33	WCI 131731400
38	ELBOW
42	WCI 5304439185
43	WCI 134305100
48	137455500 Frigidaire Lower Pan Assembly
50	SAFETY COVER
57	131729301 Frigidaire Cover
58	131168200 Frigidaire Dryer Screw
