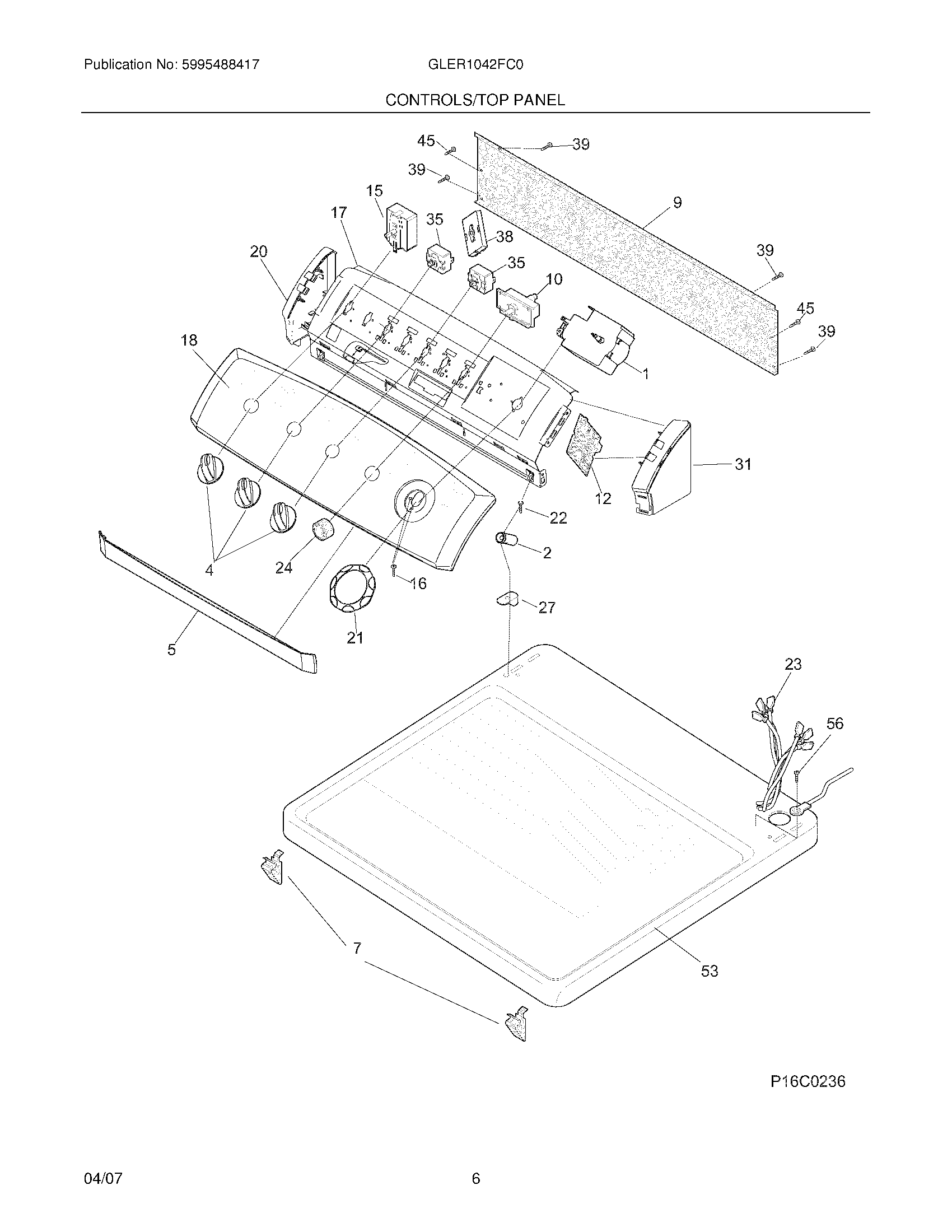

GLER1042FC0 07 – CONTROLS/TOP PANEL

GLER1042FC0 07 – CONTROLS/TOP PANEL

Written by

in

GLER1042FC0 07 – CONTROLS/TOP PANEL

Products

PositionProduct
1131930600 Frigidaire Dryer Timer P1 "T"
2WCI 134096100
4WCI 134034912
5WCI 134019920
73205821 Frigidaire Clip
9WCI 131992900
10131469000 Frigidaire Switch-Push/Start P1
12WCI 134216300
15WCI 134398600
16218359202 Frigidaire Refrigerator Screw
17WCI 131993040
18WCI 134875700
20WCI 134019621
21134886700 Frigidaire Dryer Timer Knob
22WCI 131266330
23Harness-FSD TRHZ elec
24KNOB-START SWITCH, BLACK
27CLIP-CONSOLE MTG
31WCI 134019620
35Switch,2 position
38WCI 131959200
39131168200 Frigidaire Dryer Screw
45131205100 Frigidaire Screw
53WCI 134086802
56131243800 Frigidaire Screw
