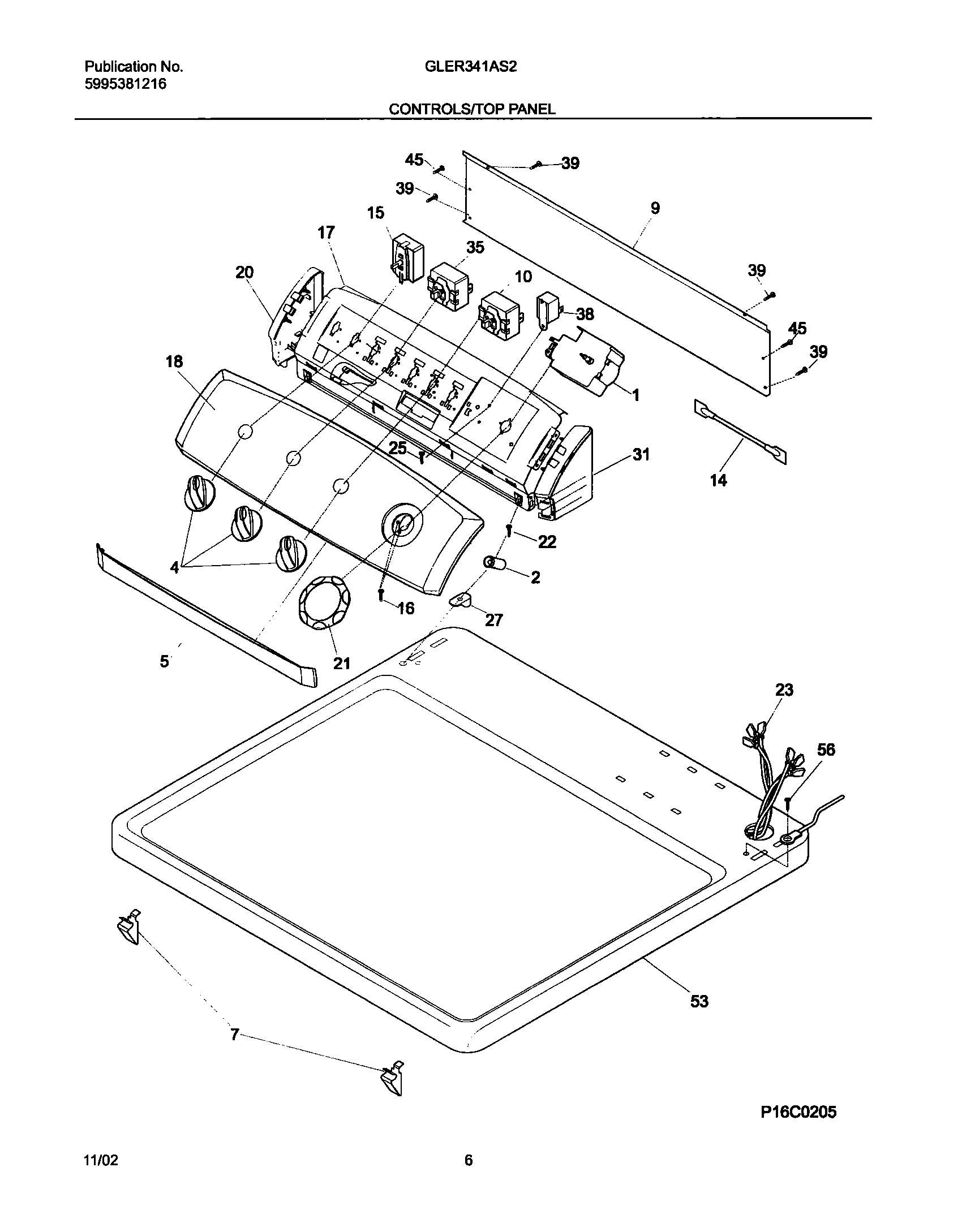

GLER341AS2 07 – CONTROLS/TOP PANEL

Products

PositionProduct
NIWCI 131629600
1131719100 Frigidaire Timer Assembly
2WCI 134096100
4134844410 Frigidaire Washer Dryer Selector Knob White
5WCI 134019900
73205821 Frigidaire Clip
9WCI 131992900
10134398300 Frigidaire Washer Dryer Turn-to-Start Switch
14RESISTOR-POWER, 4.4K
15WCI 131048100
16218359202 Frigidaire Refrigerator Screw
17Bracket,control mtg.
18WCI 134152300
20WCI 134019610
21134886700 Frigidaire Dryer Timer Knob
22WCI 131266300
23Wiring Harness
255303015671 Frigidaire Bracket Termination Screw
27CLIP-CONSOLE MTG
31WCI 134019600
35Switch,2 position
38WCI 131629400
39131168200 Frigidaire Dryer Screw
45131205100 Frigidaire Screw
53WCI 134086802
56131243800 Frigidaire Screw
