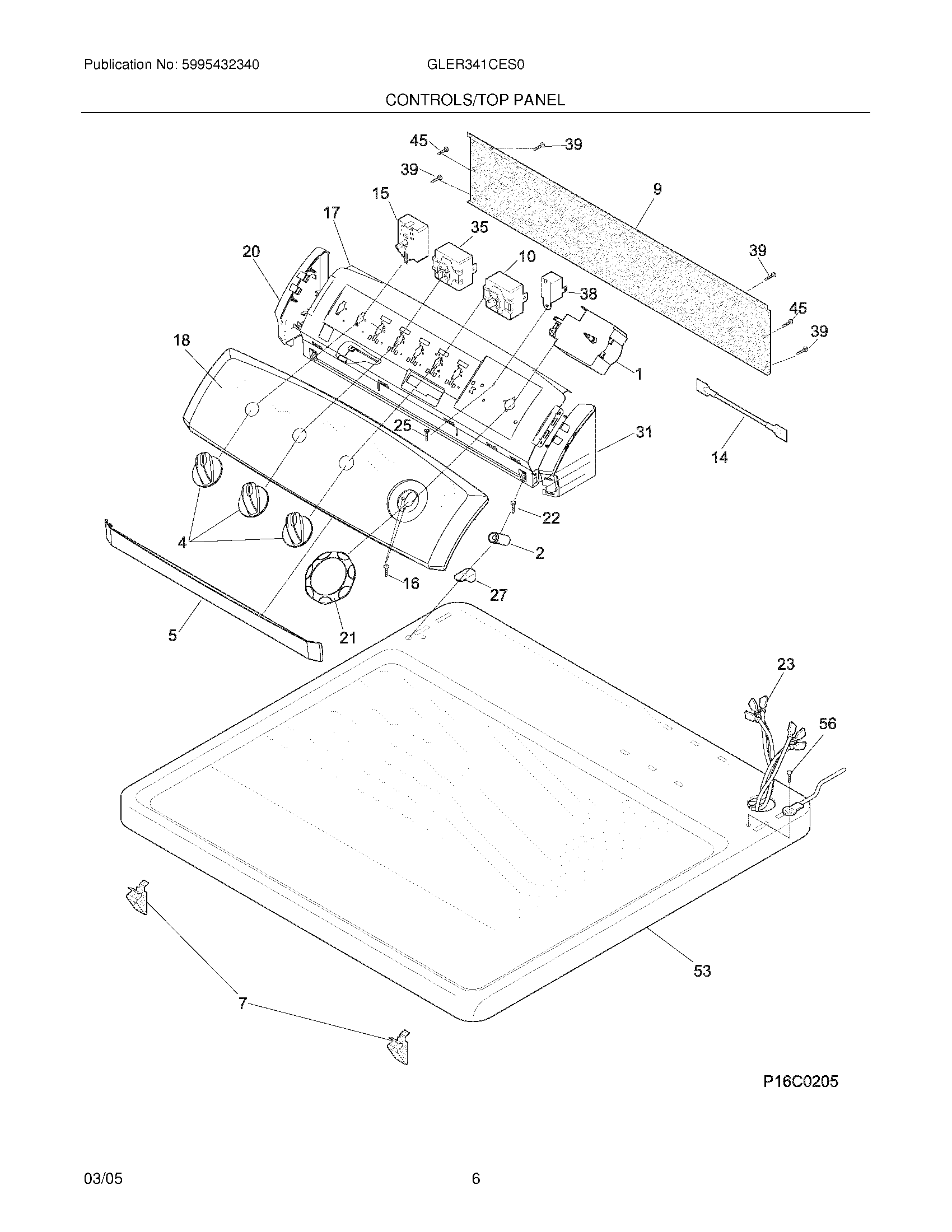

GLER341CES0 07 – CONTROLS/TOP PANEL

Products

Position	Product
NI	WCI 134395000
NI	WCI 131629600
NI	134101400 Frigidaire Dryer Kit Terminal Block
1	131719100 Frigidaire Timer Assembly
2	WCI 134096100
4	134844410 Frigidaire Washer Dryer Selector Knob White
5	WCI 134019900
7	3205821 Frigidaire Clip
9	WCI 131992900
10	134398300 Frigidaire Washer Dryer Turn-to-Start Switch
14	WCI 134446800
15	WCI 131048100
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131993040
18	WCI 134152300
20	WCI 134019610
21	134886700 Frigidaire Dryer Timer Knob
22	WCI 131266330
23	Wiring Harness
25	5303015671 Frigidaire Bracket Termination Screw
27	CLIP-CONSOLE MTG
31	WCI 134019600
35	Switch,2 position
38	WCI 131629400
39	131168200 Frigidaire Dryer Screw
45	131205100 Frigidaire Screw
53	WCI 134086802
56	131243800 Frigidaire Screw
