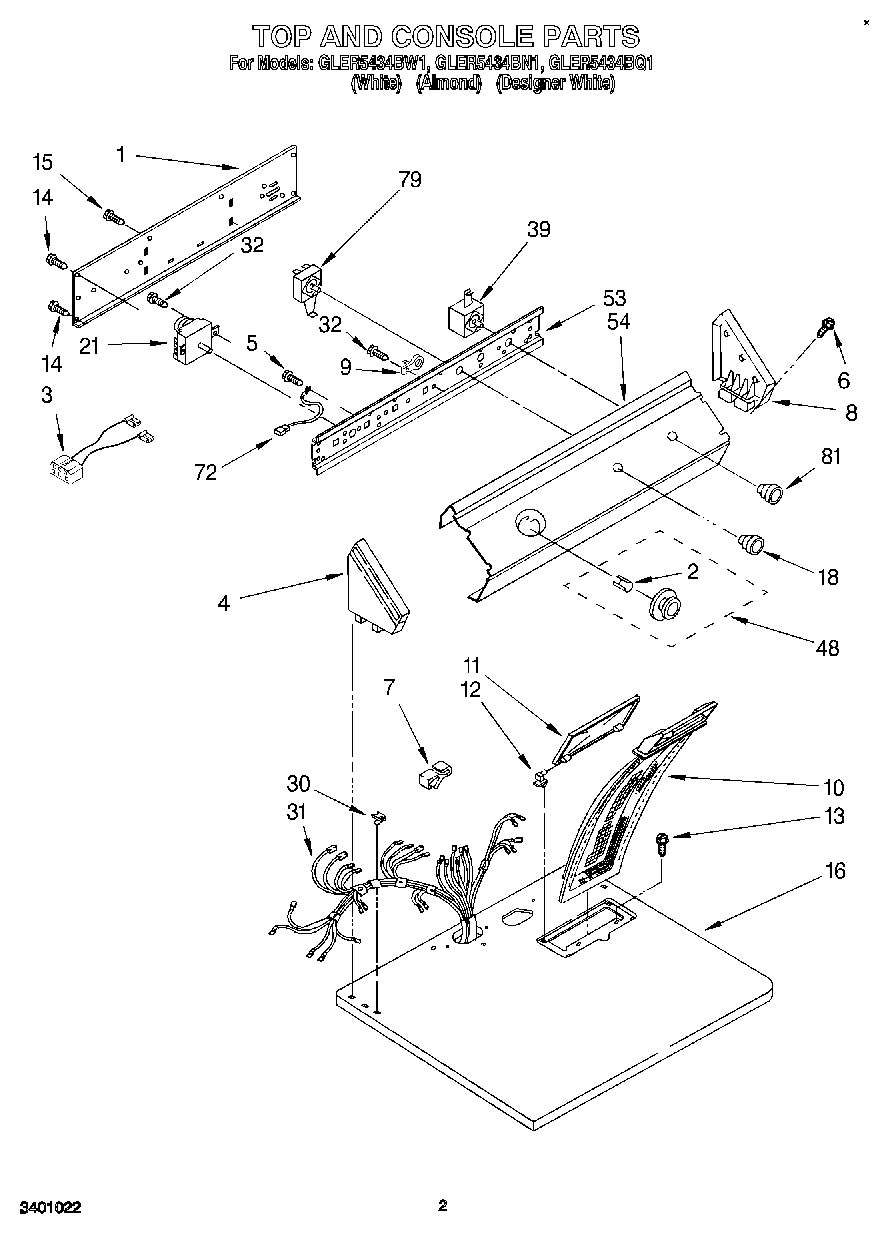

GLER5434BQ1 02 – TOP AND CONSOLE, LIT/OPTIONAL

GLER5434BQ1 02 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

GLER5434BQ1 02 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Dryer
Label, Operating Instructions
Almond (Uncut)
Instructions, Installation
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
WPL LIT3401022
WPL LIT3401070
Gu
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
1Panel, Rear Console
2WP688805 Whirlpool Spring Clip
38283286 Whirlpool Wire Harness
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Almond)
5WP3351614 Whirlpool Screw
6WP388326 Whirlpool Screw
7Clip, Retainer
8Cap, End (R.H.) (White)
8Cap, End (R.H.) (Almond)
9279872 Whirlpool Resistor
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP489069 Whirlpool Compactor Screw
15WP693995 Whirlpool Screw
16Top (White)
16Top (Almond)
18KNOB
18WP3957796 Whirlpool Knob
21WP3396215 Whirlpool Timer
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring (Includes 3397659 Terminal Block)
32WPW10139210 Whirlpool Screw
39WP3395382 Whirlpool Push To Start Switch
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Designer White)
54Panel, Control (Almond)
72Wire, Ground
79Switch, Temperature
81WP3957800 Whirlpool Knob
81Knob, Push To Start
