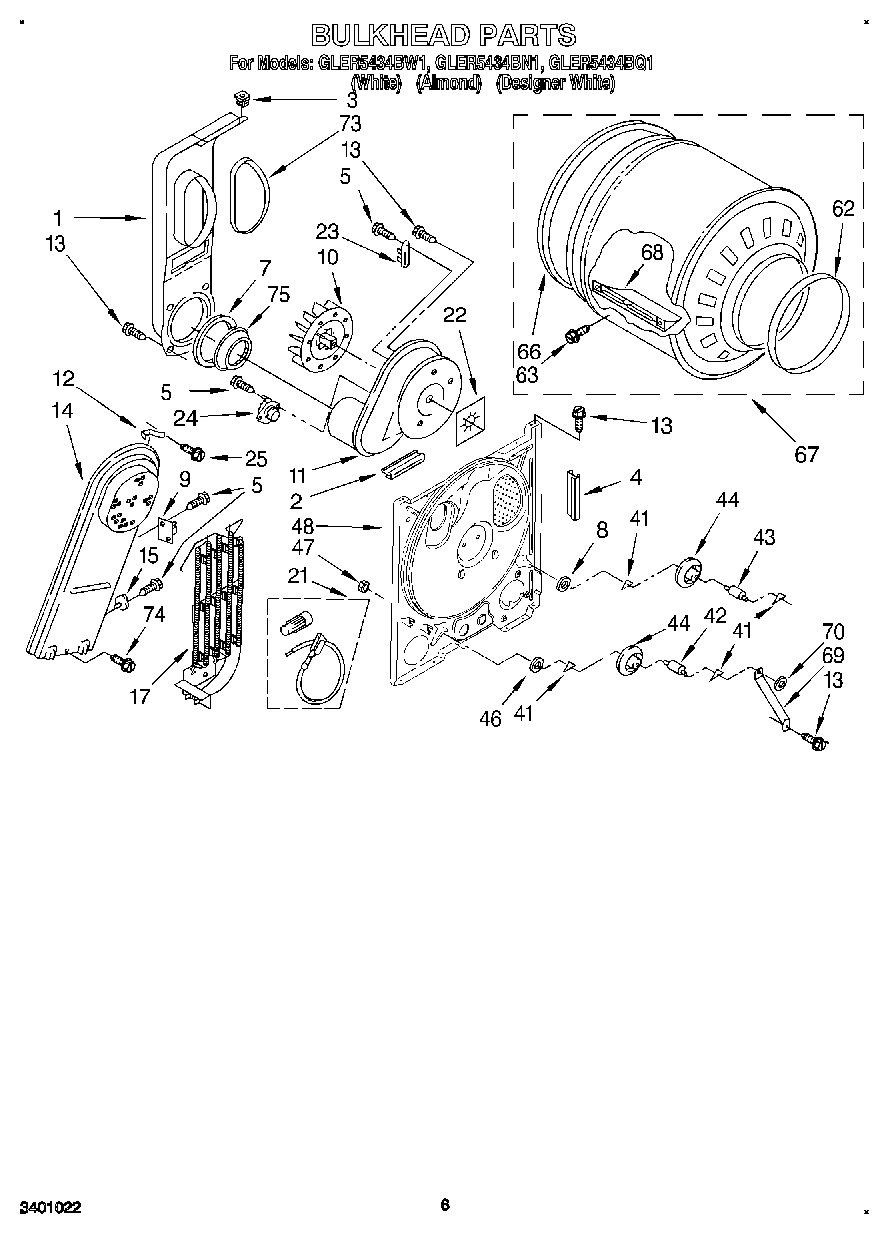

GLER5434BQ1 04 – BULKHEAD

Products

Position	Product
1	279505 Whirlpool Chute
2	686889 Whirlpool Pad
3	98460 Whirlpool Nut
5	WP90767 Whirlpool Screw
7	W11415783 Whirlpool Seal
8	WP3388703 Whirlpool Washer
9	279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10	WP694089 Whirlpool Dryer Blower Wheel
11	Housing, Blower
12	279771 Whirlpool Clip
14	Box, Heater
15	279054 Whirlpool Dryer High Limit Thermostat L290 3W
17	Element, Heater
21	279457 Whirlpool Dryer Heating Element Wide Spade Connection
22	Seal, Blower
23	WP3392519 Whirlpool Dryer Thermal Fuse
24	WP3387137 Whirlpool Thermostat
25	WP489463 Whirlpool Refrigerator Screw
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
46	WP348197 Whirlpool Washer Assembly
47	WP3359452 Whirlpool Nut
48	Bulkhead
62	WP3394509 Whirlpool Bearing Ring
63	WPW10109200 Whirlpool Screw
66	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67	697760 Whirlpool Drum Assembly Primary OS2
68	WP342847 Whirlpool Drum Baffle
69	Bracket, Support
70	WP90296 Whirlpool Clip
73	SEAL
74	SCREW
75	W11233063 Whirlpool Shield Assembly
