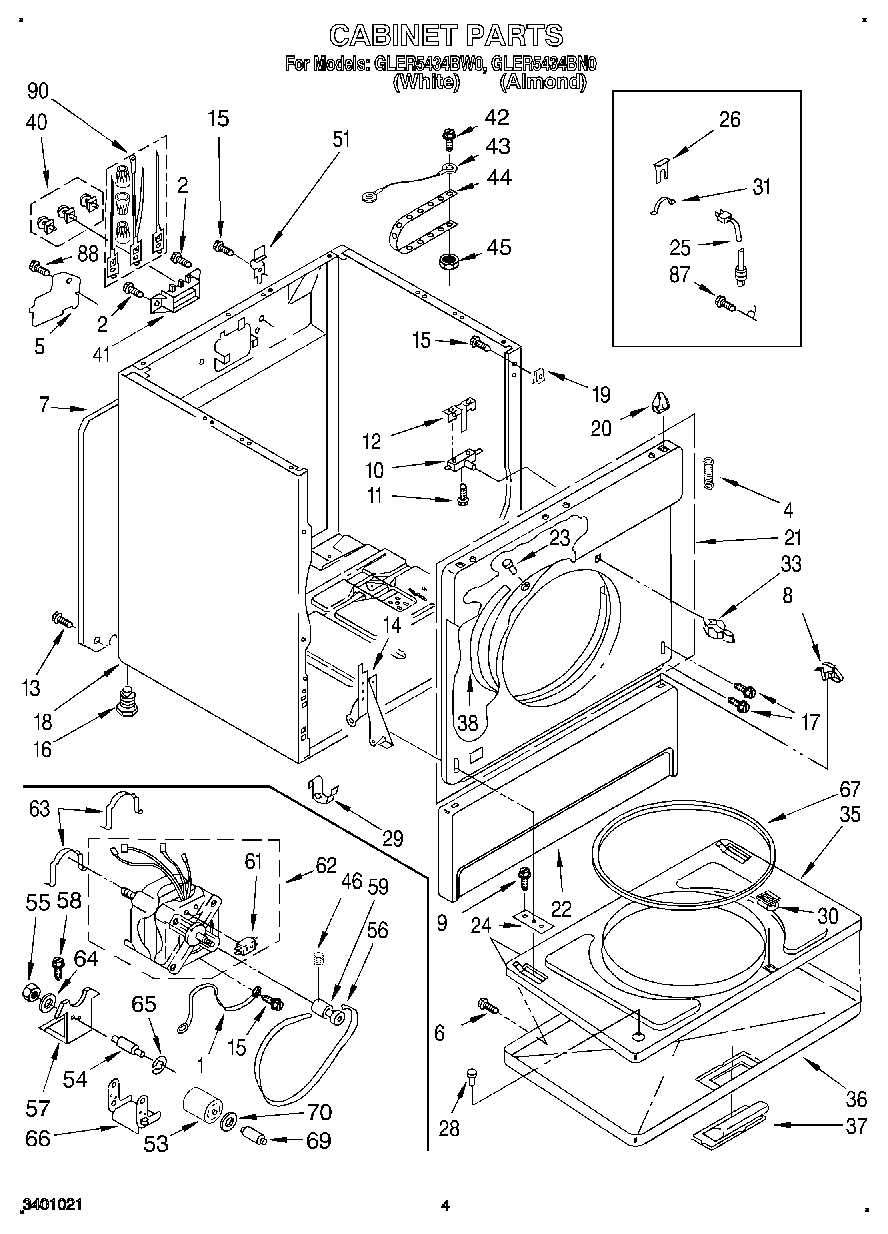

GLER5434BW0 03 – CABINET

GLER5434BW0 03 – CABINET

Written by

in

GLER5434BW0 03 – CABINET

Products

PositionProduct
1Wire, Ground (Motor)
4Spring, Door (2)
5W11736322 Whirlpool Cover Assembly
6WP694091 Whirlpool Screw
7Panel, Rear
8WP3388229 Whirlpool Dryer Spring Clip
9WP308685 Whirlpool Microwave Screw
10W10820036 Whirlpool Door Switch Kit
11WP98129 Whirlpool Screw
12WP691581 Whirlpool Actuator
13WP489069 Whirlpool Compactor Screw
14Hinge, R.H.
14Hinge, L.H.
15SCREW
1649621 Whirlpool Leveling Feet
17Screw, 10-32 x 1/2
18Cabinet (White)
18Cabinet (Almond)
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Front Panel Assembly (Almond)
21Front Panel Assembly (White)
22Panel, Toe (White)
22Panel, Toe (Almond)
23279220 Whirlpool Clip
24W11252547 Whirlpool Clip Assembly
25Cord, Power
26W11712577 Whirlpool Clip
28238614 Whirlpool Bumper Hinge
29WP297092 Whirlpool Clip
30279570 Whirlpool Dryer Door Latch Kit
318528351 Whirlpool Clip
35Door, Rear
36Door, Front (Almond)
36Door, Front (White)
37WP348721 Whirlpool Handle
37Handle, Door (Almond)
38279264 Whirlpool Bearing and Seal Kit
40279393 Whirlpool Terminal Block Screw and Nut Kit
41WP3397659 Whirlpool Terminal Block
42Screw, Ground (10-24 x 1)
43WPL 685449
44Strap, Ground
45W10080180 Whirlpool Nut
46SCREW, SET
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
54WPL 345234
55WPL 124925
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59W11233559 Whirlpool Motor Pulley
61279827 Whirlpool Dryer Drive Motor
62W11618508 Whirlpool Drive Motor
63WP660658 Whirlpool Clamp
64WPL 120382
65WP354987 Whirlpool C-Clip
66WPL 345263
67WP3390733 Whirlpool Door Seal Assembly
69WPL 687121
70WPL 345323
87W10850756 Whirlpool Screw
88WP693995 Whirlpool Screw
90279318 Whirlpool Terminal
