GLES389FQB 09 – DOOR

GLES389FQB 09 – DOOR

Written by

in

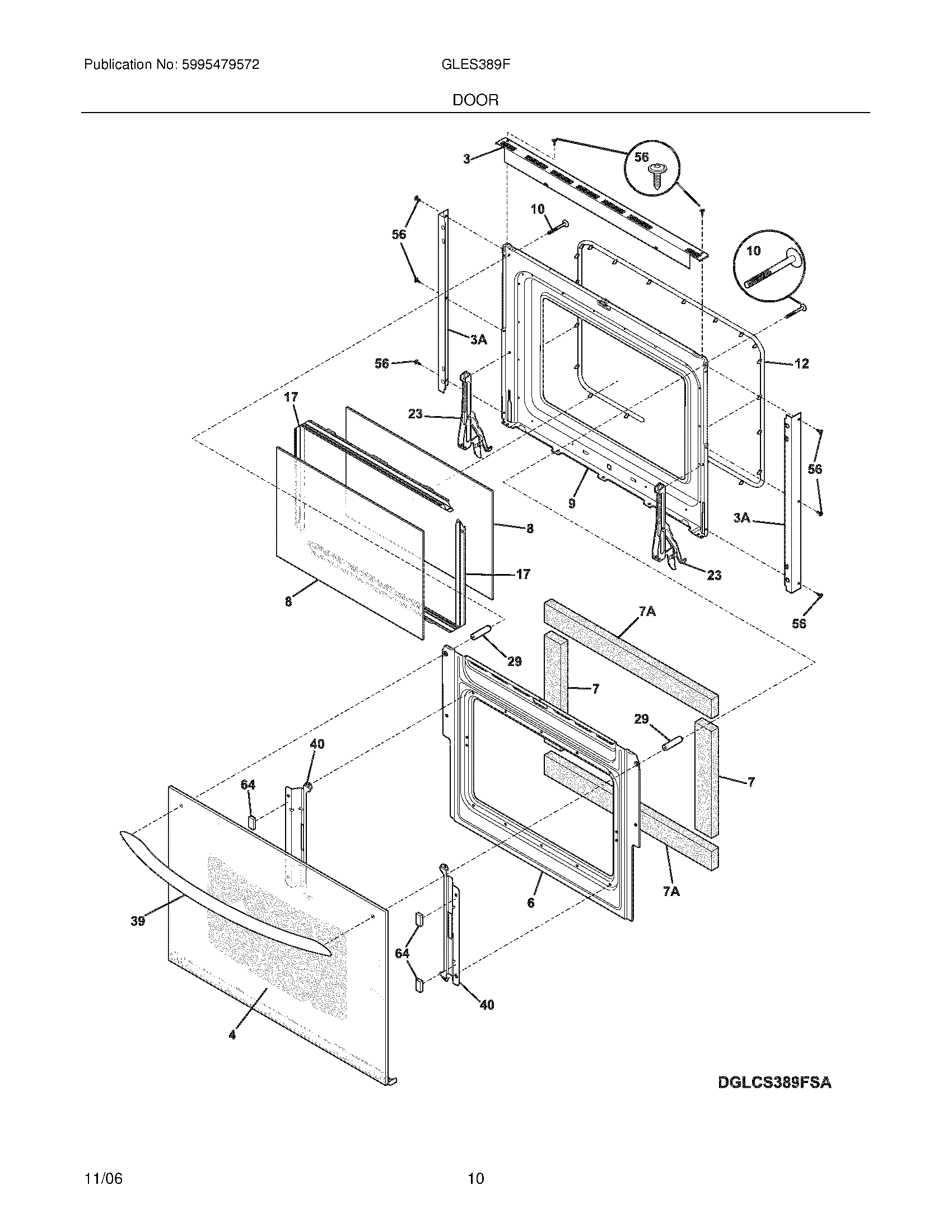

GLES389FQB 09 – DOOR

Products

PositionProduct
NI5304415832 Frigidaire Oven Screw
NI316221001 Frigidaire Oven Label
3WCI 318260201
3AWCI 318260401
4WCI 318261302
6WCI 318260520
7A318372016 Frigidaire Insulation
85304503232 Frigidaire Oven Inner Door Glass
9WCI 318259601
10SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81
12318053120 Frigidaire Oven Range Door Seal
175304504811 Frigidaire Glass Spacer
23WCI 318024722
29WCI 318014402
39WCI 5304457013
40318382302 Frigidaire Bracket
565304436875 Frigidaire Oven Screw
64318165800 Frigidaire Oven Door Glass Spacer with Screw
