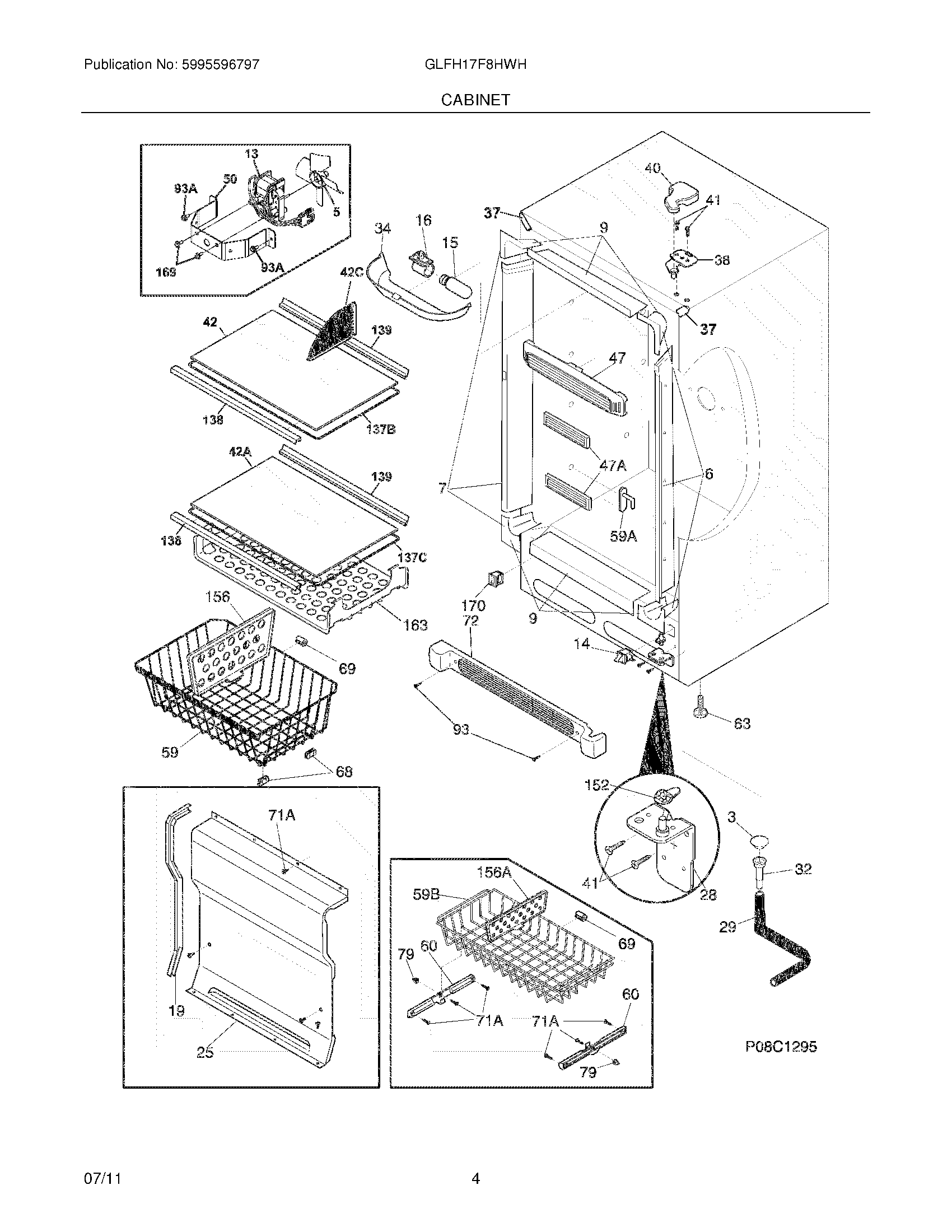

GLFH17F8HWH 05 – CABINET

GLFH17F8HWH 05 – CABINET

Written by

in

GLFH17F8HWH 05 – CABINET

Products

Position	Product
NI	216502400 Frigidaire Refrigerator Grommet Unit
NI	5303321319 Frigidaire Refrigerator White Touch Up Paint
NI	297001704 Frigidaire Refrigerator Insulation
NI	WCI 216327800
NI	Bracket,LH leg levelor
NI	Bracket,RH leg levelor
NI	WCI 297257400
NI	WCI 216910410
NI	297281200 Frigidaire Instruction
3	216503100 Frigidaire Refrigerator Screen-Drain
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 297200600
7	WCI 297200800
9	297200100 Frigidaire Refrigerator W/Corner Breaker Kit
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15	5304517886 Frigidaire Refrigerator Light
16	297139500 Frigidaire Refrigerator Socket
19	216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
25	WCI 297099251
28	WCI 297179300
29	5304512272 Frigidaire Hose Drain
32	5304511843 Frigidaire Refrigerator Sleeve
34	WCI 297184400
37	297273904 Frigidaire Refrigerator Corner Cabinet Trim
38	WCI 297154600
40	WCI 297154701
41	240578902 Frigidaire Screw Mounting Hinge
42C	WCI 297183802
42	WCI 297166800
42A	WCI 297166801
47A	Diffuser,air ,blue ,(2)
47	WCI 297192902
50	216394050 Frigidaire Refrigerator Bracket
59	WCI 297344000
59A	STOP-BASKET, (2)
59B	WCI 297343800
60	297013500 Frigidaire Refrigerator Slide
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
68	08009560 Frigidaire 0 Basket Glide
69	5305878546 Frigidaire Refrigerator Bumper-Basket
71A	Screw,8-18AB x.470 QX
72	WCI 297198900
79	301036 Frigidaire Refrigerator Insert Nut
93	216858001 Frigidaire Refrigerator Screw
93A	241853202 Frigidaire Refrigerator Screw
137	WCI 297166901
137	Frame
138	WCI 297203602
139	WCI 297218202
152	216974600 Frigidaire Refrigerator Bearing
156	WCI 297202302
156	WCI 297202502
163	WCI 297185302
169	216912401 Frigidaire Refrigerator Screw
170	297280400 Frigidaire Refrigerator Valve
