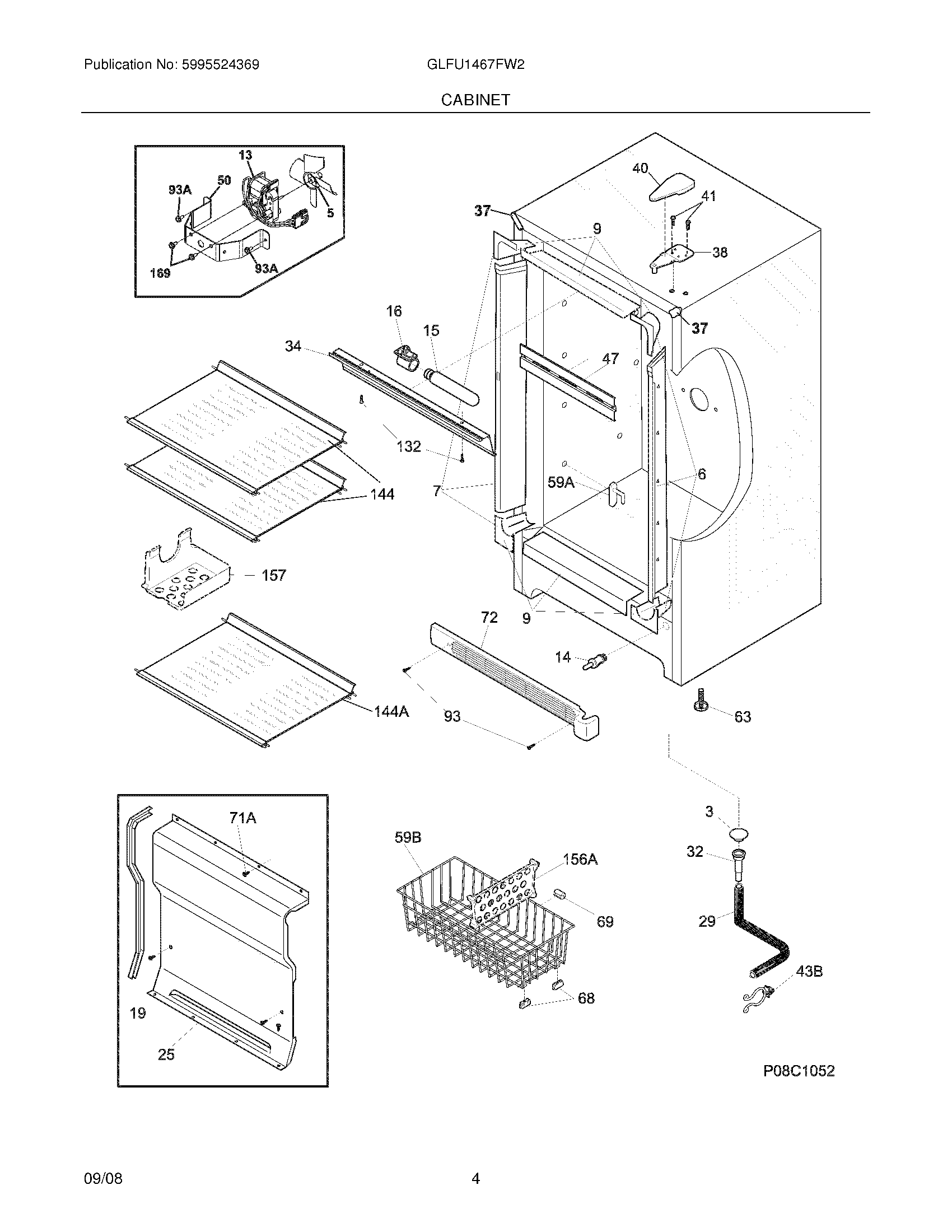

GLFU1467FW2 05 – CABINET

Products

Position	Product
NI	WCI 297088700
NI	5303321319 Frigidaire Refrigerator White Touch Up Paint
NI	216502400 Frigidaire Refrigerator Grommet Unit
NI	WCI 216795313
NI	297001704 Frigidaire Refrigerator Insulation
3	216503100 Frigidaire Refrigerator Screen-Drain
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 297200300
7	WCI 297200500
9	WCI 297200200
13	EVAP FAN MOTOR – 115V
14	297243800 Frigidaire Refrigerator Switch
15	5304517886 Frigidaire Refrigerator Light
16	297139500 Frigidaire Refrigerator Socket
19	WCI 216204900
25	WCI 297098651
29	5304510365 Frigidaire Refrigerator Drain Hose
32	5304511843 Frigidaire Refrigerator Sleeve
34	WCI 216816220
37	5303918606 Frigidaire Refrigerator Corner Cabinet Trim
38	297283803 Frigidaire Freezer Upper Door Hinge
40	297164400 Frigidaire Refrigerator Hinge Cover
41	240578902 Frigidaire Screw Mounting Hinge
43B	297315800 Frigidaire Refrigerator Clip
47	297192903 Frigidaire Refrigerator Baffle
50	216394050 Frigidaire Refrigerator Bracket
59A	STOP-BASKET, (2)
59B	WCI 216826400
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
68	08009560 Frigidaire 0 Basket Glide
69	5305878546 Frigidaire Refrigerator Bumper-Basket
71A	WCI 297146800
72	WCI 297036800
93A	216629601 Frigidaire Refrigerator Screw
93	216858001 Frigidaire Refrigerator Screw
132	WCI 5304460601
144	WCI 297178103
144	WCI 297178104
156	WCI 297215600
157	WCI 297071900
169	216912401 Frigidaire Refrigerator Screw
