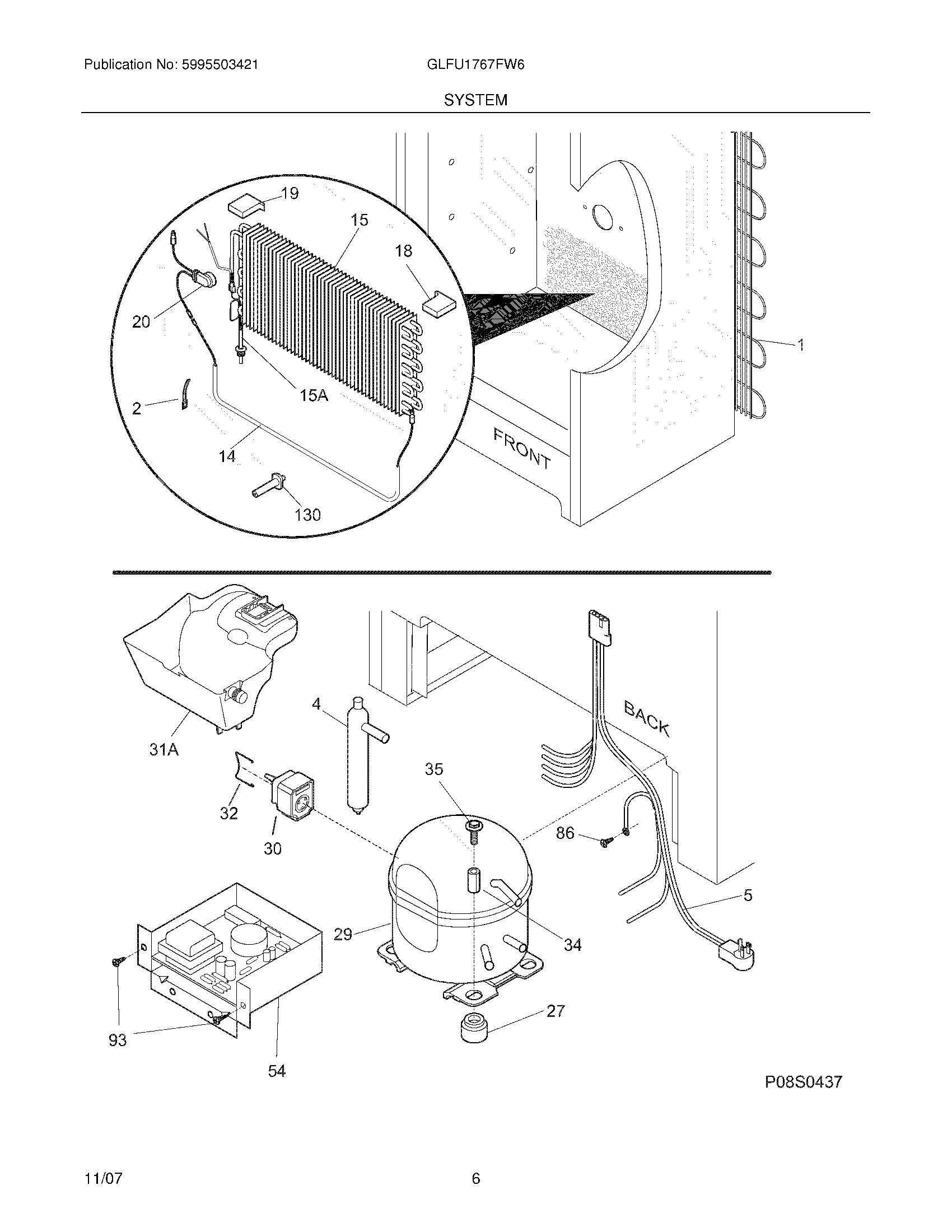

GLFU1767FW6 07 – SYSTEM

GLFU1767FW6 07 – SYSTEM

Written by

in

GLFU1767FW6 07 – SYSTEM

Products

PositionProduct
NIWCI 216502500
NI297018400 Frigidaire Thermistor
NI297366805 Frigidaire Refrigerator Cord
NI297014702 Frigidaire Refrigerator Suction Line Plug
NIWCI 297102800
15300083897 Frigidaire Refrigerator Condenser P1 O/S2
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 297170000
14216730700 Frigidaire Refrigerator Defrost Heater
15297414901 Frigidaire Refrigerator Evaporator
15A216783200 Frigidaire Refrigerator P1-Heat Exchanger
18WCI 297078700
19WCI 297078800
20297216600 Frigidaire Refrigerator Defrost Thermostat
27216498900 Frigidaire Refrigerator Grommet
29No.5304511983 Frigidaire Refrigerator Compressor Assembly Kit
30297051003 Frigidaire Start Relay
32CLAMP, ELEC CONT MTG, COMPRESSOR
34SLEEVE-COMPRESSOR
35WCI 5304460607
54216979700 Frigidaire Refrigerator Electronics
86216036601 Frigidaire Refrigerator Screw
93216858001 Frigidaire Refrigerator Screw
130297244700 Frigidaire Refrigerator Support
