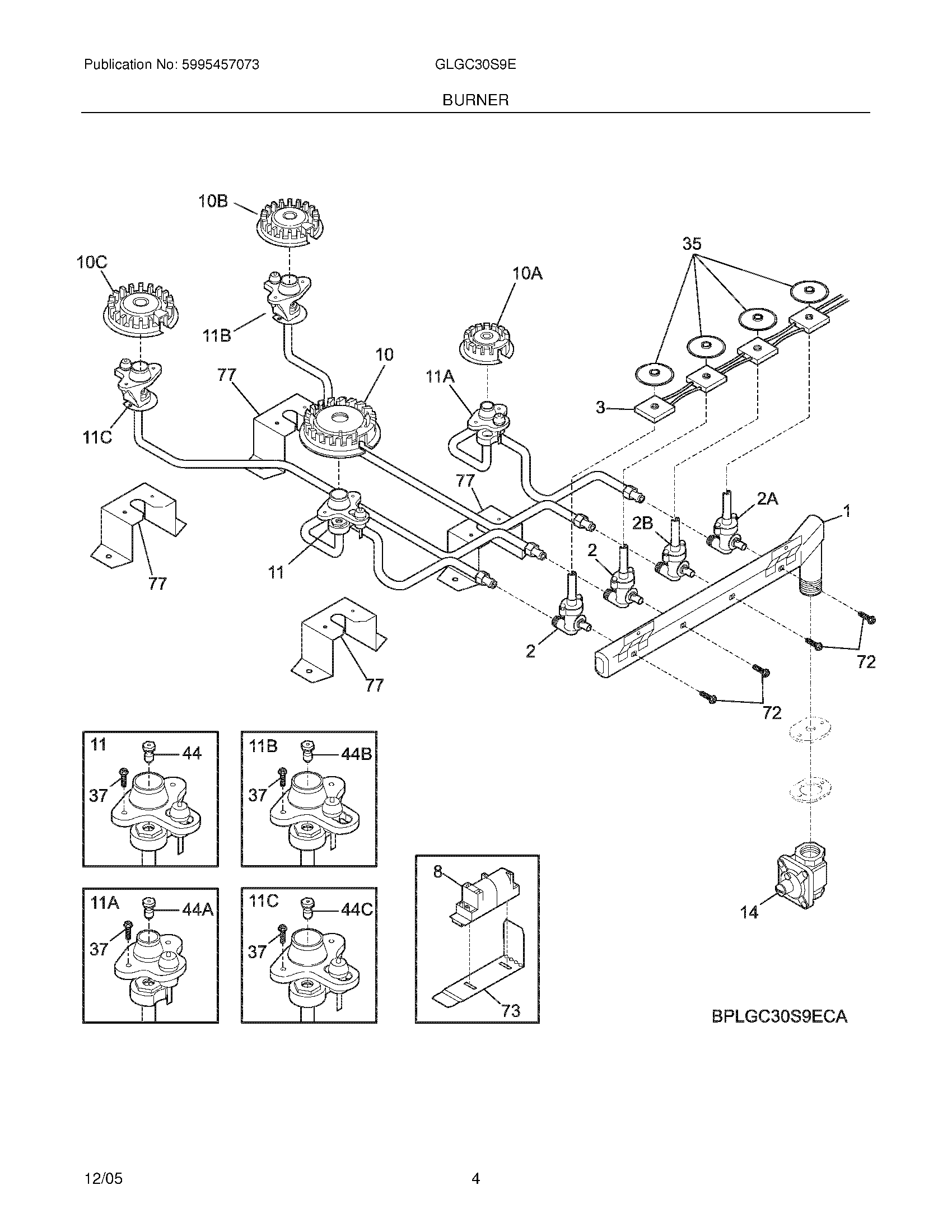

GLGC30S9ESA 05 – BURNER

GLGC30S9ESA 05 – BURNER

Written by

in

GLGC30S9ESA 05 – BURNER

Products

PositionProduct
NI5304403558 Frigidaire Oven Screw
NIWCI 318199742
NIWCI 318127425
NI316524400 Frigidaire Oven Screw
NI5303311174 Frigidaire Oven Screw
1WCI 318177006
2WCI 318087315
2AWCI 318087313
2BWCI 318087314
3318232604 Frigidaire Wiring Harness
85304505695 Frigidaire Oven Module
10CWCI 316212300
10AWCI 316206400
10WCI 316223400
10B316212400 Frigidaire Oven Primary Burner
11BWCI 318221334
11WCI 318221333
11CWCI 318221336
11AWCI 318221332
145308007974 Frigidaire Pressure Regulator
35WCI 318146301
37316240600 Frigidaire Igniter Mounting Screw
44C316237901 Frigidaire Oven Orifice
44B316237902 Frigidaire Orifice Top Burner
44AWCI 316237903
44316237900 Frigidaire Oven Orifice Assembly
72316134300 Frigidaire Oven Screw
73WCI 318024201
77WCI 318192600
