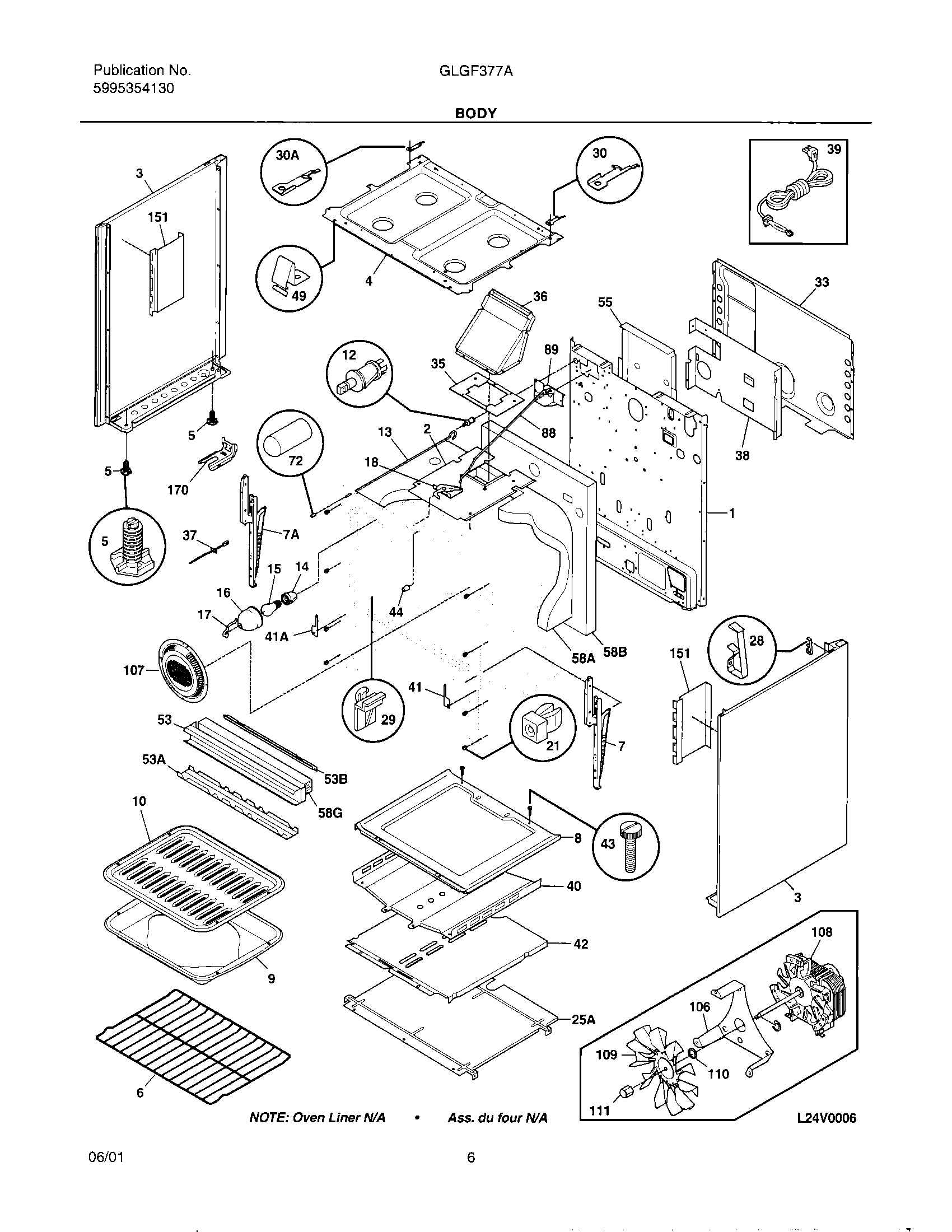

GLGF377AQA 07 – BODY

GLGF377AQA 07 – BODY

Written by

in

GLGF377AQA 07 – BODY

Products

PositionProduct
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NIWCI 5303280311
NI5303271648 Frigidaire Oven Screw
NI316231800 Frigidaire Cover
NISCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
NIWCI 316253401
1WCI 316029416
2SHIELD-OVN TOP
3WCI 316230108
3WCI 316230109
4WCI 316201402
5WCI 316129200
6316067902 Frigidaire Oven Rack
7316216500 Frigidaire P-1 Hinge Oven Door Rh
7WCI 316205001
8PANEL-OVEN BOTTOM
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316238800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316213900
21SPACER-BODYSIDE, (8)
25WCI 5303288580
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30316217700 Frigidaire Oven Bracket
30WCI 316217701
33WCI 316232800
35316542102 Frigidaire Flue Gasket
36WCI 316133002
37316233903 Frigidaire Range Oven Temperature Sensor
38WCI 316051700
395304515659 Frigidaire Oven Power Cord
40WCI 3200836
41WCI 316233400
41WCI 316233500
42WCI 5303288578
43316282700 Frigidaire Oven Screw
44Spacer,oven door
49WCI 316234200
53WCI 316211100
53WCI 5303288579
53WCI 08067992
55WCI 316107800
5808067973 Frigidaire 0 Insulation
58INSULATION, OVEN WRAPPER
58WCI 316218302
72WCI 316234500
88316232702 Frigidaire Rod
89WCI 316135202
106WCI 316026600
107316026701 Frigidaire Oven Cover Assembly
108WCI 316234601
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
110316008401 Frigidaire Washer P-1
111316136600 Frigidaire Oven Range Lock Nut
151WCI 316239300
170316116000 Frigidaire Screw
170316112500 Frigidaire Oven Template
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
