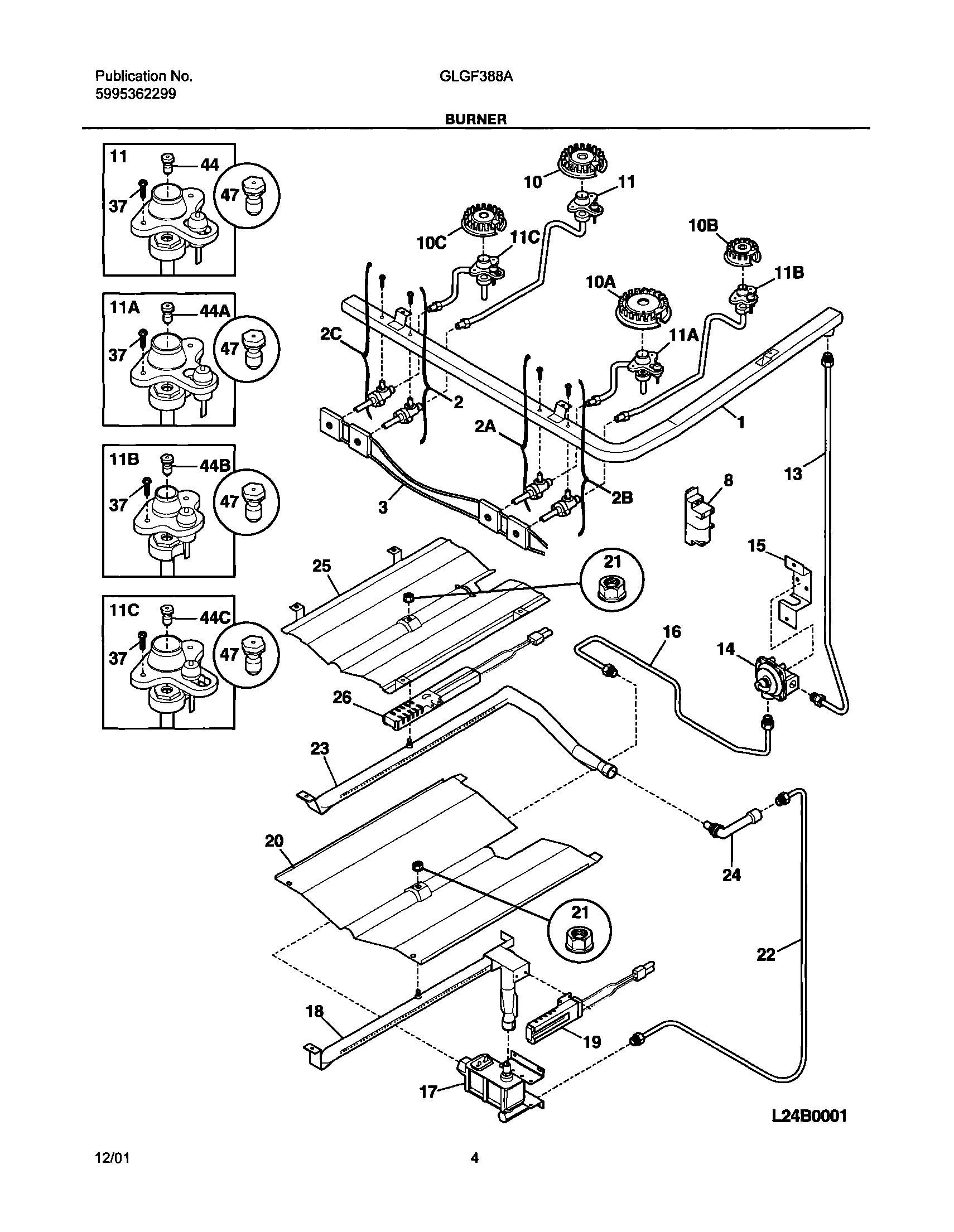

GLGF388ABA 05 – BURNER

Products

Position	Product
NI	316021104 Frigidaire Oven Screw Assembly
NI	316134300 Frigidaire Oven Screw
NI	WCI 316113400
NI	316248105 Frigidaire Instructions /Lp Conversion Kit Ns
NI	WCI 08068018
NI	5303271648 Frigidaire Oven Screw
1	WCI 316204000
2B	WCI 5303935212
2C	WCI 5303935213
2	WCI 5303935210
2A	WCI 5303935211
3	IGNITOR SWITCH WIRE HARNESS
8	5304505695 Frigidaire Oven Module
10C	316212400 Frigidaire Oven Primary Burner
10B	WCI 316212600
10	WCI 316212300
10A	316212500 Frigidaire Oven Burner
11A	WCI 316237802
11C	316237805 Frigidaire Orifice Assembly Igniter
11B	316237707 Frigidaire Igniter/Orifice Assembly
11	WCI 316237702
13	WCI 316207000
14	5304521339 Frigidaire Regulator
15	316091600 Frigidaire Oven Bracket
16	WCI 316065003
17	5303208499 Frigidaire Safety Gas Valve
18	WCI 3131290
19	5303935066 Frigidaire Oven Flat Igniter 17" Leads
20	BAFFLE-OVN BURNER
21	5303013272 Frigidaire Oven Nut
22	WCI 316065002
23	WCI 08067935
24	WCI 316070400
25	WCI 5303210379
26	5303935068 Frigidaire Flat Igniter
37	316240600 Frigidaire Igniter Mounting Screw
44B	WCI 316237903
44A	316237900 Frigidaire Oven Orifice Assembly
44C	316237902 Frigidaire Orifice Top Burner
44	316237901 Frigidaire Oven Orifice
47	GRLP3 Frigidaire Oven LP Conversion Kit
