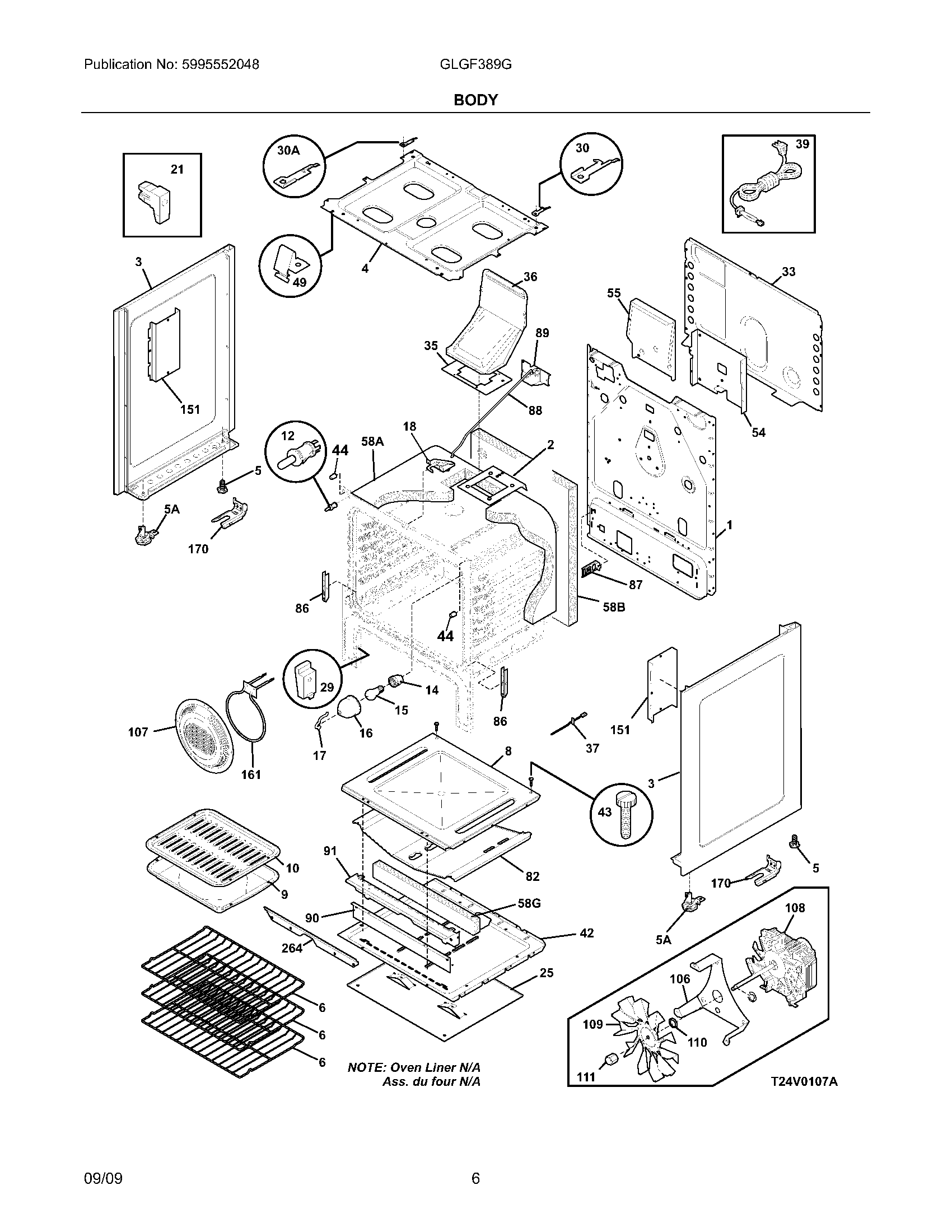

GLGF389GSB 07 – BODY

GLGF389GSB 07 – BODY

Written by

in

GLGF389GSB 07 – BODY

Products

Position	Product
NI	316089500 Frigidaire Oven Screw
NI	316432800 Frigidaire Clip
NI	316418901 Frigidaire Oven Screw
NI	Screw,cup pt ,8-18 x 0.375 ,chrome
NI	316021132 Frigidaire Screw
NI	316021109 Frigidaire Oven Screw
NI	WCI 316512510
NI	5303285179 Frigidaire Oven Door Screw
NI	316021105 Frigidaire Oven Screw
NI	5303271648 Frigidaire Oven Screw
1	316401608 Frigidaire Back
2	316437100 Frigidaire Brace Assembly DSP
3	316400143 Frigidaire Panel
3	316400142 Frigidaire Panel
4	WCI 316201403
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A	5304509869 Frigidaire Oven Leveling Leg Assembly
6	316496201 Frigidaire Oven Rack
8	316400603 Frigidaire Oven Stove Bottom Panel
9	WCI 316081900
10	Insert,broiler panOPTIONAL ACCESS0RY
12	316445500 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	316087500 Frigidaire Oven Retainer
18	316405800 Frigidaire Assembly Latch
21	316408000 Frigidaire Oven Clip Assembly
25	316406200 Frigidaire Oven Shield
29	807047102 Frigidaire Oven Front Drawer Glide
30A	WCI 316217701
30	316217700 Frigidaire Oven Bracket
33	316402500 Frigidaire Oven Shield
35	316542102 Frigidaire Flue Gasket
36	FLUE
37	316490000 Frigidaire Oven Range Temperature Sensor
39	5304534000 Frigidaire Cord
42	316400700 Frigidaire Shield
43	316282700 Frigidaire Oven Screw
44	316517600 Frigidaire Oven Spacer
49	WCI 316234200
54	WCI 316404200
55	5304510473 Frigidaire Shield
58B	WCI 316403600
58A	316403700 Frigidaire Insulation
58G	08067973 Frigidaire 0 Insulation
82	316400801 Frigidaire Oven Shield
86	316441300 Frigidaire Receptacle
87	WCI 316401200
88	316232702 Frigidaire Rod
89	MOTOR
90	WCI 316401100
91	WCI 316401000
106	316404100 Frigidaire Oven Bracket
107	316026701 Frigidaire Oven Cover Assembly
108	5304467897 Frigidaire Oven Kit
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
110	316008401 Frigidaire Washer P-1
111	316136600 Frigidaire Oven Range Lock Nut
151	WCI 316404600
161	316211603 Frigidaire Oven Element
170	316116000 Frigidaire Screw
170	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
264	316404700 Frigidaire Bracket
