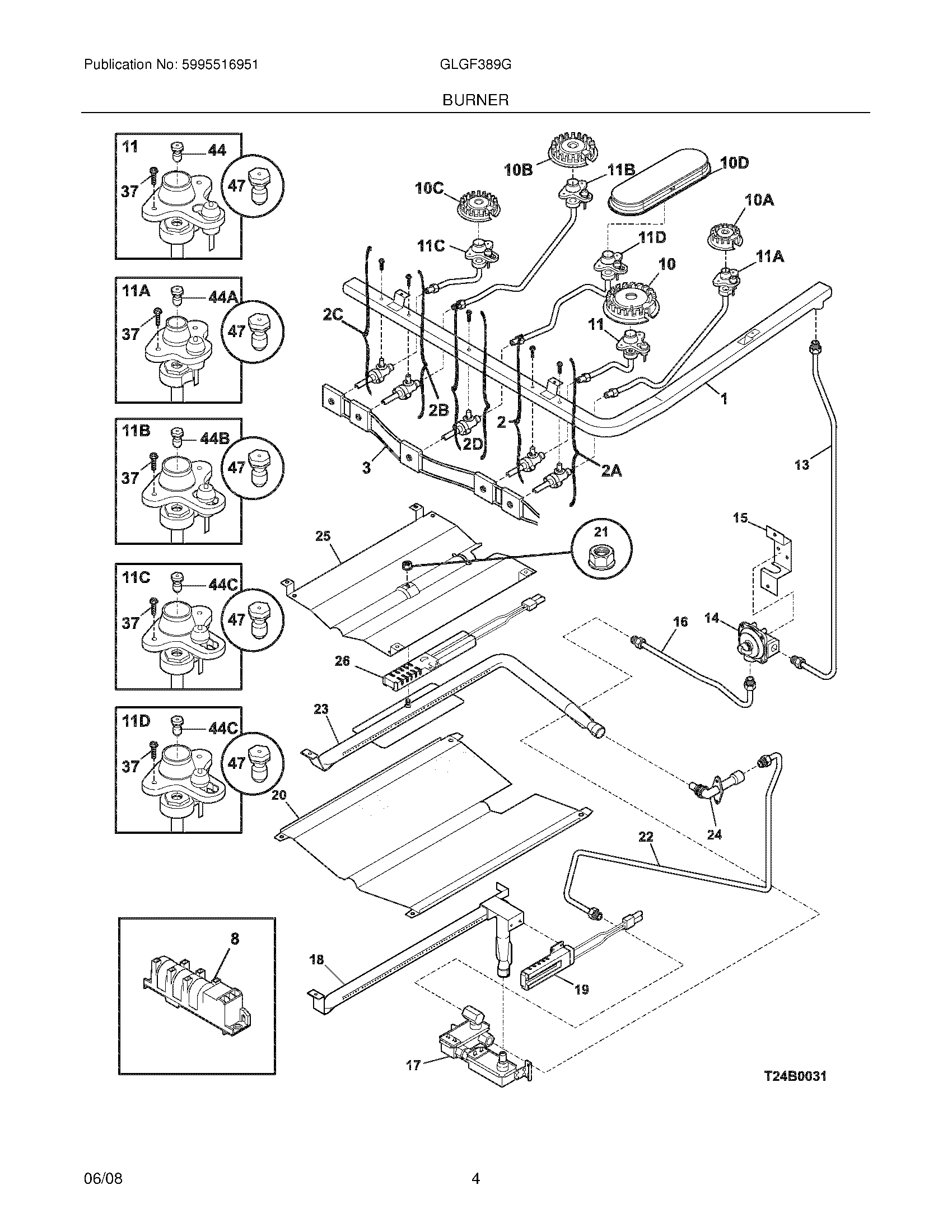

GLGF389GSD 05 – BURNER

GLGF389GSD 05 – BURNER

Written by

in

GLGF389GSD 05 – BURNER

Products

PositionProduct
NI316021104 Frigidaire Oven Screw Assembly
NI316001017 Frigidaire Screw
NIWCI 316064103
NI316248105 Frigidaire Instructions /Lp Conversion Kit Ns
NIWCI 316253702
NI316401500 Frigidaire Oven Cover
NI5303271648 Frigidaire Oven Screw
NI316498100 Frigidaire Shield
NI316215600 Frigidaire Oven Screw
1WCI 316219501
2A316536003 Frigidaire Valve-Top Burner
2B316536001 Frigidaire Oven Valve
2C316536000 Frigidaire Top Burner Valve
2D316536007 Frigidaire Top Burner Valve
2WCI 5303935233
3WCI 316219017
8SPARK MODULE
10Burner,sealed ,17K
10BWCI 316212300
10C316212400 Frigidaire Oven Primary Burner
10DWCI 316532001
10AWCI 316206400
11WCI 316430500
11A316430801 Frigidaire Igniter and Orifice Assembly
11BWCI 316430401
11C316237805 Frigidaire Orifice Assembly Igniter
11D316532601 Frigidaire Igniter/Orifice Assembly
13WCI 316405300
145304521339 Frigidaire Regulator
15316091600 Frigidaire Oven Bracket
165304507348 Frigidaire Oven Tube
17316404901 Frigidaire Oven Valve
18316404400 Frigidaire Oven Burner
195304534663 Frigidaire Igniter
205304519024 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
225304507768 Frigidaire Oven Tube
23WCI 316404300
245304516894 Frigidaire Oven Elbow
25WCI 316401301
26316489401 Frigidaire Igniter Assembly
37316240600 Frigidaire Igniter Mounting Screw
44B316237901 Frigidaire Oven Orifice
44AWCI 316237903
44C316237902 Frigidaire Orifice Top Burner
47GRLP3 Frigidaire Oven LP Conversion Kit
