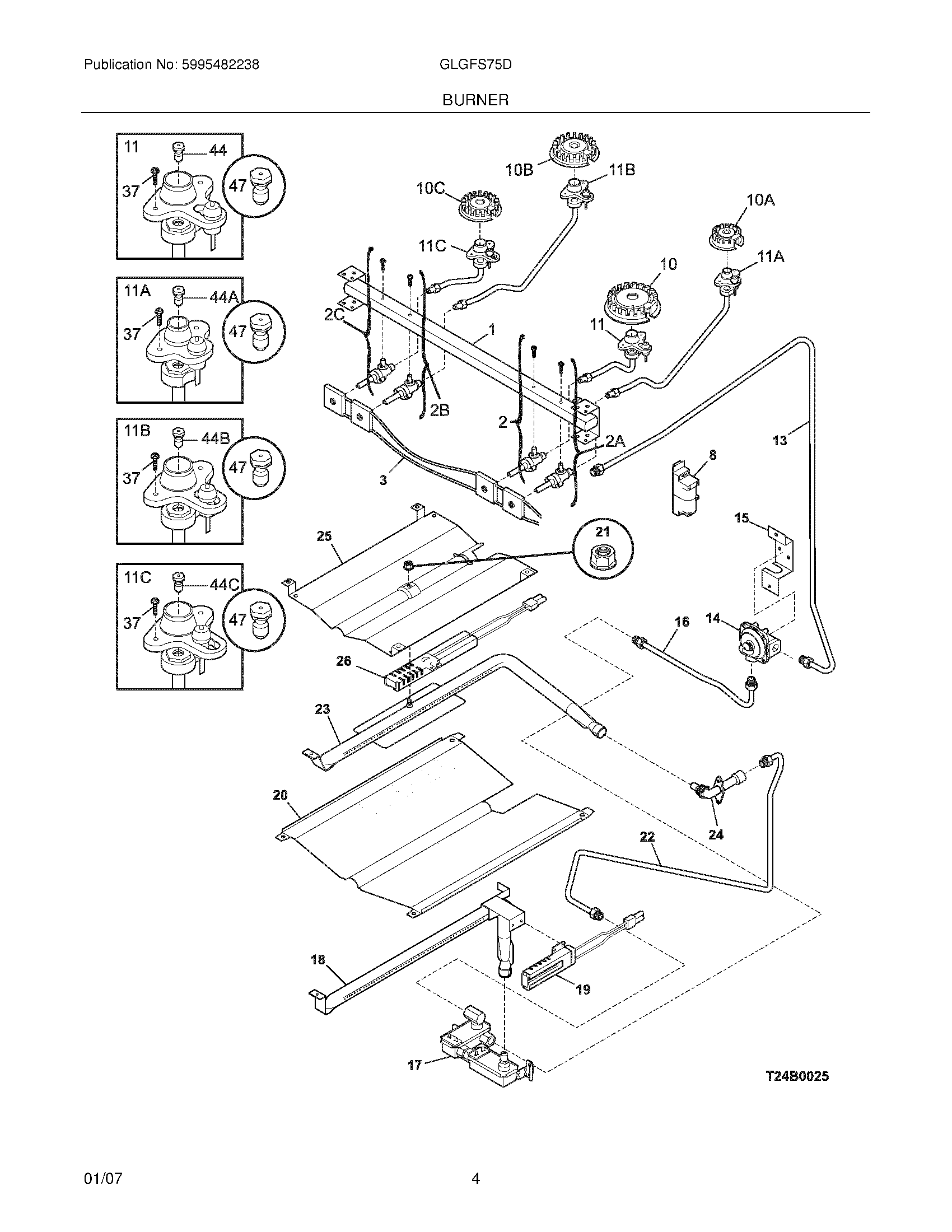

GLGFS75DQJ 05 – BURNER

Products

Position	Product
NI	316021104 Frigidaire Oven Screw Assembly
NI	316248105 Frigidaire Instructions /Lp Conversion Kit Ns
NI	316001017 Frigidaire Screw
NI	WIRING HARNESS,IGNITOR MODU
NI	WCI 08068018
NI	316401500 Frigidaire Oven Cover
NI	5303271648 Frigidaire Oven Screw
NI	316215600 Frigidaire Oven Screw
1	316417900 Frigidaire Pipe Manifold
2B	5303935232 Frigidaire Oven Valve
2	WCI 5303935236
2C	WCI 5303935234
2A	WCI 5303935235
3	IGNITOR SWITCH WIRE HARNESS
8	5304505695 Frigidaire Oven Module
10	WCI 316223400
10A	WCI 316206400
10C	316212400 Frigidaire Oven Primary Burner
10B	WCI 316212300
11C	316237805 Frigidaire Orifice Assembly Igniter
11	316272000 Frigidaire Igniter Holder and Orifice
11A	316237707 Frigidaire Igniter/Orifice Assembly
11B	WCI 316237702
13	316489100 Frigidaire Oven Tube
14	5304521339 Frigidaire Regulator
15	316091600 Frigidaire Oven Bracket
16	5304507348 Frigidaire Oven Tube
17	316404901 Frigidaire Oven Valve
18	316404400 Frigidaire Oven Burner
19	5304534663 Frigidaire Igniter
20	5304519024 Frigidaire Oven Baffle
21	5303013272 Frigidaire Oven Nut
22	WCI 316405401
23	WCI 316404300
24	5304516894 Frigidaire Oven Elbow
25	WCI 316401301
26	316489401 Frigidaire Igniter Assembly
37	316240600 Frigidaire Igniter Mounting Screw
44C	316237902 Frigidaire Orifice Top Burner
44B	316237901 Frigidaire Oven Orifice
44	316237900 Frigidaire Oven Orifice Assembly
44A	WCI 316237903
47	GRLP3 Frigidaire Oven LP Conversion Kit
