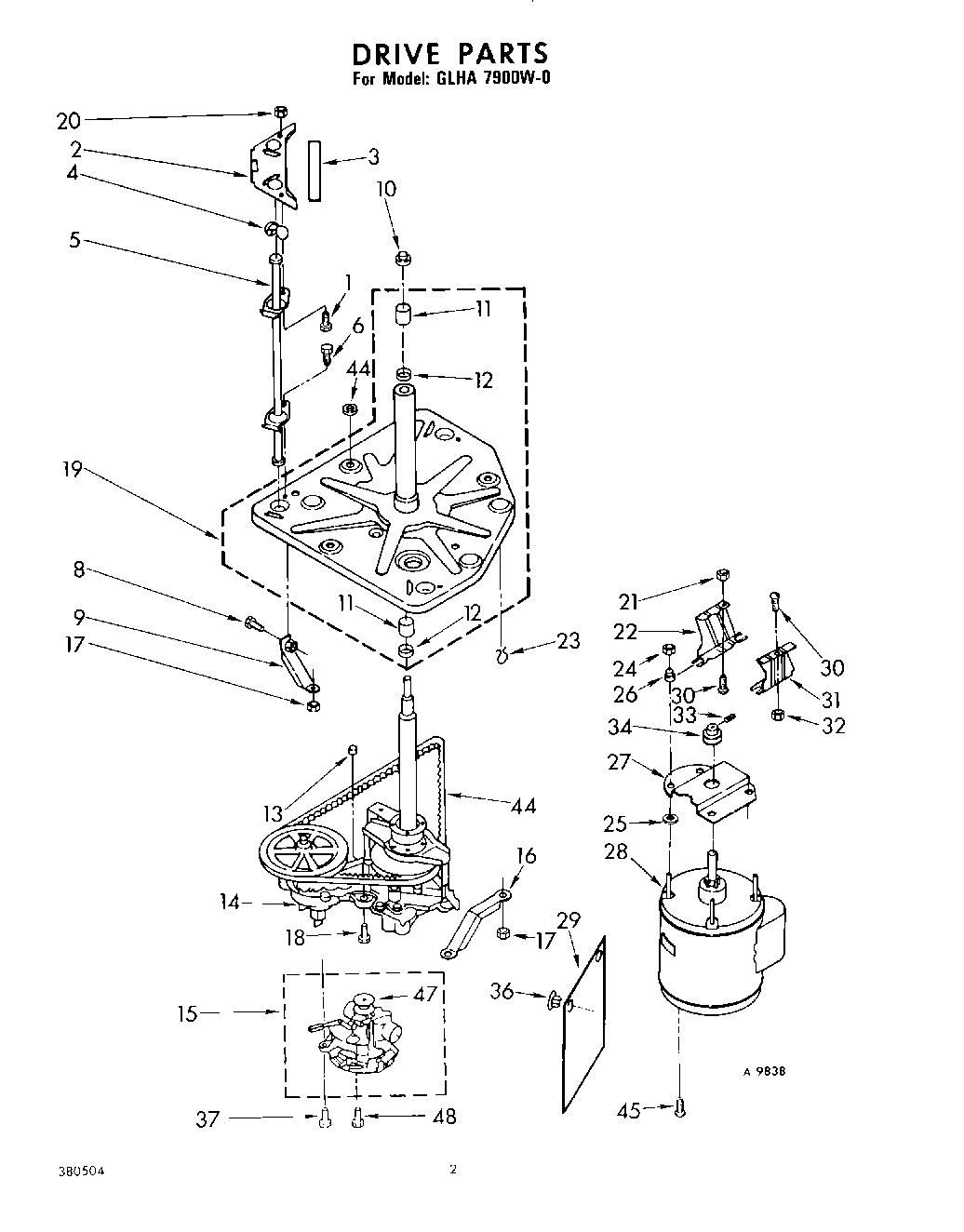

GLHA7900W0 02 – DRIVE

GLHA7900W0 02 – DRIVE

Written by

in

GLHA7900W0 02 – DRIVE

Products

PositionProduct
1Bolt, 5/16 x 1 (3)
1Bolt, Snubber (1)
1Bolt, 5/16 x 5/8 (2)
2Cover, Gusset (L.R.)
2Cover, Gusset (L.F.)
2COVER, GUSSET (R.R.)
3Pad, Gusset Cover (4)
4Ball, Suspension (6)
5Rod, Suspension (3)
6Bolt, 5/16-24
8WP3400516 Whirlpool Screw
9Brace, Baseplate
10WP8577376 Whirlpool Seal
11WP8546455 Whirlpool Bearing
11WPL 354195
12W11095997 Whirlpool Seal
13Spacer
14Gearcase Assembly (Refer To SF-342)
15350365 Whirlpool Dryer Washer Water Pump, 2-Port
16WPL 351499
16WPL 351500
17Nut, 5/16-24
18WPL 90877
19Baseplate & Centerpost
2090984 Whirlpool Nut
21WP358160 Whirlpool Nut
22Bracket, Motor Mounting
2316515 Whirlpool Clip
24Nut (4)
25WPL 92217
26Grommet, Motor Bracket (4)
27Shield, Motor (Upper)
28Motor, 50/60 Hz. (General Electric) (Start Sw
29Shield, Bottom Motor
30WPL 98537
31WPL 93549
32WPL 95721
33Setscrew, 5/16-18 x 1/2
34WPL 93219
36Boot, Retainer
37386011 Whirlpool Screw
44WP95405 Whirlpool Belt
45WP3390631 Whirlpool Screw
47Pulley, Pump (Alternate)
48Screw, Pump To Gearcase
